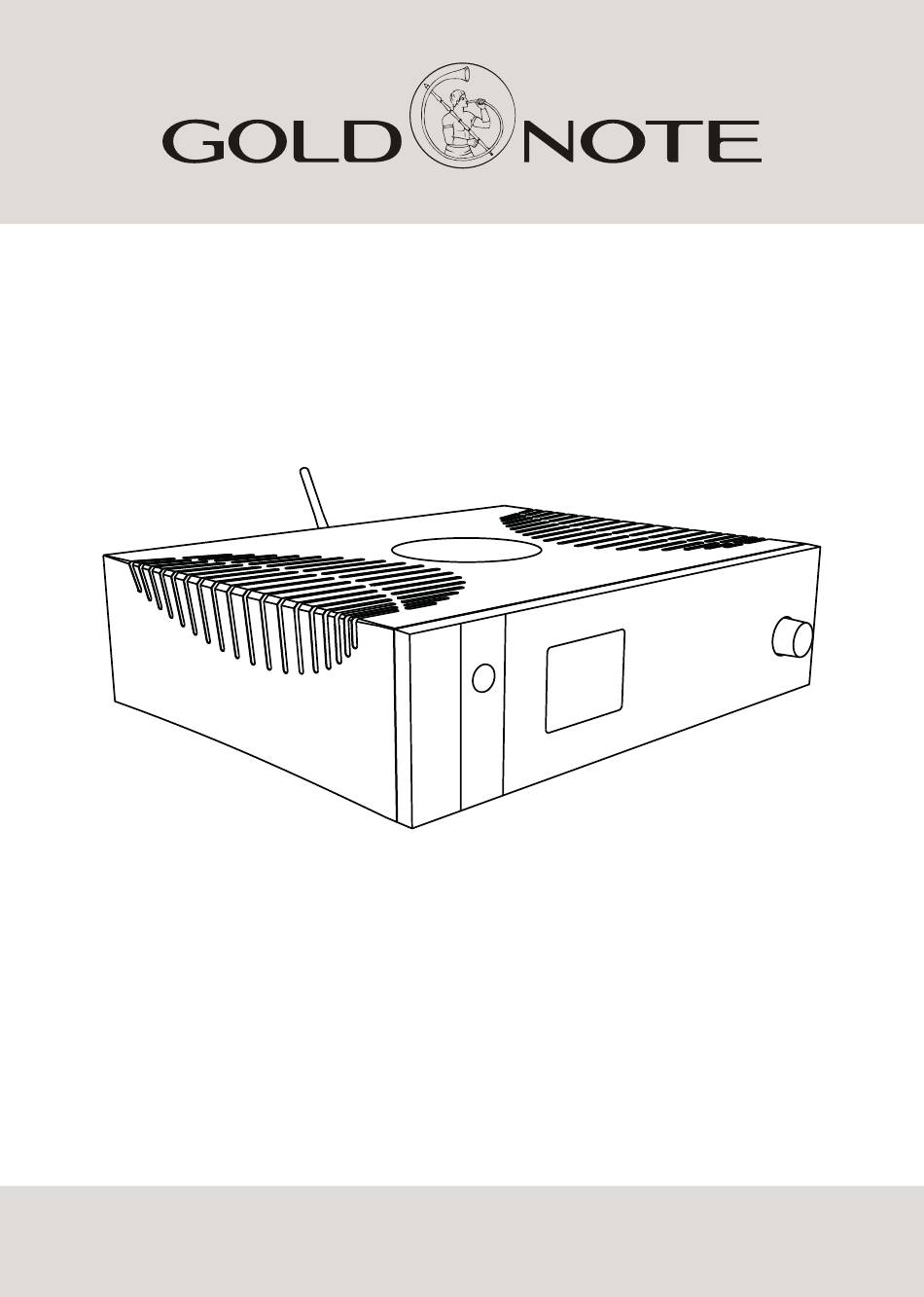

- Page 1 Italian Music Experience IS-1000 INTEGRATED AMPLIFIER & STREAMER OWNER’S MANUAL...
-
Page 2: Important Safety Information
Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc. The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel. - Page 3 IMPORTANT SAFETY INFORMATION 1 Read these instructions and store them. 9 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point 2 Heed all warnings. where they exit from the apparatus. 3 Follow the instructions. 10 Only use attachments/accessories specified by the manufacturer.
-
Page 4: Description And Specifications
The Mind of IS-1000 is the advanced streamer based on the latest amplifier with the digital technologies of a Streamer and a DAC to technology to guarantee perfect connectivity and access HQ music deliver outstanding performances. - Page 5 DESCRIPTION & SPECIFICATIONS MAIN DETAILS DIGITAL INPUTS Class A/B High-Current Mosfet Integrated Amplifier PCM up to 24bit/192kHz (125W @ 8Ω) 3 optical (TOS) High-Res Streaming TIDAL, QOBUZ, SPOTIFY, DEEEZER 1 Coaxial (COAX) Remote control via App for iOS & Android 1 USB type A (DSD64 via DoP) Airplay &...
-
Page 6: Front Panel Overview

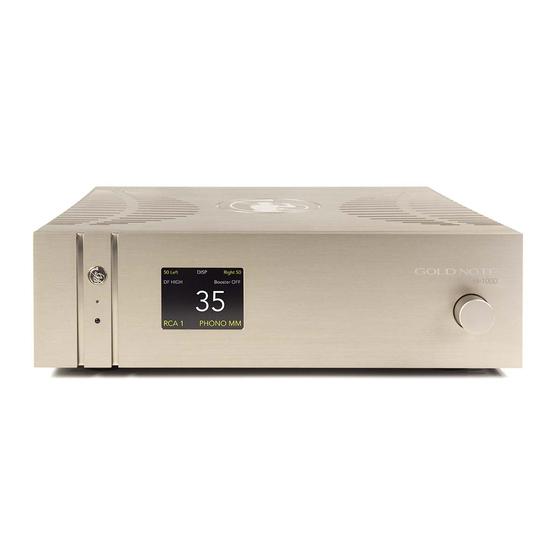

FRONT PANEL OVERVIEW IS-1000 is a true High-End integrated amplifier and offers unique features to deliver the best audio quality. Everything has been designed to provide the best experience and thanks to the exclusive SKC [Single Knob Control] the unit becomes a friendly plug-and-play source that can be fully controlled without even using the remote. -
Page 7: Display On/Off
For further details about the features and the functions, please see page 14. You will find a comprehensive guide to use IS-1000 in the most appropriate way in order to achieve the best audio performance with your loudspeakers and environment. -
Page 8: Rear Panel Overview
REAR PANEL REAR PANEL OVERVIEW IS-1000 features a wide selection of connections to offer the best versatility and become the core of a real High-End system that will deliver audio with true audiophile quality: 6 digital inputs (PCM up to 24bit/192kHz & DSD64 via DoP) -
Page 9: Quick Start
QUICKSTART QUICKSTART GUIDE IS-1000 is a Plug&Play source that simply requires only to be connected to the AC, the Internet and your speakers. 1. connect IS-1000 to your speakers via the SPEAKER OUT connectors 2. connect IS-1000 to your network via ETHERNET LAN or Wi-Fi [see page 12] 3. - Page 10 CONTROL APP DOWNLOAD THE CONTROL APP Download the Mconnect Control App from the Apple Store or the Google Play Store to get started. Scan the QR code with your device to download it ANDROID DEVICE SETUP DEVICE INFO SEEK repeat the whole track list TRACK LIST ORDER random or sequential play the whole track list once...
-
Page 11: Device Info
DEVICE NAME CHANGE rename the device on the network LAN STATIC IP ADDRESS SETUP WIFI STATIC IP ADDRESS SETUP FIRMWARE UPDATE if there is a new update for the firmware the app notifies it and let you update the IS-1000... -
Page 12: Cloud Setup
CONTROL APP CLOUD SETUP In CLOUD SETUP you can turn ON/OFF all the streaming services available on IS-1000 such as: TIDAL , QOBUZ, DEEZER, VTUNER You can also turn ON/OFF the cloud storage services, such as: DROPBOX and ONEDRIVE CLOUD SETUP... - Page 13 The IS-1000 must be connected to the same network the mobile device is using. If the App doesn't show the IS-1000 it is most likely due to the fact the mobile device is connected to a different network than the IS-1000.
- Page 14 CONTROL APP CLOUD SETUP FAVORITES Add folders and tracks to your Favorites list. The folder/tracks will be listed in the Favorites tab. You can find the Favorites tab in the bottom menu. MY PLAYLISTS New playlists can be created and edited from the Favourites tab.
-
Page 15: Network Setup
The easiest way to connect IS-1000 to your network via Wi-Fi is to use the WPS [Wi-Fi Protected Setup] function if available on you router: use the tip of a paper clip to press and hold for 10 seconds the Wi-Fi Reset button on the rear panel of IS-1000, release it when the blue led is flashing... - Page 16 In case your router doesn't feature the WPS connection, use the Wi-Fi Wizard Connection: 1. use the tip of a paper clip to press and hold for 4~5 seconds the Wi-Fi Reset button on the rear panel of IS-1000. 2. IS-1000 will create its own wireless network, when the blue led light is flashing the new network is ready 3.
-
Page 17: Features And Functions
HIGH - gives the best of a solid state amp and it's an ideal match for big speakers with mid/low sensitivity LOW - is ideal to drive high-sensitivity speakers and mini-monitor as IS-1000 will act as a low-power tube amp... -
Page 18: Using The Remote
REMOTE USING THE REMOTE IS-1000 is supplied with a Gold Note remote to help you conveniently operate the amplifier without even touching the knob located on the frontal panel. With the remote you can fully access every function just like you would when using the knob. -
Page 19: Connecting Other Sources
CONNECTING OTHER SOURCES CONNECTING SOURCES VIA ANALOGUE INPUT You can connect external audio sources to IS-1000 through the analogue input connectors located on the rear panel using the unit as a pure Integrated Amplifier. XLR BALANCED RCA 2 LINE mode: connect any audio source using... -
Page 20: Important Notes
The WiFi Interface allows the connection between the App and the IS-1000. If you are using the IS-1000 in wireless mode (connected via Wi-Fi) and wish to switch to the cable mode (LAN) simply connect the Ethernet cable using the dedicated port available on the rear panel of IS-1000. -
Page 21: Warranty And Service
WARRANTY & SERVICE WARRANTY To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused. -
Page 22: Troubleshooting
See page 17 for more information. remote. The App can't find the IS-1000 in the The IS-1000 is not connected to the Make sure the IS-1000 is connected to the WLAN or network network. LAN either with the Ethernet cable or the Wi-Fi. - Page 23 NOTES...
- Page 24 Italian Music Experience www.goldnote.it...
