Summary of Contents for Go Power GPC-35-MAX

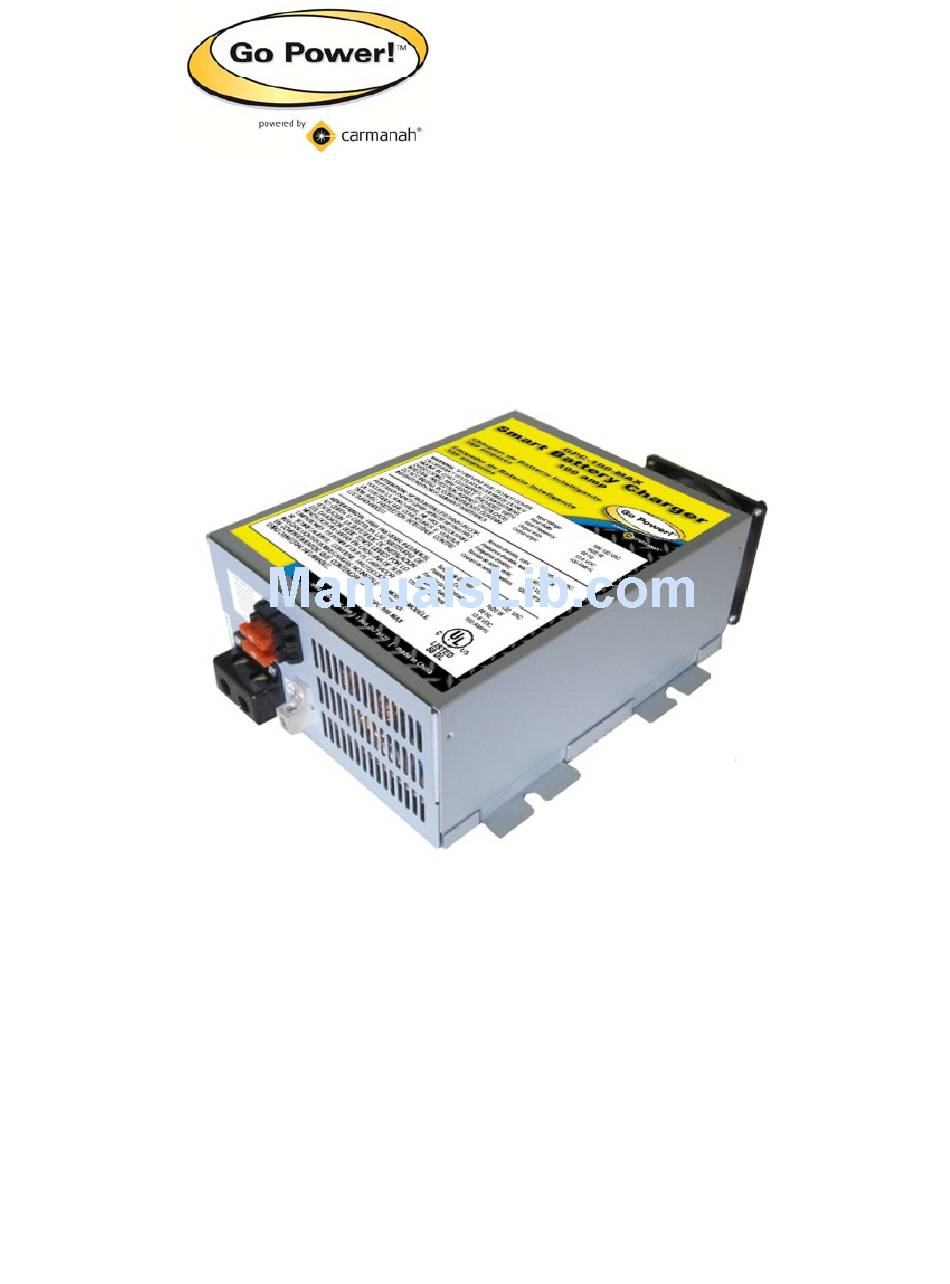

- Page 1 Smart Battery Charger GPC-35-MAX GPC-45-MAX GPC-55-MAX GPC-75-MAX GPC-100-MAX ________________________________________________ Owner’s Manual ...
- Page 2 GPC‐35‐MAX / 45‐MAX / 55‐MAX / 75‐MAX / 100‐MAX ___________________________________________________________ Table of Contents Important Safety Instructions Features Installation Guidelines Warranty 1.0 Important Safety Instructions Warning: Before you install and use your Go Power! Smart Charger/Converter, be sure to read these safety instructions. 1.1 General Safety Precautions Do not expose the GP Smart Charger to rain, snow, spray, bilge, or dust. To reduce risk of hazard do not cover or obstruct the ventilation openings.
- Page 3 GPC‐35‐MAX / 45‐MAX / 55‐MAX / 75‐MAX / 100‐MAX ___________________________________________________________ 2.0 Features The Go Power! Smart Charger (GPC) series power converter / battery charger converts 120 V nominal AC to 13.6 V DC. As a power supply, its tightly controlled regulation allows the user to operate any 12 V nominal DC load up to the converter’s rated output current.
-
Page 4: Electrical Specifications
GPC‐35‐MAX / 45‐MAX / 55‐MAX / 75‐MAX / 100‐MAX ___________________________________________________________ 2.2 Electrical Specifications SPECIFICATIONS* GPC-35-MAX GPC-45-MAX GPC-55-MAX GPC-75- GPC-100-MAX DC Output Voltage (No 13.6V (DC) 13.6V (DC) 13.6V (DC) 13.6V (DC) 13.6V (DC) Load) approx. Output Voltage Tolerance + or - .7% + or - .7% + or - .7% + or - .7%... - Page 5 GPC‐35‐MAX / 45‐MAX / 55‐MAX / 75‐MAX / 100‐MAX ___________________________________________________________ 2.6 Reverse Polarity Fuses The GPC is protected against reverse polarity on the DC output. If a battery or the GPC is hooked up incorrectly, the fuses will blow and can be easily replaced. Always use the same size and style fuse that came with the converter. To change the fuses, use a screwdriver to loosen the screws and remove the fuses.
- Page 6 GPC‐35‐MAX / 45‐MAX / 55‐MAX / 75‐MAX / 100‐MAX ___________________________________________________________ change the fuses, use a screwdriver to loosen the screws and remove the fuses. Always replace the fuses with the same type and rating. After inserting the new fuses, tighten the screws firmly. DO NOT OVERTIGHTEN. 4.0 Charge Controller Options 4.1 GPC Charging The optional GPC allows the GPC to operate as an automatic three-stage smart charger giving the customer the benefit of a Bulk, Absorption, and Float stage...
- Page 7 GPC‐35‐MAX / 45‐MAX / 55‐MAX / 75‐MAX / 100‐MAX ___________________________________________________________ 4.1.5 Voltages The charging voltages used to charge the battery during the three stages differ depending on the voltage of the battery being charged. If you need to know the various voltages, you can calculate them as follows: Determine the number of cells your battery has.
- Page 8 GPC‐35‐MAX / 45‐MAX / 55‐MAX / 75‐MAX / 100‐MAX ___________________________________________________________ 5.0 Warranty 5.1 Go Power!™ 2 Year Limited Warranty Go Power!™ provides the following limited 2 year warranty (“warranty”) coverage as applicable to the purchaser (“Purchaser”) of the Go Power!™ branded product (“Product”) directly from Go Power!™ The following constitutes the terms and conditions of that limited warranty.
- Page 9 GPC‐35‐MAX / 45‐MAX / 55‐MAX / 75‐MAX / 100‐MAX ___________________________________________________________ Failure due to normal wear and tear of the Product. Failure caused by separate computer software supplied with or associated with a Go Power!™ Product. Failure due to fire, water, neglect, improper installation, generalized corrosion, biological infestations, or input voltages that create operating conditions beyond the maximum or minimum listed in the Go Power!™...
- Page 10 GPC‐35‐MAX / 45‐MAX / 55‐MAX / 75‐MAX / 100‐MAX ___________________________________________________________ The Warranty set out above is the sole warranty granted by Go Power!™ with respect to the Product. No oral understanding, representations or warranties shall be of any effect and Go Power!™ makes no further warranties, express or implied concerning the Go Power!™ Products other than the Warranty set out above.
- Page 11 GPC‐35‐MAX / 45‐MAX / 55‐MAX / 75‐MAX / 100‐MAX ___________________________________________________________ 5.4 Out of Warranty Items Go Power!™ electronic products are non-repairable, Go Power!™ does not perform repairs on its products nor does it contract out those repairs to a third party. Go Power!™ does not supply schematics or replacement parts for any of its electronic products.
- Page 12 GPC‐35‐MAX / 45‐MAX / 55‐MAX / 75‐MAX / 100‐MAX ___________________________________________________________ © 2011 GO POWER!™ By Carmanah Technologies www.gpelectric.com MOBI_MAN_GPC_vB_Dec2011 12 ...
