- Page 1 INVERTER/CHARGER User Manual GP-IC-2000 GP-IC-3000 © 2022 Go Power! Worldwide Technical Support and Product Information gpelectric.com Go Power! | Dometic 201-710 Redbrick Street Victoria, BC, V8T 5J3 Tel: 1.866.247.6527 79497_MANUAL_GP-IC-Series_RevI...
- Page 2 Combined with the numerous DC power systems Go Power! manufactures and sells, the IC Series allows you to enjoy the luxuries that electricity provides, with or without a campsite hookup. This manual will aid in the process of installing the Go Power! IC Series Inverter/ Charger.
- Page 3 CONTENTS GENERAL INFORMATION ........................... 4 2.1 CAUTIONS/WARNINGS ........................DISCLAIMERS .....................................7 IC SERIES KIT PARTS...................................7 2.3.1 PARTS CHECKLIST ................................7 UNIT FEATURES ..................................8 UNIT DIMENSIONS ...................................10 UNIT ACCESSORIES ..................................11 INSTALLATION TOOLS AND MATERIALS ...........................11 INSTALLATION ..............................12 TYPICAL INVERTER/CHARGER SYSTEM OVERVIEW ........................12 LOCATION AND ENVIRONMENTAL REQUIREMENTS .......................
- Page 4 2. GENERAL INFORMATION 2.1 CAUTIONS/WARNINGS This document contains important safety instructions for the products produced by Go Power! Read all instructions and cautionary markings on the product and on any accessories or additional equipment included in the installation. Failure to follow these instructions could result in severe shock or possible electrocution.
- Page 5 GENERAL INFORMATION Personal Safety Use safe lifting techniques when lifting this equipment as recommended by the Occupational Safety and Health Association (OSHA) or other local codes. Use standard safety equipment when working on this equipment, such as safety glasses, ear protection, steel-toed safety boots, safety hard hats, etc. Use standard safety practices when working with electrical equipment.
- Page 6 If a battery must be removed, always remove the grounded terminal from the EDWWHU\ À U VW0DNHVXUHDOOGHYLFHVDUHGHHQHUJL] H GRUGLVFRQQHFWHGWRDYRLG causing a spark. Use the battery types recommended by Go Power!. Follow the battery manufacturer’s recommendations for installation and maintenance. Insulate batteries as appropriate against freezing temperatures. A discharged battery will freeze more easily than a charged one.
- Page 7 RV technician or professional electrician to ensure adherence to relevant electrical codes. We have made every reasonable effort to ensure the accuracy of the instructions in this manual, but Go Power! does not guarantee that the information is error free, nor do we...

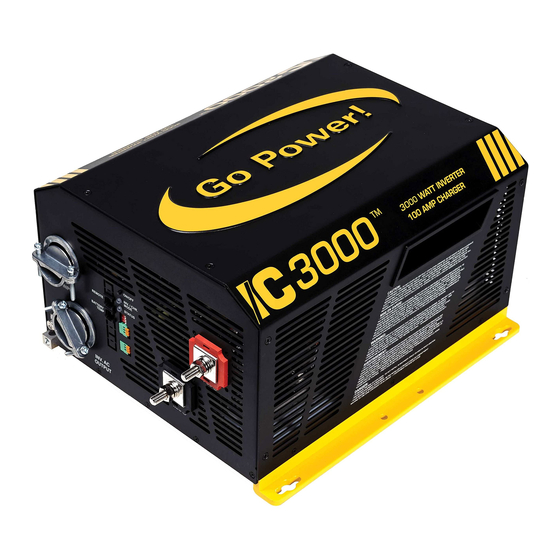

- Page 8 GENERAL INFORMATION 2.4 UNIT FEATURES Power Inverter/Charger Status LED Switches ON/OFF Switch Mode Intake Air Vents (and on right side) Positive (+) ON/OFF DC Terminal INV. / CHR. MODE REMOTE STATUS Negative (-) DC Terminal BATTERY AC INPUT TEMP Mounting AC Entry/Exit Flange Terminals...
- Page 9 GENERAL INFORMATION Built-in Handles INPUT INPUT AC Input Circuit Exhaust Air Vents 6HULDO1XPEHU AC Access Cover (Back side) Breakers /DEHO 3OHDVHQRWH/DEHOVKRZ Q LVIRUD* 3 , & 3OHDVHUHIHUWRWKHODEHORQ\ R XU, Q YHUWHU&KDUJ H UIRUDFFXUDWHLQIRUPDWLRQ Dip Switches - Reserved for future use. Exhaust Air Vents - These cut-outs are used as ventilation openings.
- Page 10 GENERAL INFORMATION 2.5 UNIT DIMENSIONS 13.6” (346mm) 2” (51mm) 4.9” (124mm) 4.9” (124mm) .28” (7mm) .51” (13mm) 12” (304mm) 12.6” (321mm) 14.9” (378mm) 13.7” (349mm) CAUTION: • TO PREVENT FIRE, DO NO T COVER OR OBSTRUCT VENTILA TION OPENINGS. DO NO T MOUNT IN Z E RO-CLEARANCE COMP AR TMENT .
- Page 11 GENERAL INFORMATION 2.6 UNIT ACCESSORIES ® The IC Series Inverter/Charger has two accessories available: INVERTER SHORE POWER ON/OFF UNIT READINGS UNIT SETUP CHARGER REMOTE SETTINGS ON/OFF • IC Series remote (not included). • Battery temperature sensor (included). ENTER / SET BACK IC Series Remote This remote control device can be used for monitoring the performance of the unit.
- Page 12 The following diagrams on pages 12-15 show how the IC Series is typically installed in a mobile RV application. The diagrams show where the Inverter/Charger is installed and how the mobile power system can be integrated with a Go Power! RV Solar Kit (sold separately by Go Power;...
- Page 13 C a b le to IC Series gpelectric.com | [page 13]...
