TECHNICAL HANDBOOK

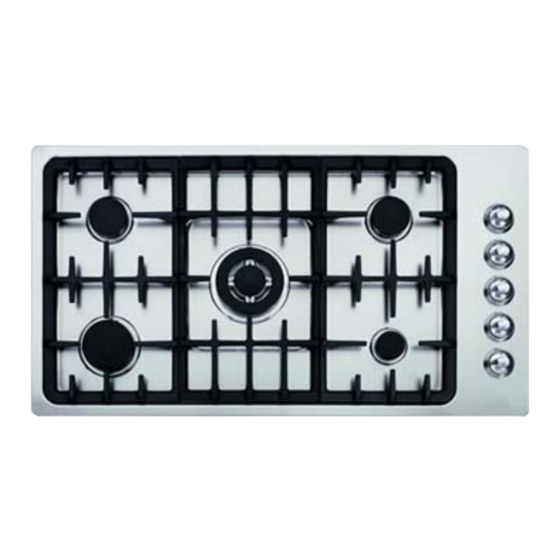

SUKEN 4 /5 BURNER HOOB
PRI54GAVTC SATIN FINISH STAINLESS STEEL 6691615
dimension 970x530 cut out 930x490
Table of contents
User's instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hob cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .
TO HAVE ACCESS TO THE FUNCTIONAL COMPONENTS . . . .
Exploded view
PRI54GAVTC
SPARE PARTS PRI54GAVTC
Exploded view
PRI54GAVTC
SPARE PARTS PRI54GAVTC
UPDATED 03.2006
User's instructions
Igniting the burners
In these models the knob controls both ignition and the safety device. Proceed as follows to ignite the burners:
1) Turn the chosen knob.
HOB PRI5 4GAVTC XS C UK
1
Advertisement
Related Manuals for Franke PRI54GAVTC
Summary of Contents for Franke PRI54GAVTC
- Page 1 TECHNICAL HANDBOOK HOB PRI5 4GAVTC XS C UK SUKEN 4 /5 BURNER HOOB PRI54GAVTC SATIN FINISH STAINLESS STEEL 6691615 dimension 970x530 cut out 930x490 Table of contents User's instructions ........
- Page 2 - All parts made of 18/10 stainless steel will remain just like new if they are cleaned with water and then carefully dried. - To restore their original gloss they should be periodically cleaned using "Franke inox Creme" and "Franke microfibre cloth" available from your retailer or from a FRANKE Service Center.
- Page 3 - If the appliance has a cover make sure the burners are cool before closing the cover. - Close the gas supply valve when the hob is not being used. Franke S.p.A. declines all responsibility for harm to persons or property caused by failure to comply with standards. This appliance can only be used for cooking.
- Page 4 Preparing the cabinet IMPORTANT: The Franke low-profile hob requires a worktop with a thickness of at least 40 mm. If the worktop is lower than 40 mm, for a correct installation put special shims near the hooks.
- Page 5 Check for leaks after making the gas connection Room ventilation Make sure there are permanent openings to the outdoors in the room where the appliance is installed or vent ducts that permit a proper flow of air. All openings that are made must: 1) have a minimum 100 cm2 cross-section area;...
- Page 6 • The law requires the hob to be connected to an efficient ground system. The cable's ground conductor is coloured yellow/green and must never be interrupted. Make sure the ground system is efficient before making electrical connections. • Franke S.p.A. declines all responsibility for any damage to persons or property caused by failure to comply with these standards.
- Page 7 TO HAVE ACCESS TO THE FUNCTIONAL COMPONENTS To have access to the functional components, the part below the hob must be easily accessible: any other domestic appliances (i.e. oven, dishwasher, etc.) should be therefore removed in advance. Having done so, it becomes possible to unscrew the hob’s brackets. Once the brackets have been loosen, move them towards the inside of the hob, remove pan stands, burner caps and burners and lift the hob to remove it from its place.
- Page 9 PRI54GAVTC 1981100 CONICAL MICRO DRIVE SPRING 1981469 FIXING CONICAL MICRO SPRING...
- Page 10 PRI54GAVTC 6691615 POS. CODE DESCRIPTION QUANTITY 1980773 BURNER IGNITION GENERATOR 1981102 TERMINAL BOARD 1980042 POWER CABLE 1981337 MEDIUM BURNER INJECTOR HOLDER 1981336 AUXILIARY BURNER INJECTOR HOLDER 1981338 RAPID BURNER INJECTOR HOLDER 1981562 TRIPLE RING BURNER INJECTOR HOLDER 1981404 HOSE FOR CONNECTING TO THE AUXILARY BURNER...
- Page 11 PRI54GAVTC...
- Page 12 PLASTIC SATIN BEZEL FOR MEDIUM RIGHT BURNER 1981942 PLASTIC SATIN BEZEL FOR MEDIUM LEFT BURNER 1981944 PLASTIC SATIN BEZEL FOR TRIPLE RING BURNER 1981945 PLASTIC SATIN BEZEL FOR RAPID BURNER 1981943 PLASTIC SATIN BEZEL FOR AUXILIARY BURNER 1981173 REDUCER FOR AUXILIARY BURNER 1982120 WORK TOP PRI54GAVTC...
