Epson Stylus CX3100 Service Manual page 78

Hide thumbs Also See for Stylus CX3100:

Table of Contents

EPSON Stylus CX3100/3200

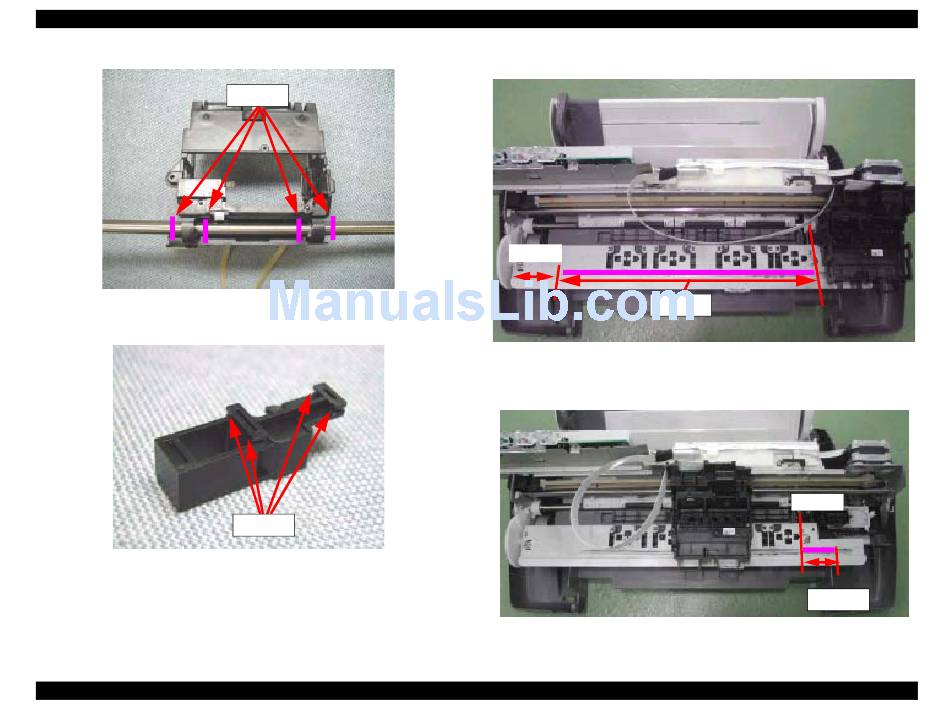

Figure 6-2. Lubrication Points of the Printer 1

Figure 6-3. Lubrication Points of the Printer 2

Maintenance

G-58

30 mm

Figure 6-4. Lubrication Points of the Printer 3

Figure 6-5. Lubrication Points of the Printer 4

Overview

Revision A

G-58

20 mm

G-58
