Installation Instructions - Waterline Technology AlwaysFresh H2O AP-UCBS-KIT Installation & Operating Instructions Manual

Under cabinet plumbed-in beverage system with programmable clock/timer and lighted display

Table of Contents

WARNING: Read these installation instructions completely before connecting this brewer to a power supply or water supply. The

water tank must be filled with water for this brewer to function properly.

WARNING: Incorrect installation or operating procedures will void the warranty and may damage this brewer.

Note: Any changes to the internal plumbing or wiring of the building should be performed by a licensed plumber or a licensed

electrician. Check applicable building codes and requirements for procedures and restrictions that may apply during this installation.

This appliance is designed to be mounted to the underside of a kitchen wall cabinet near a convenient source of water and

power with a minimum of 15" & a maximum of 19.5" height of space between counter and cabinet. (see optional pot sizes

under accessories on page 17. Medium pot included requires a minimum of 18" and a maximum of 19.5".

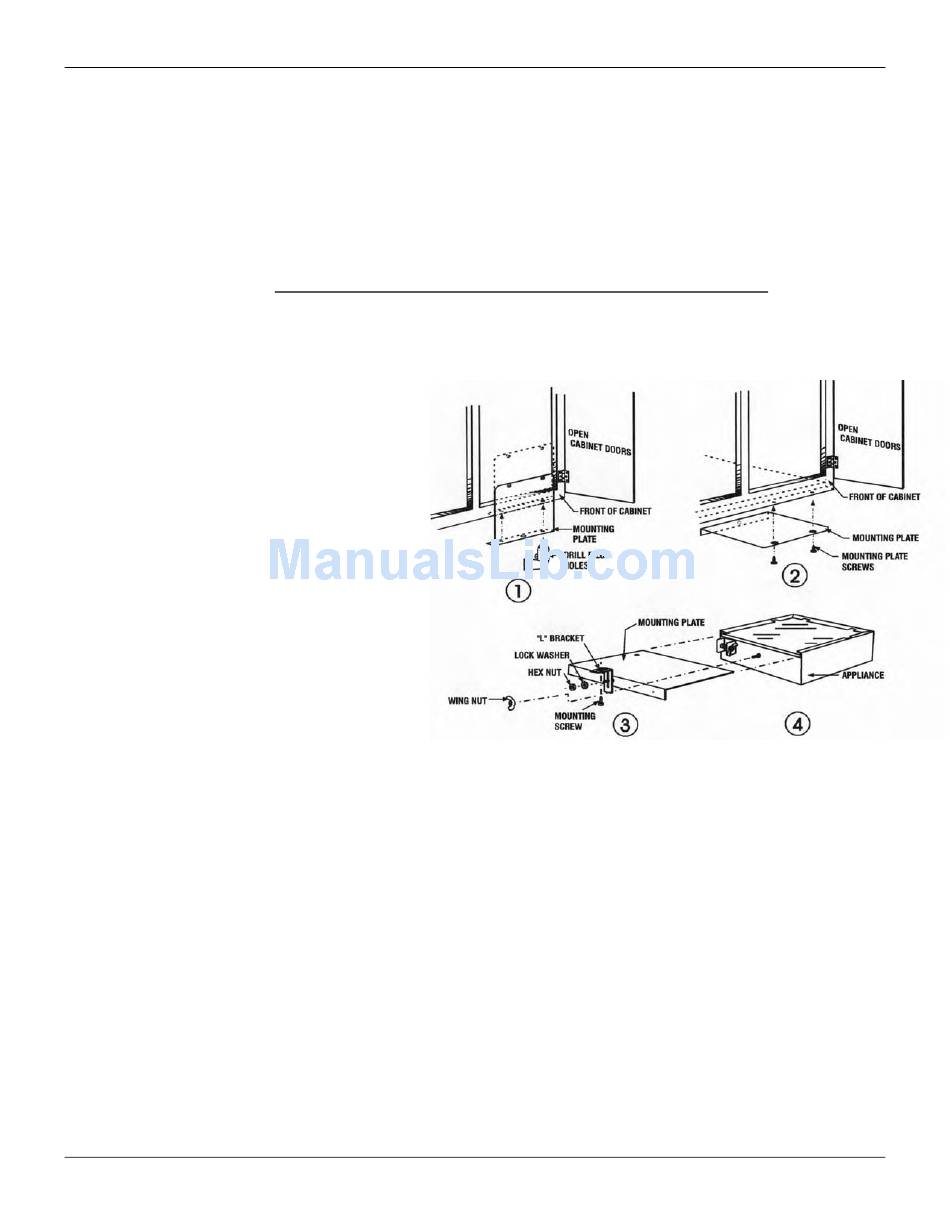

MOUNTING: (See Mounting Diagram below for Details)

Check the contents of the package carefully. In addition to the brewer and these instructions, the following items should be

present. If any item is missing, contact Waterline to

arrange for a replacement.

Built-In Brewer Appliance – Part No.1033520WL

Stainless Steel Carafe – Part No. AP-POT-MED

Mounting Brackets and Screws

Coffee Filters – Part No. 6000415WL

Plastic Polyethylene Tubing - 25 feet

Silicone Trivet – Part No. 9920564

Quick Reference Guide – ParNo.9600276WL

Instructions & Warranty Information

SET UP: (See Fig. 2)

TO INSTALL THE APPLIANCE PROPERLY,

FOLLOW DIRECTIONS BELOW AND FIGURE 2.

NOTE: TO AVOID POSSIBLE DAMAGE TO THE

CABINET, MAKE SURE TO USE THE MOUNTING

PLATE AS A TEMPLATE TO DRILL THE TWO (2)

3/32" DIA. PILOT HOLES.

a) Determine the desired location of the appliance.

b) Remove the brew cone from the appliance and remove the wing nut (See Fig. 2, Illus. #3) from the lower mounting screw

and slide the mounting plate out from the rear of the appliance.

c) Loosen, but do not remove, the nut holding the "L" bracket to the rear of the mounting plate while holding the mounting

plate in place flush along the bottom edge of the cabinet facing (See Fig. 2 Illus. #1), drill two (2) 3/32" Dia. pilot holes on

the cabinet using the 2 holes provided on the mounting plate flange. This assures that the mounting screws will go in

easily and not damage the cabinet.

d) After drilling the two (2) pilot holes, hold the mounting plate in place (Fig. 2, Illus. #2), install two (2) screws through the

holes provided at the front edge of the mounting plate and tighten. This will mount the front of the mounting plate.

e) While holding the mounting plate level, hold mounting "L" bracket up against the bottom of the cabinet and mark the

location of the rear mounting screw through the slot in the "L" bracket. Drill a 3/32" pilot hole at the marking to assure that

the mounting screw will go in easily and not damage the cabinet. Install the mounting screw through "L" bracket, at the

location marked.

Hold the mounting plate level; tighten the nut to hold the rear of the mounting plate in place.

g) Slide the appliance onto the mounting plate making sure the attachment screw on the rear of the appliance fits into the slot

on the "L" bracket. Attach the wing nut to hold the appliance in place. Level the appliance and tighten the wing nut.

Note: Make sure the appliance is level. If the appliance is not level, loosen the top mounting nut and level the appliance.

Tighten nut.
