CONTROL LOCATIONS AND DESCRIPTIONS
1. "+" Button
Press to adjust the clock (hr) and or adjust the time (hr) for
"Brew Start Time".
2. "-" Button
Press to adjust the time (min.) and or adjust the time (min.) for
"Brew Start Time".
3. Program Button.
Press this button to change the time and selection settings.
4. Power Light.
When lit, indicates unit is in ON.
5. Quarter Brew Selection Light
Will light when Quarter Brew selection is pressed or flash
when selection is in program mode.
6. Quarter Brew Selection Button
Press this button to select Quarter Brew selection to brew
coffee.
7. Half Brew Selection Light.
Will light when Half Brew selection is pressed or flash when
Half Brew selection is in Program Mode.
8. Half Brew Selection Button
Press this button to select Half Brew selection to brew coffee.
9. Full Brew Selection Button
Press this button to brew a full carafe or decanter
10. Full Brew Selection Light
Will light when Full Brew selection is pressed or flash when
Full Brew selection is in Program Mode.
11. "Service" Light
Indicates problem with the machine and service is required.
12. Display Window
Displays the time in hours, minutes and program information
13. Brew Cone Guide Rails
Slide the brew cone in here.

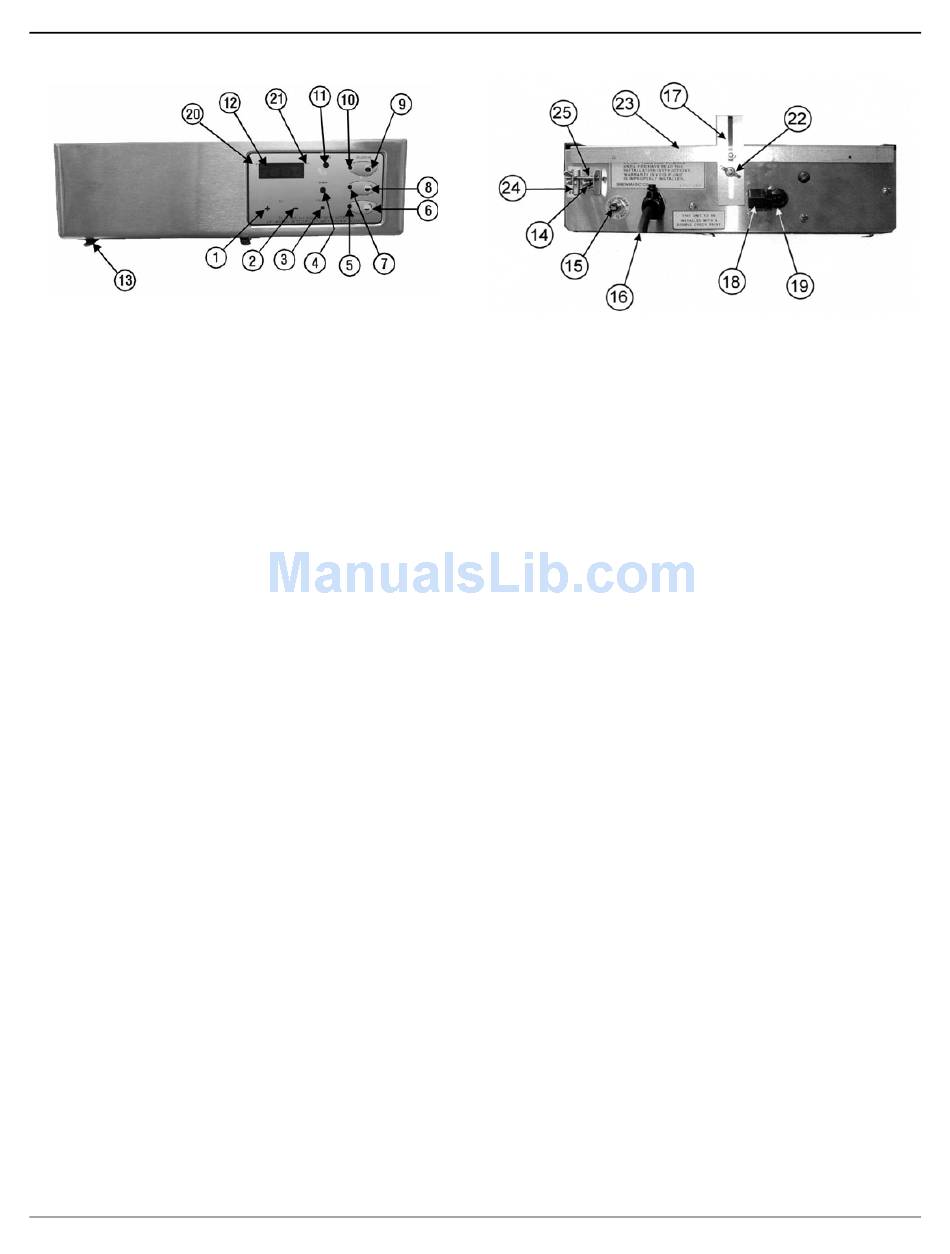

Fig. 1
14. Toggle Switch (On-Off-Fill)
Turns ON the power to the coffee appliance and fills the tank
prior to use.
15. Circuit Breaker
Breaks the power to the machine.
16. Power Supply Cord
Connect this cord to appropriate wall receptacle.
17. Rear Mounting Bracket
Holds the rear of the machine
18. Plastic Nut Fitting
Insert the plastic water supply tubing here. (See item #26)
19. Plastic Water Inlet Elbow Fitting
The incoming tube polyethylene (water supply) connects
here.
20. LIGHT Dot Display ("PM" Indicator)
When lit, indicates time is past 12 O'clock in afternoon.
21. LIGHT Dot Display "Brew time SET" Indicator
Will light when a "Brew time" is Set.
22. Wing Nut
Secures the machine to the "L" bracket
23. Top Mounting Plate
Secure this to the underneath the cabinet.
24. Safety Bracket
Prevents the user from dry firing when the screw is in place
during installation.
25. Safety Screw
Prevent the toggle switch from being pushed up before filling
the tank with water.
26. Plastic Tubing (Polyethylene) NOT SHOWN – 1/4" OD
Tubing supplied is 25', cut to appropriate length before
connecting to water inlet.
