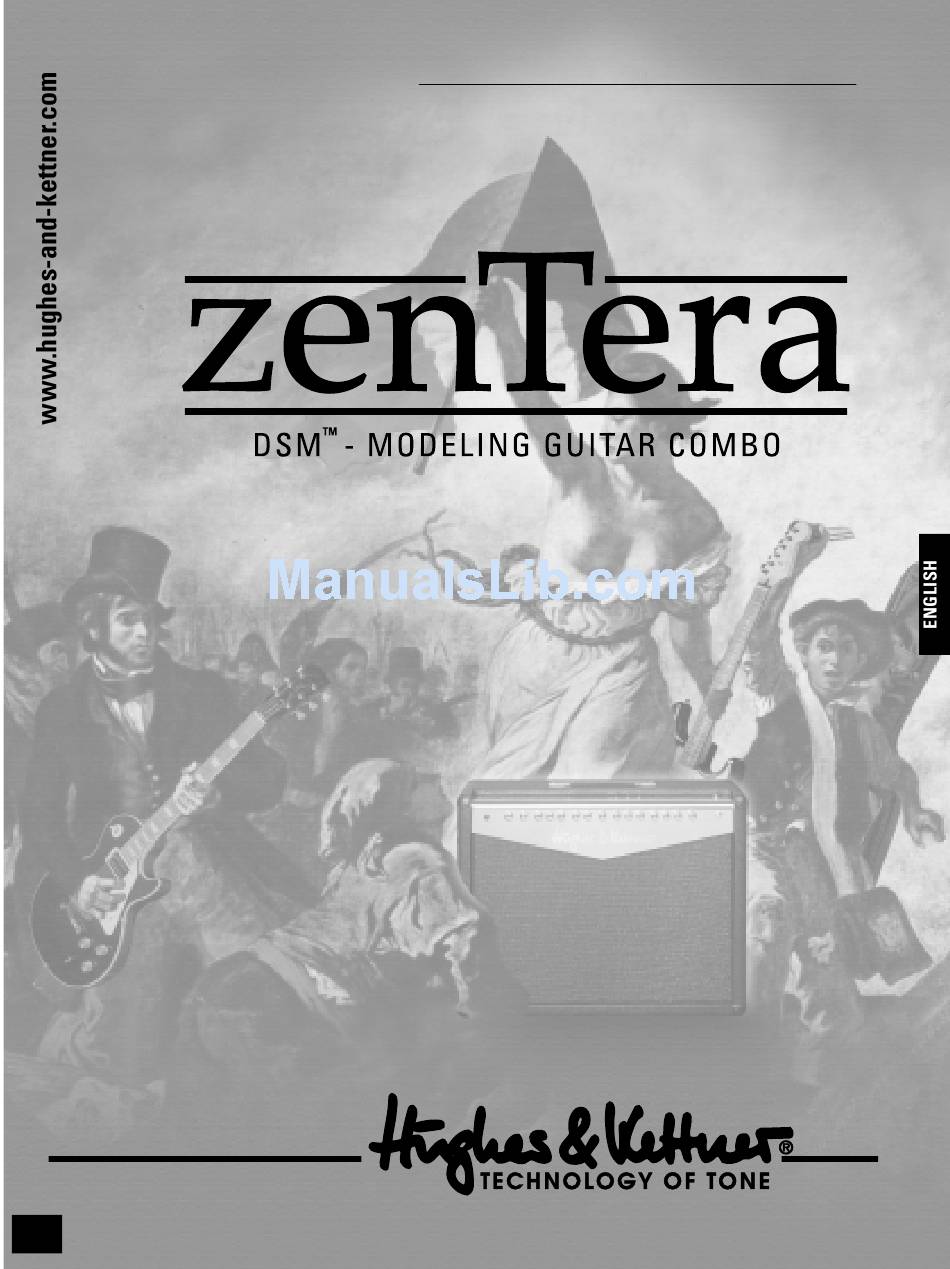

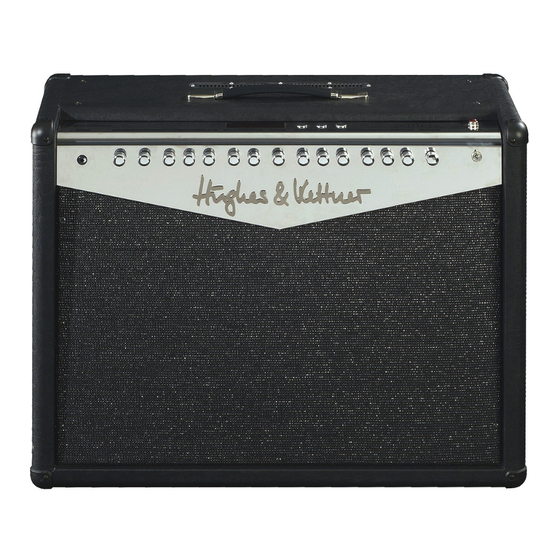

  • Page 1 BEDIENUNGSANLEITUNG MANUAL...

  • Page 2: Table Of Contents

    But that's not all: In the engine room of the zenTera one but two of the latest-generation 32-bit floating point DSPs. Their computing power is what translates the technology of DSM soul-stirring, to-die-for tone. Furthermore, they guarantee that the zenTera ®...

  • Page 3: Quick Start Guide Or Operating Manual

    '90s, it has since become the tool of choice for New Metal merchants. And with good reason, for few other amps can match its intensity and depth of musical expression, particularly for soloing. ACOUSTIC AMP This is the DSM acoustic amp. : CLICK : DOUBLE-CLICK ®...

  • Page 4: Effects

    ZENTERA - MANUAL JAZZ CLEAN This amp type is based on a Hughes & Kettner rig that debuted back in the '80s, specifically the clean channel of the ATS 112, which many jazz guitarists still consider a benchmark for this style. 3.2 EFFECTS The zenTera ®...

  • Page 5: Jacks And Control Features In Detail

    ZENTERA-MANUAL INPUT GAIN AMP TYPE BASS 5.3 JACKS AND CONTROL FEATURES IN DETAIL FRONT PANEL INPUT: Connect your electric guitar or pick-up-equipped acoustic guitar to this input (it accepts all input levels). GAIN : This knob serves different purposes depending on the selected amp type: Some of the original models (BLACK FACE, TWEED DELUXE) don't come with a master volume.
  • Page 6 ZENTERA - MANUAL INPUT GAIN AMP TYPE BASS TYPE: This knob lets you dial in an effect (a chorus, a flanger and so forth). It actually serves two purposes: Turn the knob to select from among the different modulation, delay and reverb effects depending on which effect block is currently active (to find out which effects you have available, check out the following example table and the tables in the appendix under 11.1).

  • Page 7: Rear Panel

    ZENTERA-MANUAL MAINS IN + VOLTAGE SELECTOR: REPLACE FUSES ONLY WITH SAME TYPE + RATING 230 V~ = T 2.5 A 100 V~ = T 6.3 A M A D E I N S T . W E N D E L / G E R M A N Y 117 V~ = SB 5 A 50 - 60 HZ CAUTION!

  • Page 8: Special Functions

    ZENTERA - MANUAL 6.0 SPECIAL FUNCTIONS 6.1 PRE EFFECT MODE The following effects are available to you in this mode (see also the table INS-FX in the appendix under 11.1). Unlike the other effects found in the effect section, the only signal routing option for these effects is PRE, in other words, in front of the input: Wah Wah: '60s vintage wah-wah Wah Wah 2: contemporary wah-wah with more bottom end...

  • Page 9: Store (Name)

    ZENTERA-MANUAL 6.4 STORE (NAME): Press STORE to save preset settings. The indicator in the display will flash. Then select the desired memory slot for the preset by means of PRESET knob. In order to name the preset, use and select the desired letters, numbers or symbols from the available font.

  • Page 10: Read Values

    ZENTERA - MANUAL sound that you had been using would be available again with- out having to dial it in again in the event of a power outage or similar mishap. You can choose the preferred alternative in the system menu of ®...

  • Page 11: Volume Pedal

    ZENTERA-MANUAL Turn TYPE until FOOTSWITCH ASSIGN appears in the display. Select UP, DWN or TGL using the PARA 1 or If you opt for the TOGGLE function, see section 6.5 above for further instructions. 7.13 VOLUME PEDAL This menu lets you determine at which point in the signal chain a connected volume pedal or the volume pedal of the optionally available Z-Board regulates the amp’s level.

  • Page 12: Table: Effects And Effect Parameters

    ZENTERA - MANUAL ® E2) The zenTera is cabled up and connected properly, but no sound is audible. • One or more of the volume knobs or the master knob is/are turned all the way down. Dial in higher settings. •...

  • Page 13: Midi Implementation Chart

    ZENTERA-MANUAL 11.2 MIDI IMPLEMENTATION CHART Manufacturer: Hughes & Kettner 1. Basic Information MIDI channels Note Numbers Program Change Bank Select Response? (Yes / No) If yes, list banks utilized in remarks column Modes supported: Mode 1:Omni-On, Poly (Yes/No) Mode 2:Omni-On, Mono (Yes/No) Mode 3:Omni-Off, Poly (Yes/No) Mode 4:Omni-Off, Mono (Yes/No) Multi Mode (Yes/No)
  • Page 14 ZENTERA - MANUAL Manufacturer: Hughes & Kettner Controller # Function Bank Select (MSB) Modulation Wheel (MSB) Breath Controller (MSB) Foot Controller (MSB) Portamento Time (MSB) Data Entry (MSB) Channel Volume (MSB) Balance (MSB) Pan (MSB) Expression (MSB) Effect Control 1 (MSB) Effect Control 2 (MSB) General Purpose Controller 1 (MSB) General Purpose Controller 2 (MSB)
  • Page 15 ZENTERA-MANUAL Manufacturer: Hughes & Kettner Controller # Function Sustain Pedal Portamento On/Off Sostenuto Soft Pedal Legato Footswitch Hold 2 Sound Controller 1 Sound Variation Sound Controller 2 Timbre Sound Controller 3 Release Time Sound Controller 4 Attack Time Sound Controller 5 Brightness Sound Controller 6 Decay Time Sound Controller 7 Vibrato Rate Sound Controller 8 Vibrato Depth...

  • Page 16: Ac Power And The Global Current Adapter

    ZENTERA - MANUAL 11.3 AC POWER AND THE GLOBAL CURRENT ADAPTER NOTE: Before plugging into the wall socket, make certain the amp is set to the proper voltage for your locale. You can read the amp's voltage setting in the Voltage Selector window found on the back of the unit.
