Westermo EDW-100 User Manual

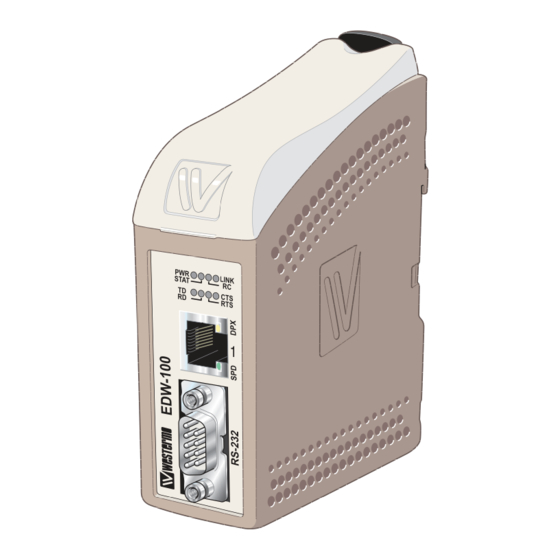

Serial adapter
Hide thumbs Also See for EDW-100:
Table of Contents

Advertisement

Quick Links

User Guide
6616-2202
EDW-100
Serial Adapter
www.westermo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDW-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westermo EDW-100

Summary of Contents for Westermo EDW-100

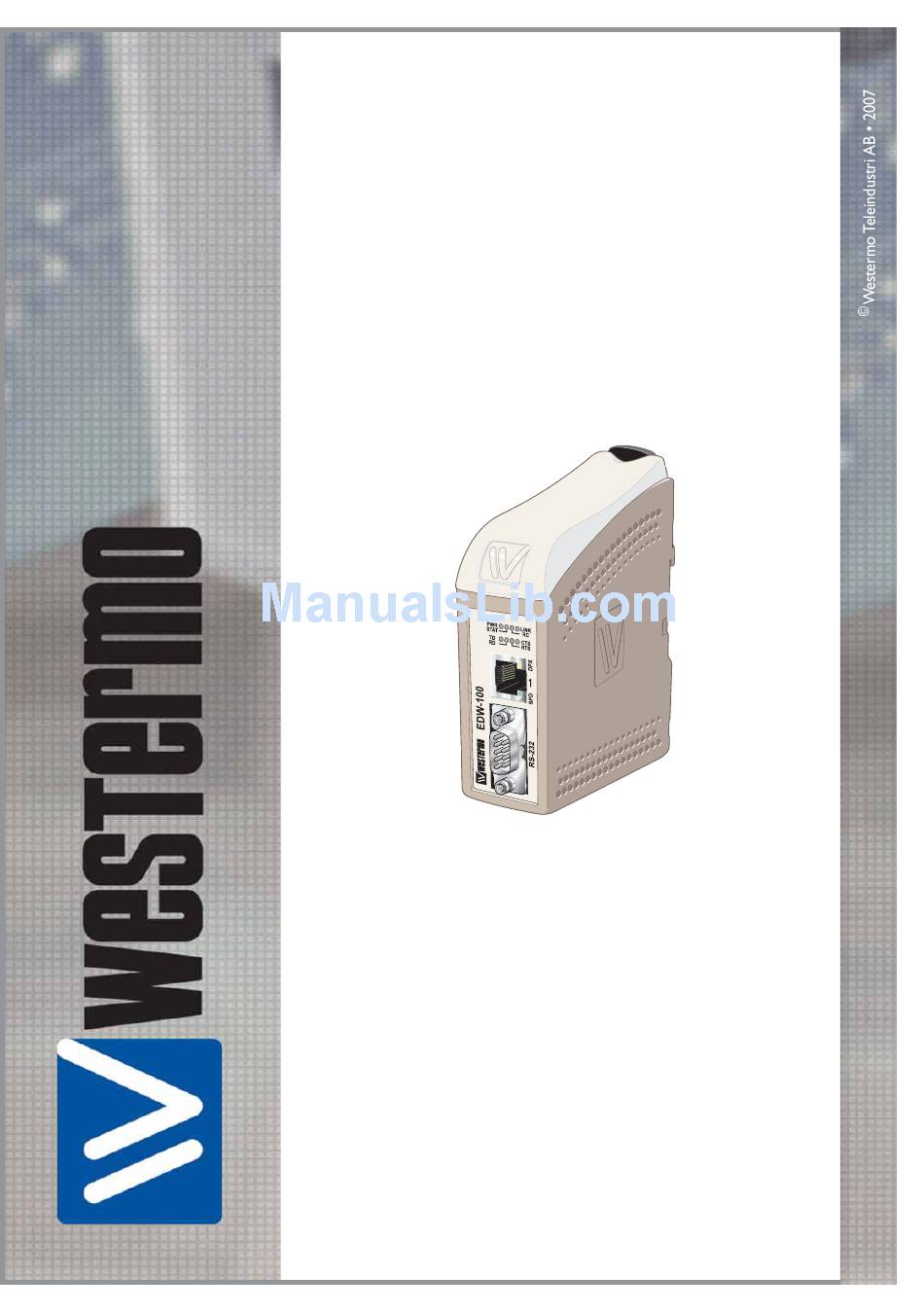

  • Page 1 User Guide 6616-2202 EDW-100 Serial Adapter www.westermo.com...

  • Page 2: Before Installation

    Safety Before installation: Read this manual completely and gather all information on the unit. Make sure that you understand it fully. Check that your application does not exceed the safe operating specifications for this unit. This unit should only be installed by qualified personnel. This unit should be built-in to an apparatus cabinet, or similar, where access is restricted to service personnel only.
  • Page 3 10/100BASE-T and supports the following networking protocols: TCP, UDP, ICMP, IGMP, HTTP, ARP. Two EDW-100 can be used to provide a serial point to point link over an Ethernet network using either UDP or TCP. When using TCP the EDW-100 can be configured as client or server.

  • Page 4: Agency Approvals And Standards Compliance

    For more information on applications and technical data visit www.westermo.com. The Web tool also includes an integrated help where all functions and modes are described in details. More help can be found inside the web tool and the "?" button on each configuration page.

  • Page 5: Declaration Of Conformity

    Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Installation manual DIN-rail EDW-100 3616-0020 4500-0112, 6616-2011 DIN-rail EDW-120 3616-0010 4500-0112, 6616-2221 is in conformity with the following EC directive(s).

  • Page 6: Type Tests And Environmental Conditions

    Type tests and environmental conditions Electromagnetic Compatibility Phenomena Test Description Test levels EN 61000-4-2 Enclosure contact ± 6 kV Enclosure air ± 8 kV RF field AM IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 – 1 000 MHz modulated 20 V/m 80% AM (1 kHz), 800 –...

  • Page 7: Product Description

    Product description The EDW-100 is an industrial Ethernet to serial interface adapter designed for harsh environments. It allows serial devices to interface through a new or existing Ethernet network. The unit can support either RS-232, RS-485 or RS-422 based protocols running at up to 115.2 kbit/s.
  • Page 8 New Connection - Hyper Terminal File Edit View Call Transfer Help 'EDW-100 IP CONFIGURATION' Firmware : 4100-9002 -- Current IP configuration -- Local IP address : 169.254.100.100 Gateway address : 169.254.100.1 Subnet Mask address : 255.255.255.0 Press <Return> to select the value shown in braces, or enter a new value.

  • Page 9: Diagnostic Information

    Password: ****** Hello edw100 Welcome to Westermo EDW-100 diagnostics service (TCP Server): Listening for TCP connection on port: [9000]... The Telnet diagnostic service provide the user with information such as UDP- or TCP mode, connected or listening state (TCP) etc.

  • Page 10: Getting Started

    DTE. 1.8 m standard cable is supported by Westermo art.no. 1211-2172. 2. Setting DIP S1:1 to ‘On’ and power-up the EDW-100 will enable the local IP address to be configured via serial interface. Once connected with the terminal program you can change the IP address, Gateway...
  • Page 11 The Webtool has two different login accounts. The first is the EDW-100 Guest account that only allows the user to read the units set- tings but he has no rights to configure the unit in any way. This accounts Username and Password are fixed and aren’t configurable.
  • Page 12 IP® use portions of the “Telnet Environment Option” (RFC1572) to verify that it is con- nected to an EDW-100. The EDW-100 has partial support for the “Telnet Com Port Control Option” (RFC2217). This makes it possible to remotely (on the fly) change serial port parameters. Currently supported parameters are baud rate, parity, number of data bits and number of stop bits.

  • Page 13: Application Modes

    IP address of the EDW-100. 3. Login using default username and password (or your customized settings if configured). Application modes The EDW-100 can be setup for use in one of four different application modes: … TCP Server … TCP Client … UDP …...

  • Page 14: Transmission Control Protocol (Tcp)

    This mode makes it possible to establish a TCP connection to a remote TCP server e.g. a EDW-100 in TCP Server mode. DSR signal rising or a powering up the unit will trigger the EDW-100 to make an connection attempt to the specified server depending on configuration.
  • Page 15 Short description of Modbus Modbus is a communication protocol developed by Modicon systems. The EDW-100 Modbus gateway is used for interconnecting a TCP/IP Modbus network and a serial line Modbus network (either RTU or ASCII). It permits Modbus clients (masters) on either of the TCP/IP or the serial network to connect to Servers (slaves) on the other network.
  • Page 16 Modbus Slave 4 Setting up the EDW-100 as a Modbus Gateway Set the EDW-100 application mode to Modbus gateway to enable the gateway functional- ity. Serial settings and ip-configuration is shared whit the other application mode but the rest of the Modbus configuration is done on the specific Modbus configuration page. To set up the gateway it is necessary to know details about the TCP and the serial Modbus network.

  • Page 17: Packing Algorithm

    Packing algorithm When data arrives at the serial port of the EDW-100 there must be one or more criteria fulfilled to trigger the EDW-100 to encapsulate the received serial data into a frame and send it out on the network.

  • Page 18: Interface Specifications

    Interface specifications Power Rated voltage 12 to 48 VDC Operating voltage 10 to 60 VDC Rated current 250 mA @ 12 VDC 125 mA @ 24 VDC 63 mA @ 48 VDC Rated frequency Maximum inrush 0.3 A s @ 48 VDC current @ 10 ms Polarity Reverse polarity protected...
  • Page 19 RS-232 Electrical specification EIA RS-232 Data rate 300 bit/s – 115.2 kbit/s Data format 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits. Protocol Transparent, optimised by packing algorithm Retiming Not applicable Circuit type SELV Transmission range 15 m...
  • Page 20 Mounting This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet, or similar. Snap on mounting, see figure. Cooling 10 mm * (0.4 inches) This unit uses convection cooling. To avoid obstructing the air- 25 mm flow around the unit, use the following spacing rules.
  • Page 21 No. 1 Common No. 2 No. 3 No. 4 Common RS-232 (DTE) The EDW-100 supports redundant power connection. The positive input are +VA and 9-position Direction Description +VB, the negative input for both supplies are No. 1 Not connected (DCD) COM.

  • Page 22: Led Indicators

    Ethernet Ethernet TX connection (RJ-45 connector), automatic MDI/MDI-X crossover*. Contact Signal Name Direction Description/Remark In/Out Transmitted/Received data TD– In/Out Transmitted/Received data In/Out Transmitted/Received data CAT 5 cable is rec- ommended. RD– In/Out Transmitted/Received data Unshielded (UTP) or shielded (STP) con- nector might be used.

  • Page 23: Dip Switch Settings

    DIP-switch settings Before DIP-switch settings: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap). S1:8 S1:1 S1* DIP-switch Ethernet Auto-negotiation disabled. Normally OFF Auto crossover (MDI/MDIX) disabled. 10 Mbit/s. 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Enable local IP configure via serial...
  • Page 24 A T- to B, R+ to A´ and R- to B´, but other brands might use some other naming convention. If a unit does not work it can help to swap A and B. If difficulty is being experience contact Westermo for further guidance. 6616-2202...
  • Page 25 The one to many function can be used in place of a traditional RS-422 or RS-485 multidrop application. Data entering one of the EDW-100 will be broadcast or Multicast to any other device in the broadcast or multicast group. A typical application would be a SCADA host computer communicating to a number of PLC’s.
  • Page 26 Network Description In a point to point application the EDW-100 can be to replace or extend a cable link. The distance between the EDW-100 units is only limited by the size of the LAN. Data can be sent across the network using ether UDP or TCP. A typical application would be a SCADA or Data logging application interrogating a sensor or PLC.
  • Page 28 Park Gate, Southampton • SO31 7GA Singapore 347893 Phone: +44(0)1489 580-585 • Fax.:+44(0)1489 580586 Phone +65 6743 9801 • Fax +65 6745 0670 E-Mail: sales@westermo.co.uk E-mail: earnestphua@westermo.com.sg Westermo Teleindustri AB have distributors in several countries, contact us for further information.
