Westermo ID-90 Installation Manual

Isdn terminal adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION MANUAL
Galvanic
Isolation
Terminal Adapter
AUDIN
Composants & systèmes d'automatisme
8, avenue de la malle 51370 Saint Brice Courcelles - France
Tel. +33(0)326042021 • Fax +33(0)326042820
http://www.audin.fr • e-mail info@audin.fr
6607-2213
Transient
Balanced
Protection
Transmission
ISDN
www.westermo.se
CE
Approved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID-90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westermo ID-90

Summary of Contents for Westermo ID-90

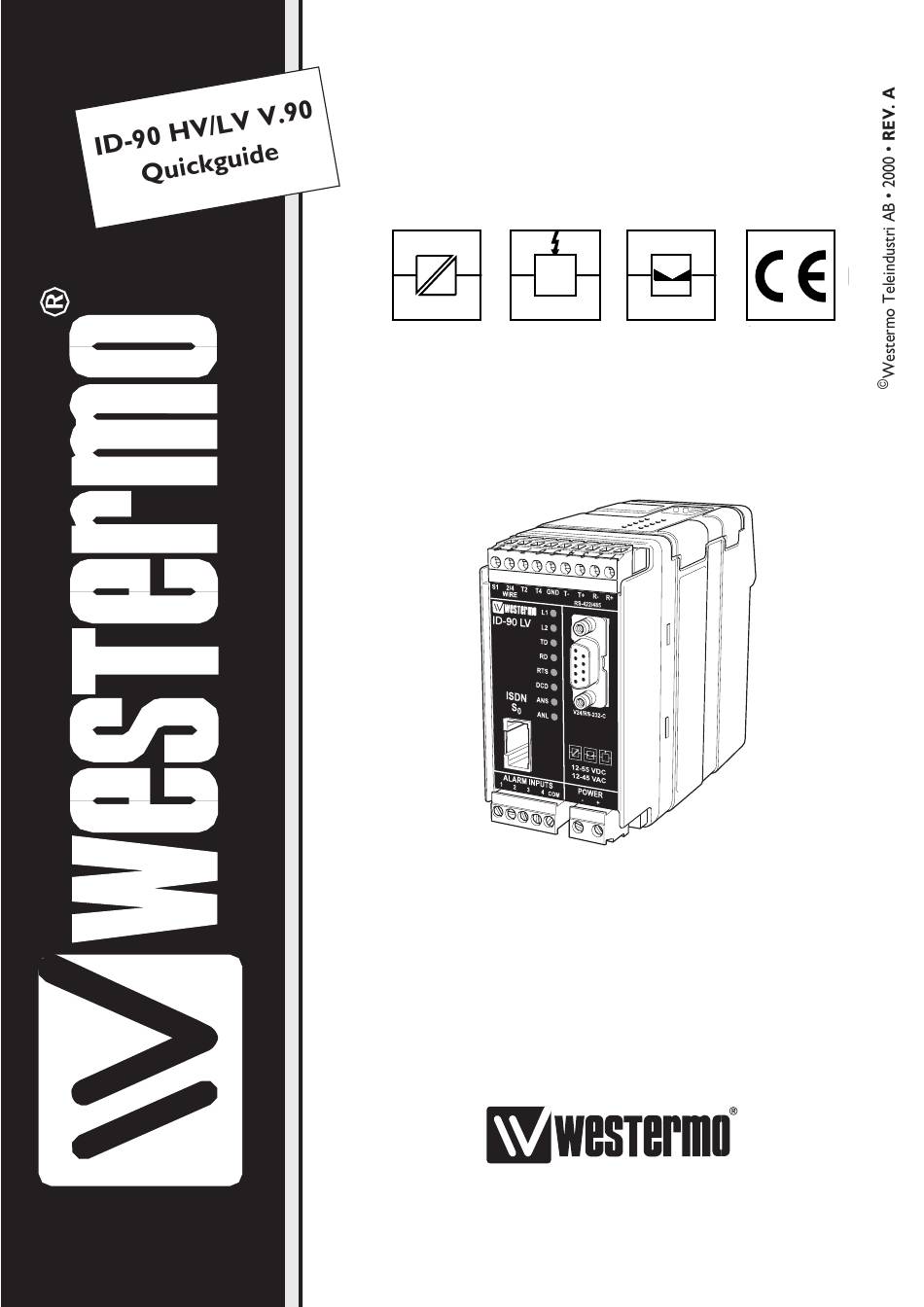

  • Page 1 INSTALLATION MANUAL 6607-2213 Galvanic Transient Balanced Isolation Protection Transmission Approved ISDN Terminal Adapter www.westermo.se AUDIN Composants & systèmes d'automatisme 8, avenue de la malle 51370 Saint Brice Courcelles - France Tel. +33(0)326042021 • Fax +33(0)326042820 http://www.audin.fr • e-mail info@audin.fr...
  • Page 2 One low voltage version, version LV with nominal input voltages 12–45V AC and 12–55V DC ±10%. The ID-90 has 4 Alarm inputs that can be used to trigger 20 character SMS paging mes- sages or establish automatic data connections, making the unit ideal for alarm monitoring and remote diagnostics.

  • Page 3: Specifications

    Specifications Transmission Interface 1 Asynchronous, full/half duplex or simplex PPP and ML-PPP Asynchronous & Synchronous conversion V110 Asynchronous adaptation up to 19.2 kBit/s Interface 2 B-channel protocols V.110 async, V.120 async. HDLC async. to sync. HDLC transparent HDLC transparent Byte transparent X.75 SLP X.25 B-Channel T.70NL and T.90NL...

  • Page 4: Installation

    CCITT V.24 Direction Signal description Description DCD/Data Carrier Detect RD/Received Data TD/Transmitted Data 108/2 DTR/Data Terminal Ready – SG/Signal Ground DSR/Data Set Ready RTS/Request to Send CTS/Clear to Send RI/Ring Indicator I = input O = output on ID-90 6607-2213...
  • Page 5 Internally connected to +5V via pull-up resistor. I = input O = output on ID-90 The definations R+/R–, T+/T– can be various between different manufactures. ID-90 uses the defination that in a “MARK”-condition R+/T+ is more negative than R–/T–. Connection Connection Termination...
  • Page 6 100 ohm: Point to Point Configuration ID-90 • Point to Point. In this configuration the ID-90 is the only TA on the S 0 bus. A distance d1 of 1000 m is generally archived with a 0.3 mm 40 nF/km cable.
  • Page 7 Extended Passive Bus ID-90 ID-90 GR 4 Fax Max 8 TA/TE • Extended Passive Bus. The difference between the short passive bus and the extended passive bus is that the extended passive bus specifies a distance between the units, d3 and that the units are located at the far end from the NT at a distance of d3 from the far end terminating resistor TR.
  • Page 8 The four alarm inputs are accessed through screw terminals, the alarm inputs are opto-iso- lated from all other parts of the ID-90. The alarm inputs need an external supply voltage of 10–60V DC to be operated. The supply is connected between the alarm input common and the four inputs via making or breaking contacts.

  • Page 9: Led Indicators

    LED normally showing the status of the ISDN S 0 interface. L1 together with L2 is also used to indicate error conditions in the ID-90 and the connection to the ISDN S 0 interface. ISDN Data connection LED Normally showing the state of the data connection Auto answer OFF = ID-90 will reject incoming calls.

  • Page 10: Dip Switch Setup

    Data bits parity When using DIP-swithes for parity and data bits remember to set DTE baudrate switches as well. Related AT-command Stored setting from ID-90 database is used – 1 2 3 4 5 6 7 8 AT**prty=0 No Parity...
  • Page 11 DSR and DCD line control Related AT-command Stored setting from ID-90 database is used – 1 2 3 4 5 6 7 8 ID-90 control line AT&S DSR and DCD is always ON AT&C 1 2 3 4 5 6 7 8 AT&S...
  • Page 12 DTE baudrate Related AT-command Stored setting from ID-90 database is used – 1 2 3 4 Automatic baud detection AT%B0 1 2 3 4 1 200 bit/s AT%B1 1 2 3 4 2 400 bit/s AT%B2 1 2 3 4...
  • Page 13 B-Channel protocol Related AT-command Stored setting from ID-90 database is used – 1 2 3 4 5 6 7 8 V.110 asynchronous ATB0 1 2 3 4 5 6 7 8 HDLC asynchronous to synchronous conversion ATB3 (for PPP asynchronous and single link PPP)

  • Page 14: Command Set

    Command set Selects the flow control behaviour of the ID-90 while in data communication phase. Related AT-command Stored setting from ID-90 database is used – 1 2 3 4 5 6 7 8 AT-command set AT**cmds = 0 1 2 3 4 5 6 7 8 X.3 PAD...

  • Page 15: Flow Control

    Flow control Selects the flow control behaviour of the ID-90 while in data communication phase. Related AT-command Stored setting from ID-90 database is used – 1 2 3 4 5 6 7 8 AT&K No local flow control between the DTE and ID-90 is used CTS is always ON, RTS ignored AT&R1...

  • Page 16: Factory Settings

    1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 The ID-90 DIP-switches will be read at Power on and override the current database set- ting. If an AT-command or Configurator command given after Power on addressing the same parameter as a DIP-switch setting the command will in turn override the DIP-switch setting.
  • Page 17 OWN COMMENTS ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................6607-2213...
  • Page 18 OWN COMMENTS ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................6607-2213...
  • Page 20 Westermo Teleindustri AB • SE-640 40 Stora Sundby, Sweden Phone +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.se • Westermo Web site: www.westermo.se Subsidiaries Westermo Data Communications Ltd Westermo Data Communications S.A.R.L. Unit 14 Talisman Business Centre • Duncan Road 9 Chemin de Chilly 91160 CHAMPLAN Park Gate, Southampton •...
