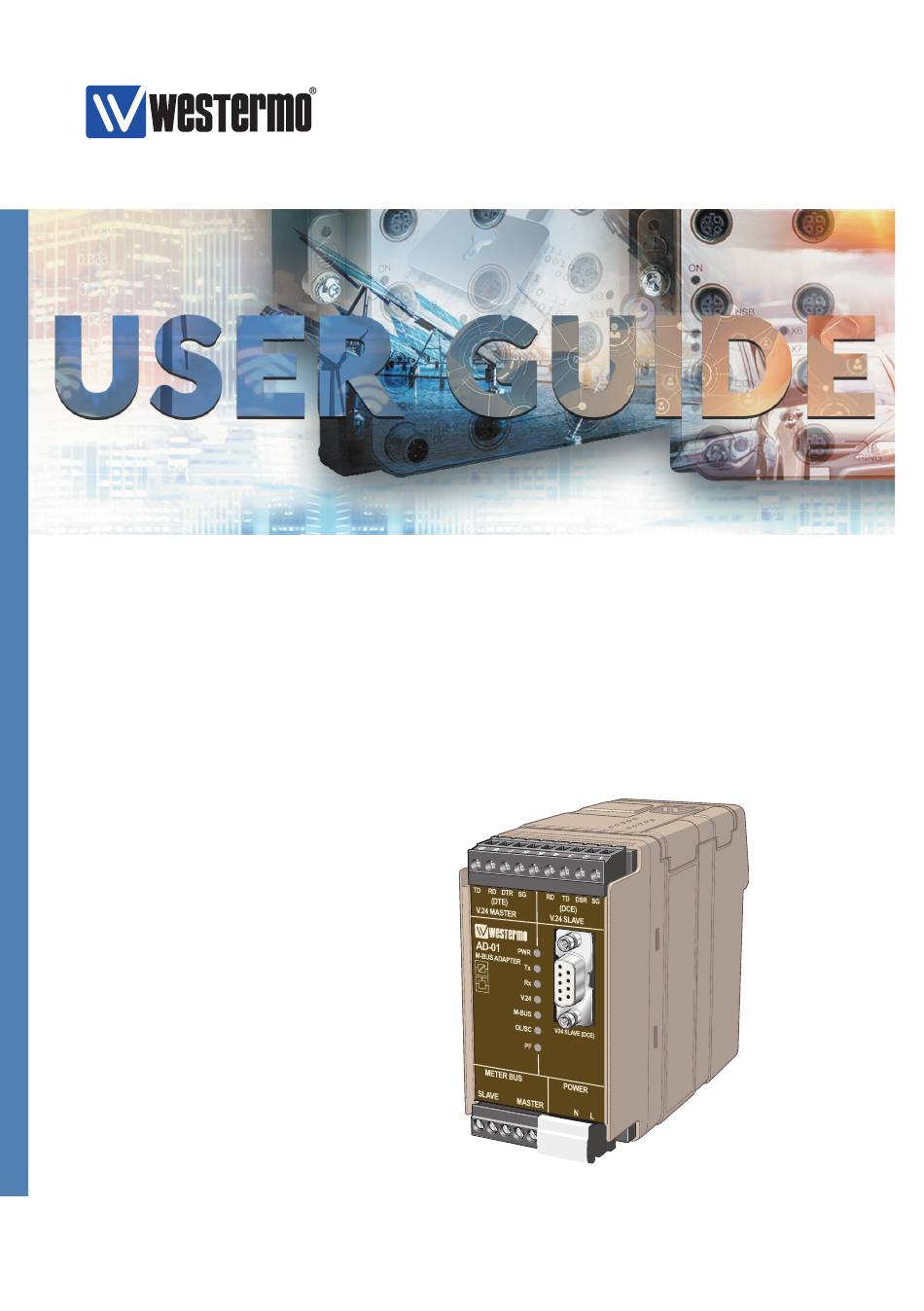

- Page 1 AD-01 M-BUS Adapter Industrial adapter, M-bus, Repeater, Converter and zone controller...
- Page 2 6612-2202...
-
Page 3: General Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 4: Care Recommendations
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. - Page 5 Product disposal This symbol means that the product shall not be treated as unsorted municipal waste when disposing of it. It needs to be handed over to an applicable collection point for recy- cling electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help to reduce hazardous substances and prevent potential negative consequences to both environment and human health, which could be caused by inappropriate disposal.
-
Page 6: Simplified Eu Declaration Of Conformity
Simplified EU declaration of conformity Hereby, Westermo declares that the equipment is in compliance with applicable EU directives. The full EU declaration of conformity and other detailed information are available at the respective product page at www.westermo.com. Agency approvals and standards compliance... - Page 7 Type tests and environmental conditions Electromagnetic Compatibility Phenomena Test Description Level EN 61000-4-2 Enclosure contact ± 4 kV Enclosure air ± 8 kV RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 - 2700 MHz Fast transient EN 61000-4-4 Signal ports...
- Page 8 AD-01 is an industrial adapter for M-bus communication. AD-01 is a very flexible product for building of M-Bus networks. The AD-01 can be configured for a number of applications. It is possible to access the AD-01 and activate/deactivate RS-232 and M-Bus slave port using commands over M-Bus.
-
Page 9: Interface Specifications
Interface specifications Power interface Rated voltage 230 V AC ±10% Rated current 150 mA Rated frequency 48–62 Hz Connection 3-position screw terminal M-Bus interface (slave) Electrical specification M-Bus according to EN1434-3 Data rate Up to 9600 bit/s Power consumption Maximum 2 slave loads Connection 5-position screw terminal M-Bus interface (master) - Page 10 RS-232/V.24 for M-Bus protocol Slave Screw Direction Description terminal (DCE) No. 1 – Signal ground (SG) No. 2 Data set ready (DSR)* No. 3 Transmit Data (TD) No. 4 Receive Data (RD) Master Screw Direction Description terminal (DTE) No. 6 –...
-
Page 11: Led Indications
LED indications Status Description LED on Correct internal power LED off No internal power LED on Data received slave interface LED off No data slave interface LED on Data received master interface LED off No data master interface V.24 LED on RS-232/V.24 master port open LED off RS-232/V.24 master port closed... -
Page 12: Dip Switch Settings
DIP-switch settings Before DIP-switch settings: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap). NOTE DIP-switch alterations are only effective after a power on. S1 Primary address Address bit inactive ('0') Address bit active ('1') 1 2 3 4 5 6 7 8... -
Page 13: Factory Settings
1 2 3 4 5 Disconnected power to AD-01. Set switch to factory default. Repower AD-01, the unit is now set as factory default. Disconnect power and set switch to normal mode. Factory settings 1 2 3 4 5 6 7 8... - Page 14 Mounting This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet, or similar. Snap on mounting, see figure. 10 mm * (0.4 inches) Cooling 25 mm This unit uses convection cooling. To avoid obstructing the airflow around the unit, use the following spacing rules.
-
Page 15: Protocol Implementation
Packets addressed to the unit are controlled according to M-Bus standard. Unit addressing AD-01 can be addressed over the M-Bus protocol in two ways, by using primary or secondary addressing. Primary addressing The primary address is set with switches inside the unit. - Page 16 03 (hex) Active Active Read out of master ports Read out of the master ports setting is possible using a REQ_UD2 command. AD-01 will respond with a RSP_UD, CI=72 (hex) with the following data field. Data field DIF = 01 (hex)
-
Page 17: Program Update
Program update A software update can be made using the 9-position D-sub connection. AD-01 has a micro controller with flash memory which can be reprogrammed. To perform a program update a program file from Westermo and flash software is necessary. -
Page 18: Application Example
120 slave loads. Consider the following points. • AD-01 can be used transparently, no addressing or set up of AD-01 using the M-Bus protocol is necessary. • The primary address should be set to 0 to avoid addressing of the AD-01 unit. - Page 19 AD-01 can be used to connect a M-Bus network to a SIOX network. Consider the following points. • AD-01 can be used transparently, no addressing or set up of AD-01 using the M-Bus protocol is necessary. • The primary address should be set to 0 to avoid addressing of the AD-01 unit.
- Page 20 Consider the following points. • AD-01 is addressed and set up by the supervision system • AD-01 can be addressed with primary or secondary address • If meters with different data rate is used the AD-01 should be set up for autobaud. 6612-2202...
- Page 21 RS-232 RS-232 RS-232 Communication Media M-Bus M-Bus AD-01 TD-36 TD-36 AD-01 Managing system with M-Bus protocol Meter Meter Meter Meter Meter Meter Zone 1 Zone 2 6612-2202...
- Page 22 Primary address in binary format ADDRESS BINARY ADDRESS BINARY ADDRESS BINARY ADDRESS BINARY 00000001 01000111 10001101 11010011 00000010 01001000 10001110 11010100 00000011 01001001 10001111 11010101 00000100 01001010 10010000 11010110 00000101 01001011 10010001 11010111 00000110 01001100 10010010 11011000 00000111 01001101 10010011 11011001 00001000 01001110...
- Page 23 6612-2202...
- Page 24 Westermo • SE-640 40 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com REV.D 6612-2202 2018-10 Westermo Network Technologies AB, Sweden...
