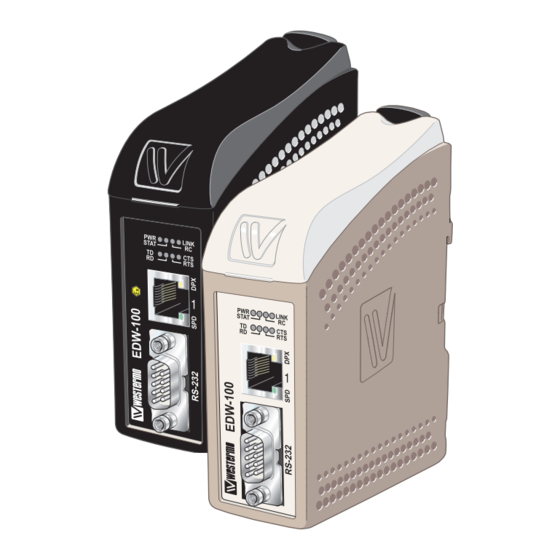

Westermo EDW-100 EX User Manual

Serial adapter edw-100 series
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Guide
6616-2203
EDW-100
Serial Adapter
www.westermo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDW-100 EX and is the answer not in the manual?

Questions and answers

Related Manuals for Westermo EDW-100 EX

Summary of Contents for Westermo EDW-100 EX

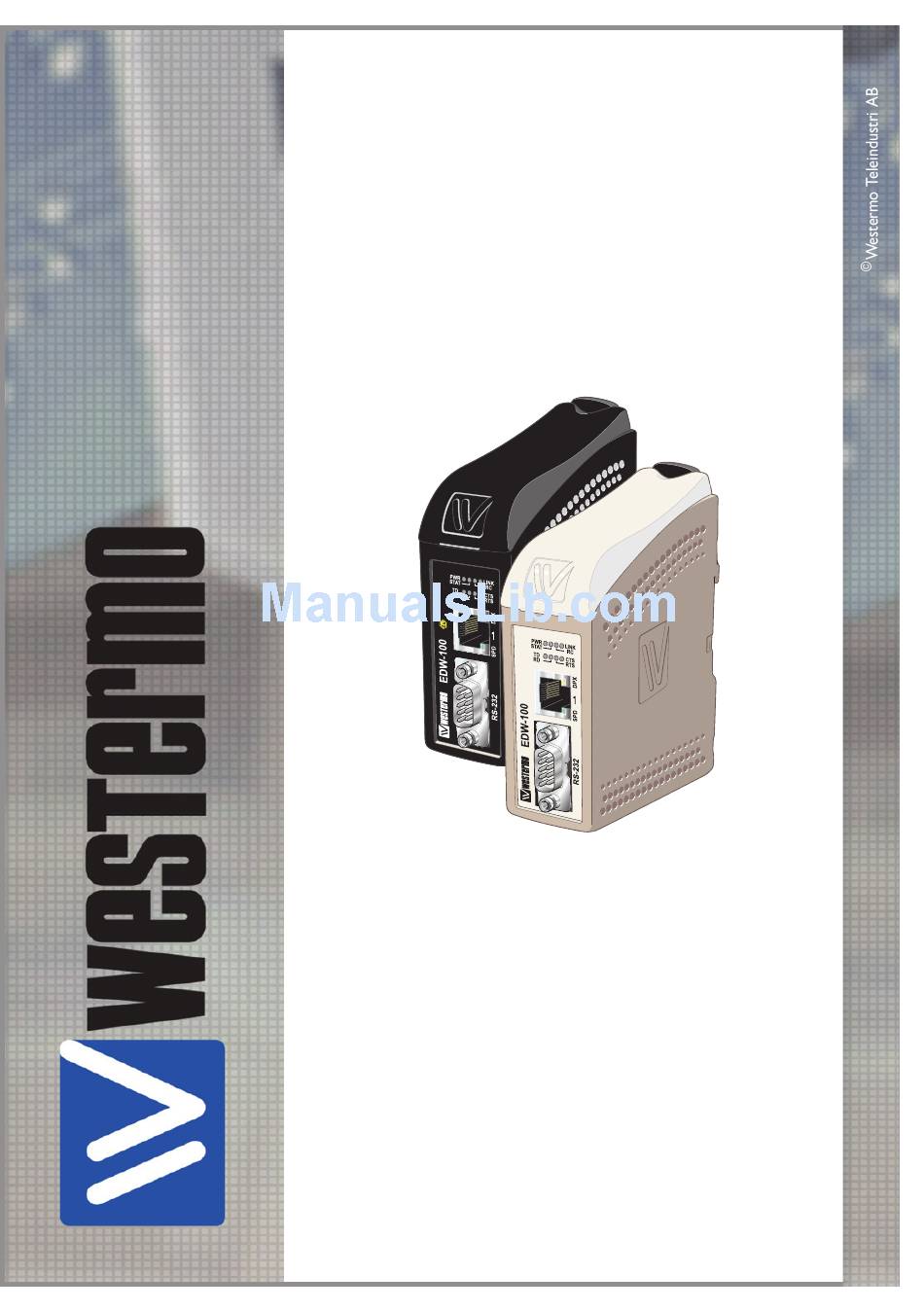

  • Page 1 User Guide 6616-2203 EDW-100 Serial Adapter www.westermo.com...

  • Page 2: Software Tools

    Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.

  • Page 3: Care Recommendations

    Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support.
  • Page 4 ATEX and IECEx Information (Applicable for EDW-100 Ex only) General This unit is intended for use in Zone 2 hazardous location only. Marking Baseefa 14ATEX0294X II 3 G Ex nA IIC T4 Gc IECEx BAS 14.0137X SPECIAL CONDITION WARNING – DO NOT SEPARATE WHEN ENERGIZED Indicate that this unit complies with relevant European standards that are harmonised with the 2014/34/EU Directive (ATEX).

  • Page 5: Safety Control Drawing

    Ratings Power 12 – 48 VDC; 250 mA –25ºC ≤ Ta ≤ +70ºC Ambient temperature Ingress protection (IP) IP21 Maximum surface temperatur 135ºC (temperature class T4) Safety Control Drawing Degree of protection IP 21 Ambient temperature –25°C to +70°C Minimum 25 mm above / below Installation spacing Minimum 10 mm left / right Position...

  • Page 6: Special Condition For Safe Use

    SPECIAL CONDITION FOR SAFE USE Ambient temperature: This unit is designed for use in extreme ambient temperature conditions as follows: –25ºC ≤ Ta ≤ +70ºC Installation in an apparatus cabinet: The equipment must be installed in an area of not more than pollution degree 2 in accordance with IEC 60664-1, and in an enclosure that provides a minimum degree of pretection of at least IP54 and complies with the relevant requirements of EN 60079-0 and EN 60079-15.

  • Page 7: Agency Approvals And Standards Compliance

    EN 60079-0 and EN 60079-15 IECEx** IEC 60079-0 and IEC 60079-15 * Applicable for EDW-100 only ** Applicable for EDW-100 Ex only FCC Part 15.105 This equipment has been tested and found to comply with the limits for a Notice: Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 8: Declaration Of Conformity

    Electrical apparatus for explosive gas atmospheres – 2010 Construction, test and marking of type of protection “n” electrical apparatus Pierre Öberg Technical Manager October 2017 Only applicable for EDW-100 EX and EDW-120 EX. Org.nr/ Postadress/Postal address Tel. Telefax Postgiro Bankgiro Corp.

  • Page 9: Type Tests And Environmental Conditions

    Shock IEC 60068-2-27 Operating 15 g, 11 ms Packaging Enclosure EDW-100 UL 94 PC / ABS Flammability class V-1 EDW-100 Ex – Cabelec CA6141 – Dimension 35 x 121 x 121 mm W x H x D Weight 0.2 kg...
  • Page 10 Introduction The EDW-100 is an Industrial Ethernet to serial adapter or Ethernet Terminal Server. The serial interface is selectable between RS-232 and RS-422/485. The Ethernet interface is 10/100BASE-T and supports the following networking protocols: TCP, UDP, ICMP, IGMP, HTTP, ARP. Two EDW-100 can be used to provide a serial point to point link over an Ethernet network using either UDP or TCP.
  • Page 11 For more information on applications and technical data visit www.westermo.com. The Web tool also includes an integrated help where all functions and modes are described in details. More help can be found inside the web tool and the "?" button on each configuration page.

  • Page 12: Product Description

    Product description The EDW-100 is an industrial Ethernet to serial interface adapter designed for harsh environments. It allows serial devices to interface through a new or existing Ethernet network. The unit can support either RS-232, RS-485 or RS-422 based protocols running at up to 115.2 kbit/s.

  • Page 13: Unique Features

    Termination and fail-safe of the RS-422/485 serial interface can only be made by DIP-switches only. The local IP address of the unit can be configured by using a terminal program. New Connection - Hyper Terminal File Edit View Call Transfer Help 'EDW-100 IP CONFIGURATION' Firmware...

  • Page 14: Diagnostic Information

    Password: ****** Hello edw100 Welcome to Westermo EDW-100 diagnostics service (TCP Server): Listening for TCP connection on port: [9000]... The Telnet diagnostic service provide the user with information such as UDP- or TCP mode, connected or listening state (TCP) etc.

  • Page 15: Getting Started

    “Cross-over” cable, because both EDW-100 and the computer interface is DTE. 1.8 m standard cable is supported by Westermo art.no. 1211-2172. 2. Setting DIP S1:1 to ‘On’ and power-up the EDW-100 will enable the local IP address to be configured via serial interface.

  • Page 16: Browser Login

    Username and Password for configuration The EDW-100 is username and password protected. These are used when connecting with Web browser during configuration and with Telnet for diagnostics. Default username: edw100 Default password: edw100 Browser Login The Webtool has two different login accounts. The first is the EDW-100 Guest account that only allows the user to read the units settings but he has no rights to configure the unit in any way.
  • Page 17 Configuration by Web Tool The EDW-100 includes an easy-to-use Web configuration tool. The Web tool is very intuitive and includes useful help information for the configurable parameters. Connect and login to the EDW-100 with the EDW-100 Config account on the default IP address and with default username- and password combination (or your customized if configured) using a standard Web browser.

  • Page 18: Application Modes

    Diagnostics via Telnet The EDW-100 provides the user with diagnostics information via a Telnet connection on port 23. Information presented to the user is: … Operational mode (UDP, TCP-server or client) … Operational status (Listening for connection (TCP server), connected to host (TCP server or client), Attempting to connect (TCP client)) …...

  • Page 19: Transmission Control Protocol (Tcp)

    Short description of TCP and UDP User Datagram Protocol (UDP) UDP provides a connectionless datagram service. This means that the arrival of datagram’s or data packets is not controlled and the reliability of the communication is the responsibility of the application layer protocol. In this way UDP is a simpler method of communication than TCP.
  • Page 20 Short description of Modbus Modbus is a communication protocol developed by Modicon systems. The EDW-100 Modbus gateway is used for interconnecting a TCP/IP Modbus network and a serial line Modbus network (either RTU or ASCII). It permits Modbus clients (masters) on either of the TCP/IP or the serial network to connect to Servers (slaves) on the other network.
  • Page 21 Gateway Client mode Allows one Modbus client (master) on a serial network to connect to one or more servers (slaves) on the TCP/IP network. Modbus Modbus TCP Modbus RTU or Slave 5 Modbus ASCII RS-485 Ethernet EDW-100 Modbus Client Modbus gateway Modbus Slave 2 Modbus Slave 6...

  • Page 22: Packing Algorithm

    Packing algorithm When data arrives at the serial port of the EDW-100 there must be one or more criteria fulfilled to trigger the EDW-100 to encapsulate the received serial data into a frame and send it out on the network. These criteria are setup using different parameters i.e.

  • Page 23: Interface Specifications

    Interface specifications Power LV Rated voltage 12 to 48 VDC Operating voltage 10 to 60 VDC Rated current 250 mA @ 12 VDC 125 mA @ 24 VDC 63 mA @ 48 VDC Rated frequency Maximum inrush 0.3 A²s @ 48 VDC current @ 10 ms Polarity Reverse polarity protected...
  • Page 24 RS-232 Electrical specification EIA RS-232 Data rate 300 bit/s – 115.2 kbit/s Data format 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits. Protocol Transparent, optimised by packing algorithm Retiming Not applicable Circuit type SELV Transmission range 15 m...

  • Page 25: Power Connection

    Connections S1 DIP-switch under lid (for details see page 25) RS-422/485 interface screw terminal LED indicators, also integrated in the RJ-45 4-position Direction* Description connector. (for details see next page) No. 1 line RS-422 No. 2 R– line RS-422 Ethernet 1 RJ-45 connection No.

  • Page 26: Led Indicators

    Ethernet Ethernet TX connection (RJ-45 connector), automatic MDI/MDI-X crossover*. Contact Signal Name Direction Description/Remark In/Out Transmitted/Received data TD– In/Out Transmitted/Received data In/Out Transmitted/Received data CAT 5 cable is recommended. RD– In/Out Transmitted/Received data Unshielded (UTP) or shielded (STP) connector might be Shield HF-connected used.

  • Page 27: Dip Switch Settings

    DIP-switch settings Before DIP-switch settings: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap). S1:8 S1:1 S1* DIP-switch Ethernet Auto-negotiation disabled. Normally OFF Auto crossover (MDI/MDIX) disabled. 10 Mbit/s. 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Enable local IP configure via serial...
  • Page 28 Mounting This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet, or similar. Snap on mounting, see figure. Cooling 10 mm * (0.4 inches) This unit uses convection cooling. To avoid obstructing the 25 mm airflow around the unit, use the following spacing rules.
  • Page 29 A T- to B, R+ to A´ and R- to B´, but other brands might use some other naming convention. If a unit does not work it can help to swap A and B. If difficulty is being experience contact Westermo for further guidance. 6616-2203...
  • Page 30 One to many using UDP using broadcast or multicast Network Description The one to many function can be used in place of a traditional RS-422 or RS-485 multidrop application. Data entering one of the EDW-100 will be broadcast or Multicast to any other device in the broadcast or multicast group.
  • Page 31 Point to point using UDP connection Network Description In a point to point application the EDW-100 can be to replace or extend a cable link. The distance between the EDW-100 units is only limited by the size of the LAN. Data can be sent across the network using ether UDP or TCP.

  • Page 32: Sales Units

    Other Offices sales.cn@westermo.com info@westermo.us www.cn.westermo.com www.westermo.us Finland Singapore tiedot@westermo.fi sales@westermo.com.sg www.westermo.fi www.westermo.com France Sweden infos@westermo.fr info.sverige@westermo.se www.westermo.fr www.westermo.se For complete contact information, please visit our website at www.westermo.com/contact or scan the QR code REV. H 6616-2203 2016-04 Westermo Teleindustri AB, Sweden...
