Chinook CBT
USERS'
INSTALLATION
OPERATION &
MAINTENANCE
MANUAL
INSTALLER—PLEASE FILL IN:
SERIAL NUMBER...........................
Report # 142-S-11-2
SAVE THESE INSTRUCTIONS
INSTALLER: PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER
CUSTOMER: PLEASE KEEP MANUAL FOR FUTURE REFERENCE
The authority having jurisdiction (such a municipal building department, fire department, etc.)
should be consulted before installation to determine the need to obtain a permit.
Valley Comfort Systems Inc.
1290 Commercial Way
Penticton, BC V2A 3H5
Phone: 250-493-7444
Fax: 250-493-5833
Pour la version française de nos manuels S.V.P. vous référez à notre site web: www.blazeking.com
G:\pubdata\Manuals\English Manuals\OM-CK24

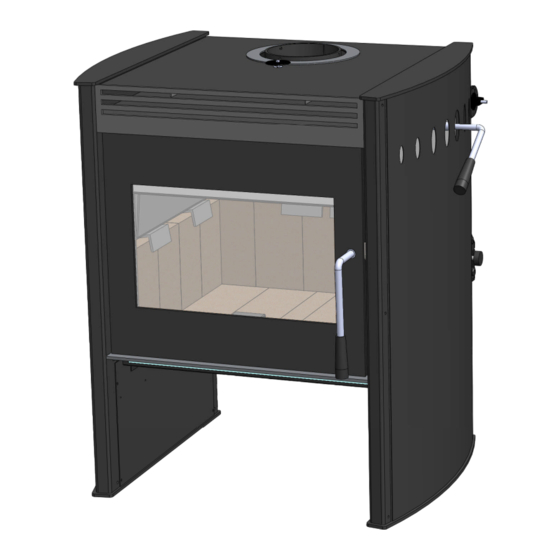

Chinook
SOLID FUEL CATALYTIC STOVE
CK24C / CK24F
Manufactured By
CANADA
Blaze King Industries
146 A Street
Walla Walla, WA 99362
Phone: (509) 522-2730
Fax: (509) 522-9803
OM CK24C/CK24F
U.S.A.
Page 1
Version 1.03
April 2011
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Blaze King Chinook CK24C
Summary of Contents for Blaze King Chinook CK24C
- Page 1 Chinook CBT Page 1 Chinook SOLID FUEL CATALYTIC STOVE CK24C / CK24F USERS’ INSTALLATION OPERATION & MAINTENANCE MANUAL INSTALLER—PLEASE FILL IN: SERIAL NUMBER……………………... Report # 142-S-11-2 SAVE THESE INSTRUCTIONS INSTALLER: PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER CUSTOMER: PLEASE KEEP MANUAL FOR FUTURE REFERENCE The authority having jurisdiction (such a municipal building department, fire department, etc.)
-
Page 2: Table Of Contents
Chinook CBT Page 2 INDEX INTRODUCTION SPECIFICATIONS PRODUCT INFORMATION - Appliance dimensions CK24C - Appliance dimensions CK24F - Side Cutaway CERTIFICATION LABEL 9-11 SAFETY PRECAUTIONS 12-19 INSTALLATION INSTRUCTIONS - Floor Protection - Clearances 13-14 - Combustion Air and Draft - Venting Systems... -
Page 3: Introduction
Blaze King dealer, Local Building Inspector, Fire Department, or our customer service department at Blaze King, Walla Walla, WA (509) 522-2730 or in Canada 250-493-7444. The Management and Employees of... -
Page 4: Specifications
Rating Max 27,280 Btu/hr output* 86.4% overall efficiency (LHV) Height 35” Width CK24C (curved side shields) 29.25” (without removable bypass handle) Width Ck24F (Flat side shields) 26.75” (without removable bypass handle) Depth 30.5” (without optional fan kit but incl. door handle) 31.5”... -
Page 5: Product Information
Chinook CBT Page 5 PRODUCT INFORMATION Appliance Dimensions—Chinook CK24C (Curved sides) Fig. 1 G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011... - Page 6 Chinook CBT Page 6 PRODUCT INFORMATION Appliance Dimensions—Chinook CK24F (Flat sides) G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011...
-
Page 7: Side Cutaway
Chinook CBT Page 7 PRODUCT INFORMATION Combustor Bypass Door Dome Guard Flame Dome Guard Shield Bottom Shield (Needs to be removed to in- stall Optional Ash Drawer) SIDE CUTAWAY—WHAT IS INSIDE G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011... - Page 8 Chinook CBT Page 8 G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011...
-
Page 9: Safety Precautions
Page 9 SAFETY PRECAUTIONS IF THIS BLAZE KING STOVE IS NOT PROPERLY INSTALLED OR OPERATED, A HOUSE FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA. - Page 10 If the ashes are dis- manual. posed of by burial in soil or oth- erwise locally dispersed, they should be retained in the closed container until all cinders have thoroughly cooled. G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011...
-
Page 11: Safety Precautions
The instructions must tion restriction or inspection be strictly adhered to. Do requirements in your area. not use makeshift methods Notify your insurance com- or compromise in the instal- pany as well. lation. G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011... -
Page 12: Installation Instructions
FREIGHT DAMAGE This product was carefully inspected before it left Blaze King. Inspect the unit thoroughly upon its arrival. If damage is found report it to the carrier and then immediately file a freight damage claim. Your local Blaze King dealer will assist if required. -
Page 13: Clearances
Chinook CBT Page 13 INSTALLATION INSTRUCTIONS MINIMUM CLEARANCES FOR CHINOOK WITH CURVED SIDESHIELDS (CK24C) Residential Installations 13.65” * 14.5” * Roof exit, parallel and corner. No Fan kit required 9.5” 6” 20.6” 4” 72” Wall exit, parallel and corner. No Fan kit required. -
Page 14: Clearances
53 1/4” x 42 3/4” (1353 x 1086mm) Min. Alcove minimum width 48”, maximum depth 48”, minimum height 72” This stove must be installed in compliance with all local codes and regulations. G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011... -
Page 15: Venting Systems
Blaze King recommends the use of double wall pipe and two 45° elbows instead of a single 90° elbow. A minimum 36” rise is recommended prior to any elbows being used. - Page 16 4” (Nominal) ½” Air Space Foundation Fig. 9 Masonry Chimney Construction that is within 10 feet of the chimney, Minimum 2” clearance for interior chimney measured horizontally (Fig. 12). Fig.10 Fire Stopping G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011...
- Page 17 Do not push it beyond the inside edge of the chimney liner because this will affect the draw of the chimney. Fig. 13 Brick Chimney Thimble G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011...
- Page 18 Exterior masonry chimney’s should be lined with a listed (insulated) stainless steel liner for better operation of these units. Fig. 15 Metal Prefabricated Thimble Fig. 16 Metal Prefabricated Thimble G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011...
-
Page 19: Installation Instructions
The “Through The Wall” method requires at a minimum a wall pass through device, a wall support package and insulated “T” section and roof flashing. Fig. 17 Detail Of Connection Through Roof G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Fig. 18 Detail Of Connection Through Wall Version 1.03 April 2011... -
Page 20: Mobile Home
Outside Air kit. (To access the screw down hole, remove side shields (see page 23)). ALSO, a #8 ground wire must be attached to the stove and an appropriate ground. G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011... - Page 21 See instructions included with Fan Kit. Tools needed: Square (Robertson nr. 2) screw driver. ELECTRICAL CONNECTION Your Blaze King fan kit is equipped with a three-prong (grounded) plug to decrease shock hazard. THIS PLUG SHOULD BE INSERTED DIRECTLY INTO A PROPERLY-GROUNDED, THREE-HOLE RECEPTACLE.
- Page 22 The door can be aligned if necessary by moving the hinge-blocks on the stove. Undo the bolt(s) on the inside of the firebox, slide the hinge-block to the correct position and tighten the bolts. G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011...
- Page 23 If installed in mobile home, remove floor anchor prior to lifting stove. Installing the side shields will be in reverse order. DO NOT OPERATE THIS UNIT WITHOUT EITHER APPROVED SIDE- SHIELDS IN PLACE. DOING SO MAY CAUSE A HOUSE FIRE. G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011...
-
Page 24: Operation Instructions
OPERATION INSTRUCTIONS In order to get peak performance out of your Blaze King stove you will need to follow a few basic steps outlined in the following chapters. Forget everything you learned about how to burn or operate a regular wood stove. -
Page 25: First Fire
Put as much fuel into the stove as it will hold. Don't be afraid to fill it completely*. With the Blaze King automatic thermostat, the wood will only burn at the rate set on the thermostat. -
Page 26: Operation Instructions
In such weather, occasionally burn the stove for 4 or 5 minutes with the bypass open and the thermostat set at maximum to melt any possible ice buildup. DO NOT BURN THE STOVE WITH THE DOORS OPEN. G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011... -
Page 27: Creosote
7. Having a clearly understood plan should a chimney fire occur. WARNING: FAILURE TO INSPECT AND CLEAN YOUR CHIMNEY SYSTEM REGULARLY CAN RESULT IN A SERIOUS FIRE WHICH MAY DAMAGE YOUR CHIMNEY OR CAUSE A HOUSE FIRE G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011... -
Page 28: Maintenance
Page 28 MAINTENANCE Your appliance has been manufactured in the Blaze King tradition of high quality. To ensure years of trouble free operation, have your stove serviced regularly by your Blaze King dealer. Periodically during the heating season thoroughly clean the chimney and firebox so your system is ready for next fall. -
Page 29: Door Glass
This residue may be very difficult to remove. DOOR GLASS, REPLACEMENT Your BLAZE KING is equipped with a door which uses a strong, heat-resistant ceramic glass intended to withstand extremely high temperatures and tested for continuous use above 1200 degrees Fahrenheit. However, this glass can be broken through improper use. -
Page 30: Gaskets
1. If the door gasket is to be replaced, be sure you have some 7/8” fiber glass gasket material, ready to re-install. See your Blaze King dealer. 2. Be sure the fire is out and the stove has cooled down. The door does not have to be removed from the stove. -
Page 31: Maintenance
"Inactive" zone, then retighten the bolt. Note: If your Blaze King is equipped with optional fans, turn off fans and wait 10 minutes prior to reading catalytic thermometer indicator. Air movement across the top of the stove may provide false reading. -
Page 32: Troubleshooting
TROUBLESHOOTING Your Blaze King is designed to allow a wide selection of heat output levels. If you begin to lose control of the amount of heat the stove is emitting, determine the cause early so that major problems may be avoided. - Page 33 Poor draft caused by an oversize or short flue, etc. Measure draft with Manometer. See DRAFTS, page 31 See CHIMNEY, page 15-17. Consult your Blaze King dealer or a chimney sweep. Chimney too cold or poorly insulated. Upgrade chimney system.
-
Page 34: Troubleshooting
Measure draft with Manometer. wall pipe, to many elbows, etc. See DRAFTS, page 31. See CHIMNEY, page 15-17. Consult your Blaze King dealer or a chimney sweep. PROBLEM: Door glass quickly becomes coated with creosote. CAUSE SOLUTION Low thermostat setting or lowering the thermostat Turn the thermostat to the warmest setting setting too far, too quickly. -
Page 35: Replacement Parts
Chinook CBT Page 35 REPLACEMENT PARTS G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011... -
Page 36: Brick Layout
Chinook CBT Page 36 BRICK LAYOUT G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 Version 1.01 April 2011 G:\pupdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Nov 2010... - Page 37 Chinook CBT Page 37 REPLACEMENT PARTS Replacement Parts and Kit list for Chinook G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011...
-
Page 38: Replacement Parts
Chinook CBT Page 38 REPLACEMENT PARTS BRICK LAYOUT Number Brick Size G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011... -
Page 39: Stove
RESPONSIBILITIES OF THE COMPANY: IF the purchaser has complied with all of the terms and conditions of this warranty and IF the purchaser has notified BLAZE KING of a defect prior to the expiration of the respective warranty period and after shipment, BLAZE KING will either repair or replace the product, AT ITS ELECTION, or MAY ELECT to refund a portion of the purchase price, based on the formula below, if it cannot readily and quickly provide the purchaser with a replacement. -
Page 40: Notes
Chinook CBT Page 40 NOTES SERVICE HISTORY DATE CORRECTIVE ACTION (INCLUDE REPLACEMENT PARTS) G:\pubdata\Manuals\English Manuals\OM-CK24 OM CK24C/CK24F Version 1.03 April 2011...
