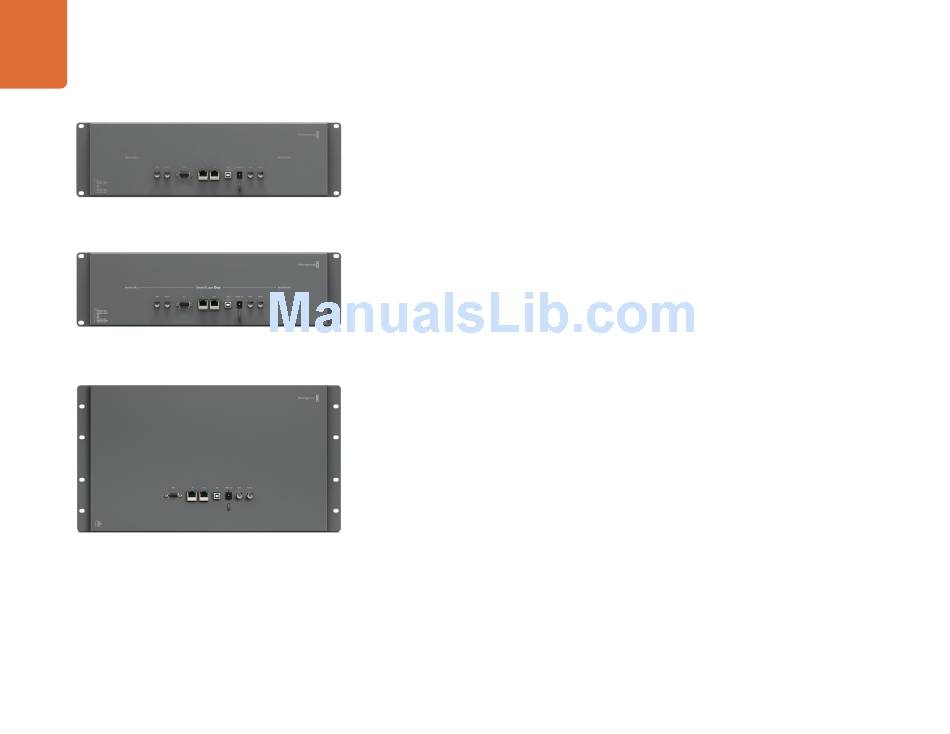

SmartView Duo
SmartScope Duo
SmartView HD

Introducing SmartView and SmartScope

SmartView monitors are perfect for any facility which requires rack-based monitoring. To simply get up and
running the only thing you need to do is plug in power and connect an SDI source!
SmartView Duo has two monitors for simultaneous display of different video signals. One can display a YUV
4:2:2 signal while the other receives RGB 4:4:4. One monitor could be showing NTSC while the other shows
PAL. There are many possible combinations but it is all as simple as connecting a single SDI cable to each
monitor!
SmartScope Duo has all the same features as SmartView Duo plus can be used to display waveform,
vectorscope and other popular scopes for monitoring video and audio levels in real time.
SmartView HD is a single 17" LCD which is perfect for confidence monitoring in full resolution HD!
All SDI input connections on SmartView and SmartScope support auto-detection of SD, HD or 3G-SDI
including 2K video.
If you have a SmartScope Duo, you'll also want to connect a USB cable to your Mac or Windows computer
and install the SmartView Utility software so you can select the desired scopes.
If you want to remotely adjust settings for multiple SmartView and SmartScope units from one computer,
you can connect them together via Ethernet. This means you won't have to run around to each unit with a
computer and USB cable each time you want to adjust settings.
That's all you need to get started! Please read on for more detailed instructions on connecting SmartView
and SmartScope, configuring monitor settings in the SmartView Utility and connecting to a network.
