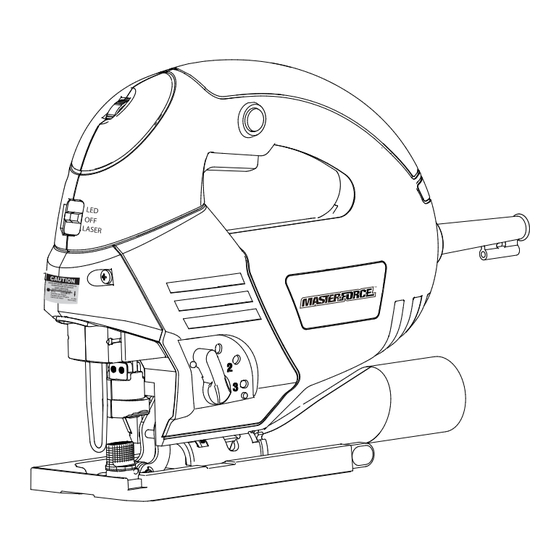

Operator's Manual
Jig Saw
Model No. 241-0790
IMPORTANT :
WARNING! Carefully read this operating manual before using your new
tool. Pay close attention to all Safety Instructions, Warnings and Caution sec-
tions. Use your tool properly and only for its intended use.
Safety symbols in this manual are used to flag possible dangers. The safety
symbols and their explanations require your full understanding. The safety
warnings do not by themselves eliminate any danger, nor are they substitute
for proper accident prevention measures.
This Safety Alert Symbol indicates caution, warning, or danger. Failure to obey
a safety precaution can result in serious injury to yourself or others. To reduce the
risk of injury, fire, or electric shock, always follow the safety precautions .

Advertisement

loading
Need help?

Need help?

Do you have a question about the 241-0790 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MasterForce 241-0790

Summary of Contents for MasterForce 241-0790

  • Page 1 Operator’s Manual Jig Saw Model No. 241-0790 IMPORTANT : WARNING! Carefully read this operating manual before using your new tool. Pay close attention to all Safety Instructions, Warnings and Caution sec- tions. Use your tool properly and only for its intended use.

  • Page 2: Table Of Contents

    RULES FOR SAFE OPERATION TABLE OF CONTENTS Specification ....................page 2 KNOW YOUR TOOL Rules for Safet Operation................page 3 To operate this tool, carefully read this operating manual and all labels affixed to the jig saw before using. Keep this manual available for future reference. Assembly and adjustment................page 9 Operation ......................page 13 IMPORTANT...
  • Page 3 for outdoor use. Use of a cord suitable for outdoor use reduces the risk of storing power tools. Such preventive safety measures reduce the risk of electric shock. starting the power tool accidentally. f) If operating a power tool in a damp location is unavoidable, use a residual d) Store idle power tools out of the reach of children and do not allow persons current device (RCD) protected supply.
  • Page 4 ADDITIONAL SAFETY INSTRUCTIONS FOR OPERATION WARNING! Use of controls, adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation DANGER! Keep hands away from the cutting area and the blade. Keep your exposure. second hand on the auxiliary handle or motor housing.

  • Page 5: Assembly And Adjustment

    KNOW YOUR JIG SAW 8. Orbit control lever Before attempting to use this jig saw, become familiar with all of its operating 9. Cutting angle guide features and safety requirements. For optimum performance and safety, read 10. Variable speed dial the following operating instructions carefully before using the saw.
  • Page 6 Plug into the power source and run the saw under no-load to check that it runs By changing the position of the guide and Fig. 4 smoothly before using it to cut any materials. using the same straight edge as a guide, it is possible to quickly and easily CAUTION! The blade roller guide (7) supports the blade when cutting and must at all times rest against the back edge of the blade.

  • Page 7: Operation

    1- Minimal orbital action 2. Mark the line of the cut on the workpiece. Fig. 7 2- Medium orbital action 3. Adjust the orbit control level, bevel angle and speed as required. 3- Maximum orbital action for the most 4. Rest the front edge of the base on the workpiece. aggressive cutting:for quickly cutting 5.
  • Page 8 1. Insert the bar of the edge guide through the slots in the base of the jig saw. It Release the trigger switch (1) to stop the tool. can be inserted from either side of the base, with the edge guide facing down. If you press the lock-on button (2) while the trigger switch is depressed, the switch is kept in the operating position.

  • Page 9: Maintenance

    WARRANTY If the body of the saw needs cleaning, wipe it with a soft damp cloth. If, during normal use, this MASTERFORCE power tool breaks or fails due A mild detergent can be used but nothing like alcohol, petrol or other to a defect in material or workmanship within three years from the date of cleaning agent.
