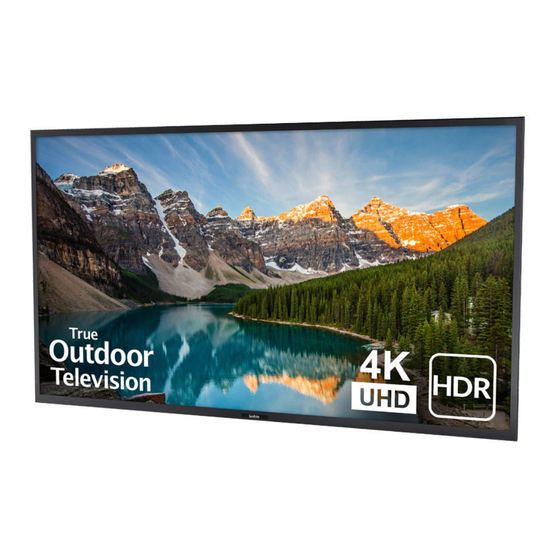

SunBriteTV Veranda SB-V-55-4KHDR Operator's Manual

4k hdr

Hide thumbs Also See for Veranda SB-V-55-4KHDR:

Operating manual (52 pages)

Owner's manual (54 pages)

page of 54

/ 54
Bookmarks

Quick Links

Download this manual

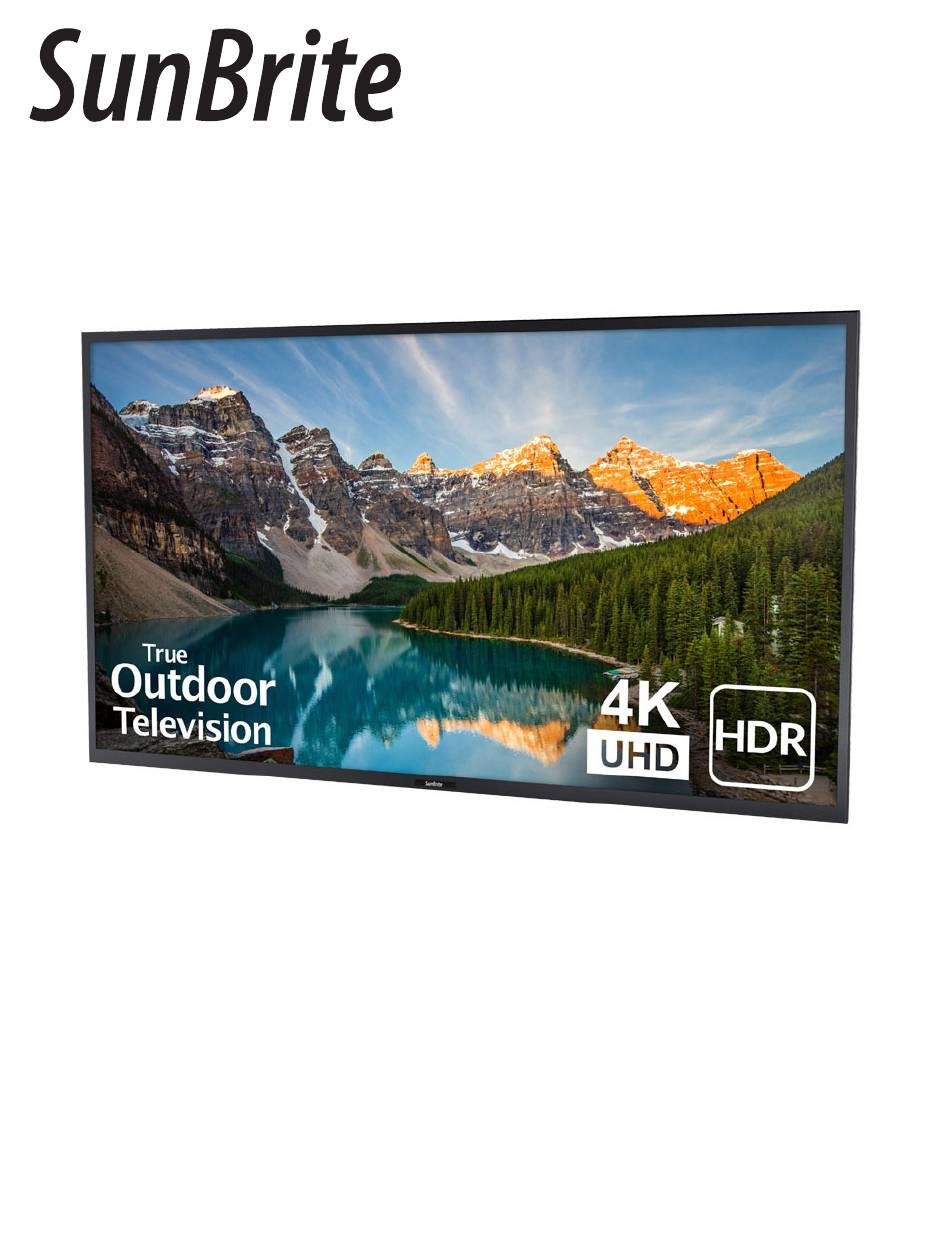

Veranda 4K HDR Operator's Manual

Models: SB-V-43-4KHDR

SB-V-55-4KHDR

SB-V-65-4KHDR

SB-V-75-4KHDR

MVE-003-00

Revision 190128_1020

Need help?

Do you have a question about the Veranda SB-V-55-4KHDR and is the answer not in the manual?

Questions and answers

Summary of Contents for SunBriteTV Veranda SB-V-55-4KHDR

Page 1 Veranda 4K HDR Operator’s Manual Models: SB-V-43-4KHDR SB-V-55-4KHDR SB-V-65-4KHDR SB-V-75-4KHDR MVE-003-00 Revision 190128_1020...
Page 2 Bisphenol A (BPA), which is known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. NOTE: SunBriteTV operates a free mailback recycling program for consumers. For more information on how to recycle your TV, please visit: https://www.sunbritetv.com/support/recycling-programs or contact customer service at 866.357.8688.
Page 3 Important Safety Instructions 4K HDR Veranda Operation Manual Page 3...
Page 4 Safety checks: Upon completion of service or repair work, ask the service technician to perform safety checks to ensure that the product is in proper operating condition. Recycling: SunBriteTV operates a free mailback recycling program for consumers. For more information on how to recycle your TV, please visit: https://www.sunbritetv.com/support/recycling-programs or contact customer service at 866.357.8688.
Page 5 Table of Contents CONTENTS Important Safety Instructions ..................................2 Part Names ..........................................6 Remote Control Unit ......................................7 Displaying an External Equipment Image ..............................9 Watching TV ..........................................10 Initial Installation .............................................. 10 Direct Button Operation ....................................12 Changing Channels ............................................12 MUTE ................................................13 Channel Return ..............................................14 AUDIO ................................................
Page 6 (Side) * See page 8 for button operations. Caution When using the ethernet port for IP control, connect the cable to the network switch before connecting to the SunBriteTV ethernet port. SPEAKER BAR OUTPUT. • See page 9 for details on the Input Select function.
Page 7 Remote Control Unit Note: SunBrite TVs use the Sony TV IR codeset. When programming a universal remote or control system try Sony IR codes if SunBrite TV codes are not listed. POWER ON: Switch the TV power on. POWER OFF: Switch the TV power off. 0–9: Set the channel.
Page 8 SunbriteTV Remote Control Unit (Continued) Note: SunBrite TVs use the Sony TV IR codeset. When programming a universal remote or control system try Sony IR codes if SunBrite TV codes are not listed. 15 RETURN: Return to the previous channel.
Page 9 Displaying an External Equipment Image To view external source images, select the input source by pressing INPUT on the remote control unit or on the TV. 1. Press INPUT. The INPUT list screen displays. 2. Press / to select the input source. An image from the selected source automatically displays.
Page 10 Watching TV INITIAL INSTALLATION Perform the following steps before you press POWER on the remote control unit. 1. Insert the batteries into the remote control unit. 2. Connect the antenna cable to the TV. 3. Plug in the AC cord to the AC outlet. Select Antenna or Cable 1.
Page 11 Watching TV INITIAL INSTALLATION (CONTINUED) 3. The tuner will scan for available channels and store them into memory. This process can take from 3-10 minutes. 4. When the scan process is complete, select exit setup. 4K HDR Veranda Operation Manual Page 11...
Page 12 Direct Button Operation CHANGING CHANNELS You can change channels in several ways. Method 1 Using CH +/- on the remote control unit or on the TV. Method 2 Using remote control buttons 0-9, - (Dash). Examples: To select a 1 or 2-digit channel number (e. g., Channel 5): Press 5 ENTER To select a 3-digit channel number (e.
Page 13 Direct Button Operation MUTE Mutes the current sound output. Press MUTE. will be displayed on the screen, and the sound is silenced. 4K HDR Veranda Operation Manual Page 13...
Page 14 Direct Button Operation CHANNEL RETURN • Press R (Ch Return) to switch to the previously tuned channel. • Press R (Ch Return) again to switch back to the currently tuned channel. • Note: R (Ch Return) will not work if no channel has been changed after the TV is turned on All Rights Reserved.
Page 15 Direct Button Operation AUDIO MTS/SAP stereo mode The TV has a feature that allows reception of sound other than the main audio for the program. This feature is called Multi-channel Television Sound (MTS). The TV with MTS can receive mono sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV station to broadcast other information, which could be audio in another language or something completely different like weather information.
Page 16 Direct Button Operation SLEEP TIMER Allows you to set a time when the TV automatically switches to standby. Press SLEEP. • The remaining time displays when the sleep timer has been set. • Each time you press SLEEP, the remaining time switches as shown below. •...
Page 17 Direct Button Operation SOUND MODE Sound MODE gives you several audio setting options to choose from to best match the surrounding environment of the TV, which can vary due to factors like listening enviroment, type of program watched or the type of device connected. Press SOUND.
Page 18 On-Screen Display Menu PICTURE MODE Picture mode gives you several viewing options to choose from to best match the surrounding environment of the TV, which can vary due to factors like ambient light, type of program watched or the type of device connected. Press Picture button.
Page 19 Direct Button Operation CLOSED CAPTIONS AND DIGITAL CLOSED CAPTIONS Your TV is equipped with an internal Closed Caption decoder. It allows you to view conversations, narration and sound effects as subtitles on your TV. Closed Captions are available on some TV programs and on some VHS home video tapes at the discretion of the program provider.
Page 20 Direct Button Operation CLOSED CAPTIONS AND DIGITAL CLOSED CAPTIONS (CONTINUE) Examples: In a case where there are two closed caption services provided (for instance, Digital CC(ENG) and CC1), and Digital CC(ENG) is displayed as your current selection, if Digital CC(ENG) is not broadcast for the next program, the other closed caption service, CC1, will be displayed in parentheses.
Page 21 Direct Button Operation ASPECT MODE You can select the screen size. 1. Press ASPECT. • The Aspect Mode menu displays. • The menu lists the Aspect Mode options selectable for the type of video signal currently being received. 2. Press ASPECT or GKProjA_a/GKProjA_b while the View Mode menu is displayed to select a desired item on the menu.
Page 22 Direct Button Operation ASPECT MODE (CONTINUED) For 4:3 programs Example: Screen size images Side Bar S. Stretch (Smart Zoom Stretch Sketch) Suitable for viewing Suitable for Suitable for viewing This mode is useful conventional 4:3 stretching 4:3 wide-screen 2.35:1 for 1.78:1 DVDs. programs in their programs to fill the anamorphic DVDs in...
Page 23 Direct Button Operation ASPECT MODE (CONTINUE) For PC Example: Screen Size Images Input Signal Auto Zoom Stretch Full Screen (Dot by Dot) Keeps the For viewing An image Detects the original widescreen fully fills the resolution of aspect ratio in programs.
Page 24 On-Screen Display Menu Introduction 1. User Menu Option Title • This indicates the item currently selected. • Press ENTER to go to the adjustment screen for this item. 2. Hightlighted Menu Option • This indicates the currently selected item. 3. Item displayed in white •...
Page 25 On-Screen Display Menu ON-SCREEN DISPLAY MENU OPERATION 1. Press MENU to display the MENU screen. 2. Press / to select the desired menu. Press / to select a specific adjustment item, and then press ENTER. • Additional related adjustment items may be displayed. Press / to select the desired item.
Page 26 On-Screen Display Menu MENU OPERATION BUTTONS Using the Remote Control Use the following buttons on the remote control to operate the menu. MENU: Press to open or close the menu screen. / / / : Press to select a desired item on the screen or adjust a selected item. ENTER: Press to go to the next step or complete the setting.
Page 27 Audio AUDIO Note: For operating the on-screen display menu. See pages 24-26. Sound Mode Enter to select various sound mode presets Movie/Music/Sport/User Speakers Turn the TV internal speakers on or off Analog Audio Out Set the output of the 3.5mm Analog Audio output. Fixed/Variable Digital Audio Out Set the output mode of the TosLink digital audio (Off/Dolby Digital/PCM) Balance...
Page 28 On-Screen DIsplay Menu PICTURE Note: For operating the on-screen display menu. See pages 24-26. Picture Mode Select Picture Mode Preset Settings (Standard/Movie/Vivid/Game/User/ Aspect Select the aspect mode used when displaying various content (Normal/ Wide/Zoom/Stretch) Color Temperature Select the color temperature of the white areas in the video content (Natural/Warm/Computer/Cool) Backlight Set the backlight brightness (0-20)
Page 29 On-Screen DIsplay Menu ADVANCED PICTURE Note: . See pages 24-26. For operating the on-screen display menu Contrast Adjust the picture contrast Brightness Adjust the picture brightness Color Adjust the color saturation of the picture Tint Adjust the tint of the picture Sharpness Adjust the sharpness of the picture, useful when source is high resolution PC or graphics...
Page 30 On-Screen Display Menu LINK Note: For operating the on-screen display menu. See pages 24-26. Ethernet Select to change the ethernet network type from DHCP(Dynamic) or Static CEC Settings Select to change Link CEC Control settings HDMI (Mode) Select 2.0 for EDID 2.0 full 4k, Select 1.4 for legacy EDID 1.4 4k/30 support Available only when HDMI input is selected TV Mode Select to change the tuner mode type (Antenna/Cable)
Page 31 On-Screen Display Menu SYSTEM Note: . See pages 24-26. For operating the on-screen display menu Sleep Timer Set the time for auto turn off of the TV (30/60/90/120/180 minutes) Same function as remote sleep button. Parental Controls Available only when TV(Tuner) input is selected. Default password is 0000 Select parental controls on TV channels based on the contents rating.
Page 32 On-Screen Display Menu SYSTEM Note: For operating the on-screen display menu. See pages 24-26. Model Name SunBriteTV model number of your outdoor TV Revision Current firmware version Input Source Current source input selected Video Timing Content Frequency Input source frame rate, 60(hz) is typical...
Page 33 USB Photo/Music/Video Playback PREPARATION You can connect the TV to a USB memory device to view pictures, listen to music, and watch videos. Note: • Depending on the USB memory device, the TV may not be able to recognize the recorded data. •...
Page 34 USB Photo/Music/Video Playback SELECTING THE FOLDERS TO PLAY BACK • To play back data on a USB memory device, insert the USB memory device on the TV. • Use the following procedure to switch back to USB mode after switching from USB mode to another mode.
Page 35 USB Photo/Music/Video Playback SELECTING THE FOLDERS TO PLAY BACK Video File Format File Extension Container Video Video .avi MPEG-1 MPEG-Audio MPEG-4 SP/ LPCM ASP(XviD) MS-ADPCM MPEG-4 AVC (H.264) Motion JPEG .mkv MPEG-1 MPEG-Audio MPEG-2 LPCM MPEG-4 SP/ MS-ADPCM ASP(XviD) MPEG-4 AVC (H.264) .asf MPEG-4...
Page 36 USB Photo/Music/Video Playback PLAYING BACK FILES ON A USB MEMORY DEVICE Note: • The screen images in this section are for the USB mode. Photo Mode Viewing Thumbnails Buttons for Thumbnail Operations Buttons Description Select a desired item. Setup options for photo viewing; file sort and slideshow interval time ENTER When selecting a folder icon: Enter this directory.
Page 37 USB Photo/Music/Video Playback PLAYING BACK FILES ON A USB MEMORY DEVICE (CONTINUE) Slide Show The photos displayed on the thumbnail selection screen are displayed as a slide show. Buttons for slide show operation Buttons Description Return to the thumbnail selection screen BACK Previous file Left Arrow...
Page 38 USB Photo/Music/Video Playback PLAYING BACK FILES ON A USB MEMORY DEVICE (CONTINUE) MUSIC MODE Buttons for Music Mode Buttons Description Select a desired item. ENTER When selecting a folder icon: Enter this directory. When selecting a photo thumbnail: Start the slide show. BACK Return to the previous process.
Page 39 USB Photo/Music/Video Playback PLAYING BACK FILES ON A USB MEMORY DEVICE (CONTINUE) VIDEO MODE Buttons for File Selecting Operations Buttons Description Select a desired item. ENTER When selecting a folder icon: Enter this directory. When selecting a photo thumbnail: When selecting a video file: Play the video. BACK End playback and return to the previous process.
Page 40 Using LINK Operation CONTROLLING HDMI EQUIPMENT USING LINK CEC OPERATION What’s LINK Operation? • Using the HDMI CEC (Consumer Electronics Control) protocol, with LINK Operation you can interactively operate compatible system equipment (Blu-ray disc equipment, AV amplifier, DVD). • To access this function: System Operation > Initial Setup > Input Settings > Link Setup > Link Operation. Note: •...
Page 41 Using LINK Operation CONTROLLING HDMI EQUIPMENT USING LINK CEC OPERATION (CONTINUE) LINK Setup Make the settings to use LINK Operation. Set the settings with "Menu" > "Link" > "CEC Settings". CEC Function Select CEC Function to disable the LINK function even when a LINK-compatible HDMI device is connected to the TV.
Page 42 Appendix TV STAND • Before detaching (or attaching) the stand, make sure to turn off the TV and unplug the AC cord. Unfasten the four screws used to secure the stand in place. Example: Attach the stand to the TV. If necessary secure the stand to the table surface before attaching to the TV.
Page 43 The optional speaker bar and required adapter cable is not included in the purchase of a SunBrite TV. These accessories are available at SunBriteTV.com, local dealer or reseller. Before detaching (or attaching) the speaker, make sure to turn off the TV and unplug the AC cord.
Page 44 Appendix MOUNTING THE TV ON THE WALL Standard dimensions for wall mount kits are shown below. Visit www.SunBriteTV.com for information on all available mounts. 43" 55" • The mounting means should be strong enough to bear the weight of the display.
Page 45 Appendix 65" 75" Wallmount Dimensions SB-V-43-4KHDR (A x B) 200mm x 200mm SB-V-55-4KHDR SB-V-65-4KHDR SB-V-75-4KHDR 400mm x 400mm Wallmount Screws Cautions Regarding use in High and Low Temperature Environments When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.
Page 46 3. Keep the TV covered with the optional SunBriteTV Outdoor Dust Cover when not in use. • The fitted dust cover is designed to protect the LCD panel from harmful UV rays from direct sunlight, and keeps wind-blown objects from scratching the surface of the panel.
Page 47 Troubleshooting TROUBLESHOOTING Problem Possible Solution No power • Check if you pressed POWER on the remote control unit. • Is the AC cord disconnected? • Has the power been turned on? Unit cannot be operated. External influences such as lightning, static electricity, may cause improper operation.
Page 48 Troubleshooting Problem Possible Solution No sound • Is connection to other components correct? • Is the volume too low? • Is "Variable" selected in "Output Select"? • Have you pressed MUTE on the remote control unit? • Check the audio output of the connected external equipment.
Page 49 Specifications SunBriteTV Model SB-V-43-4KHDR Front View Side View LCD Screen 43-inch diagonal Color Active Matrix TFT LED LCD Resolution 3840 x 2160 UHD 4k HDR Aspect Ratio 16:9 Blacklight Brightness 400 nits (cd/m2) - Surface Luminance, white Contrast Ratio 4000:1...
Page 50 Specifications SunBriteTV Model SB-V-55-4KHDR Front View Side View LCD Screen 55-inch diagonal Color Active Matrix TFT LED LCD Resolution 3840 x 2160 UHD 4k HDR Aspect Ratio 16:9 Blacklight Brightness 400 nits (cd/m2) - Surface Luminance, white Contrast Ratio 4000:1...
Page 51 Specifications SunBriteTV Model SB-V-65-4KHDR Front View Side View LCD Screen 65-inch diagonal Color Active Matrix TFT LED LCD Resolution 3840 x 2160 UHD 4k HDR Aspect Ratio 16:9 Blacklight Brightness 400 nits (cd/m2) - Surface Luminance, white Contrast Ratio 4000:1...
Page 52 Specifications SunBriteTV Model SB-V-75-4KHDR Front View Side View LCD Screen 75-inch diagonal Color Active Matrix TFT LED LCD Resolution 3840 x 2160 UHD 4k HDR Aspect Ratio 16:9 Blacklight Brightness 400 nits (cd/m2) - Surface Luminance, white Contrast Ratio 4000:1...
Page 53 4K HDR Veranda Operation Manual Page 53...
Page 54 www.SunBrite.com...
