Thank you for purchasing the STI 4-Channel Receiver. Your satisfaction is very important to us.
How the Product Works
STI offers multiple wireless products designed to alert you of several different conditions. The
4-Channel Receiver allows you to monitor up to 4 different STI sensors at a single convenient
location. The STI wireless alert series uses a system to ensure other non STI sensors are not
enrolled. The STI 4-Channel Receiver allows you to latch any alert until reset.
Before You Start

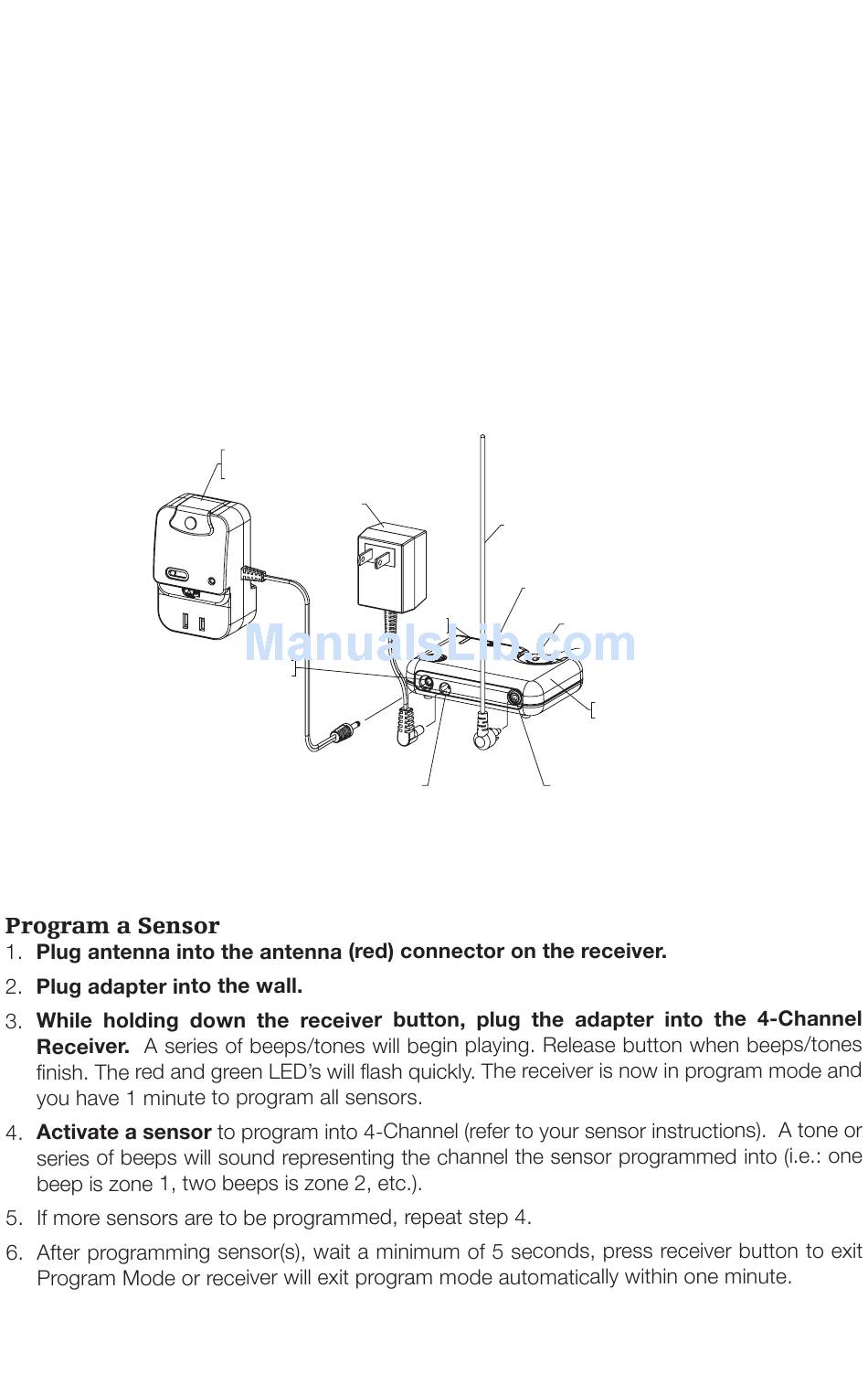

Make sure to read all instructions per task prior to beginning. Refer to this drawing to become
familiar with all parts.
Receives up to 4 different STI Wireless Alert Series Sensors
Installation and Operation Manual
STI 4-Channel Receiver

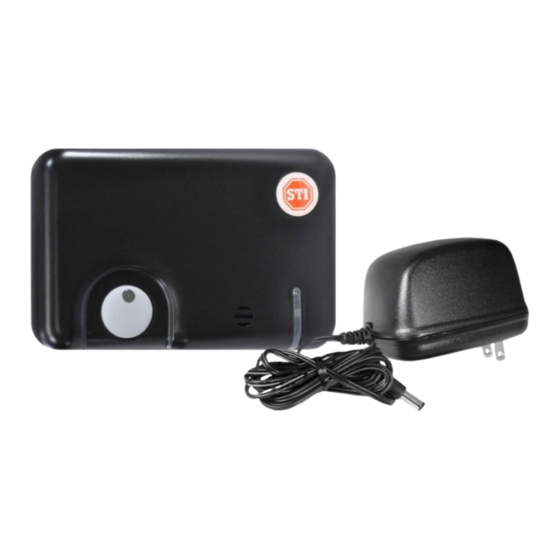

Model: STI-34104
25' OR MORE
STI-30104
LAMP CONTROLLER
(OPTIONAL)
AC ADAPTER
TRANSISTOR
OUTPUT JACK
POWER CONNECTOR
4-Channel Receiver STI-34104
12'
MAX
3'OR
LESS
DRIVEWAY
RECEIVER ANTENNA
SPEAKER
GREEN
BUTTON
LED
ANTENNA CONNECTOR
— 1 —
PLACE SENSOR
TRANSMITTER 3' OR
LESS FROM EDGE OF
DRIVEWAY AND 25'
OR MORE FROM STREET.
RED LED
STI-34104
INDOOR RECEIVER
Advertisement
Table of Contents
Related Manuals for STI STI-34104
Summary of Contents for STI STI-34104
-
Page 1: Before You Start
4-Channel Receiver allows you to monitor up to 4 different STI sensors at a single convenient 12’ PLACE SENSOR location. The STI wireless alert series uses a system to ensure other non STI sensors are not 3’OR TRANSMITTER 3' OR LESS enrolled. - Page 2 Receiver Modes of Operation Normal Operating Mode When a sensor is activated, short beeps will sound just before the alert tone to identify the activated sensor (i.e. 1 beep = channel 1, 2 beeps = channel 2 etc.), then the red LED on the receiver will flash indicating which channel has been alerted (i.e.
- Page 3 Transistor Output Jack This output can trigger a low powered sensor such as the STI Lamp Controller (STI-30104). The output is a 3.5mm mono jack and is polarity sensitive. Output will supply 75mA at 12VDC for three seconds, tip negative.
-
Page 4: Important Notice
