STI 34108 Installation And Operation Manual

Thank you for purchasing this fine product. Your satisfaction is very important to us. Please read this manual carefully to get the
most from your new product.
HOW THE PRODUCT WORKS

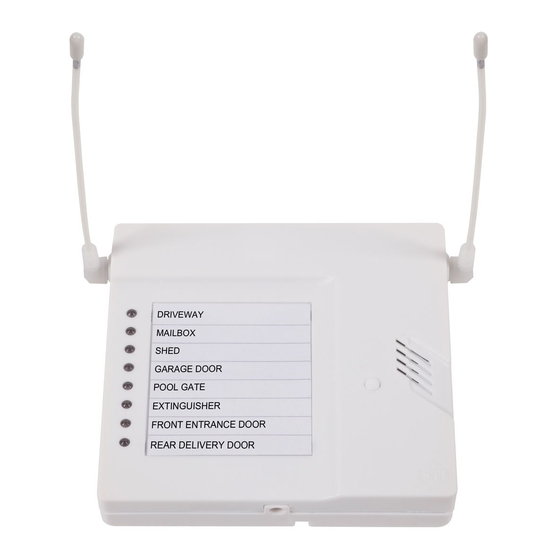

STI offers multiple wireless products designed to alert you of several different conditions. The STI 8-CHANNEL RECEIVER is a
433 MHz radio signal receiver that allows you to monitor up to 8 different STI devices at a single, convenient location. When
placed in enroll mode, it allows you to select 1 of 8 different zones that will represent your STI device(s) best, and enrolls it
when the monitor detects the STI device's wireless signal. The STI wireless device family uses a system that also ensures
other devices (not from STI) are not enrolled or detected. There are no concerns of accidental enrollment, alerts or crosstalk.
The RECEIVER allows you to choose which devices shall have a latching memory condition, when selected during enrollment.
It also allows you to select turning on a siren, sounding a chime, triggering a normally open or normally closed switch or
turning on an external 12 VDC output. The STI 8-CHANNEL RECEIVER also acts as a console repeater when paired with other
STI 8-CHANNEL RECEIVERS to receive wireless transmissions in up to 4 other areas over long distances or around disruptive
terrain.
BEFORE YOU START
DIPSWITCH
FUNCTIONS
Refer to this drawing to become familiar with all the parts.
ZONE LEDs
Installation and Operation Manual
STI 8-Channel Receiver
ANTENNAS
SWITCHES 1-8
ZONES:
LEFT BUTTON
"CALL"
RIGHT BUTTON
"RESTORE"
Model: STI-34108
NO ZONE:
ON and OFF
BUTTONS
PUSH BUTTON
PIEZO
COVER
SCREW
DIPSWITCH
FUNCTIONS
ZONE LEDs
SW4 SW5
OFF OFF
ON OFF
OFF ON
ON ON
ANTENNAS
SWITCHES 1-8
SIREN
TIME M
DISABLED
30 SEC
180 SEC
ON CONT
DIPSWITCH
FUNCTIONS
ZONE L
PUSH BUTTON
PIEZO
COVER
SCREW
