Thank you for purchasing the STI 4-Channel Receiver. Your satisfaction is very important to us.

How the Product Works

STI offers multiple wireless products designed to alert you of several different conditions. The
4-Channel Receiver allows you to monitor up to 4 different STI sensors at a single convenient
location. The STI wireless alert series uses a system to ensure other non STI sensors are not
enrolled. The STI 4-Channel Receiver allows you to latch any alert until reset.

Before You Start

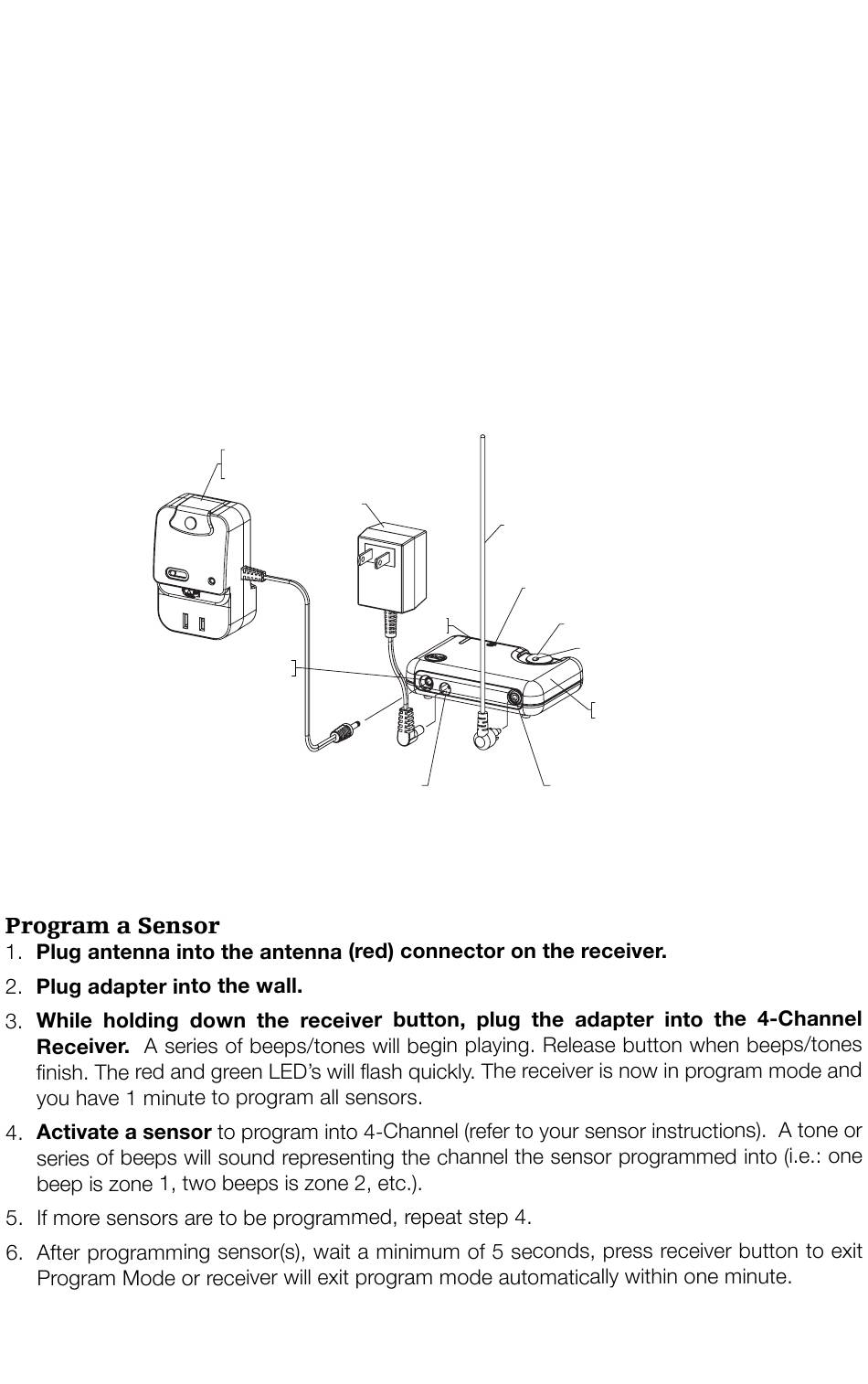

Make sure to read all instructions per task prior to beginning. Refer to this drawing to become
familiar with all parts.
Receives up to 4 different STI Wireless Alert Series Sensors
Installation and Operation Manual

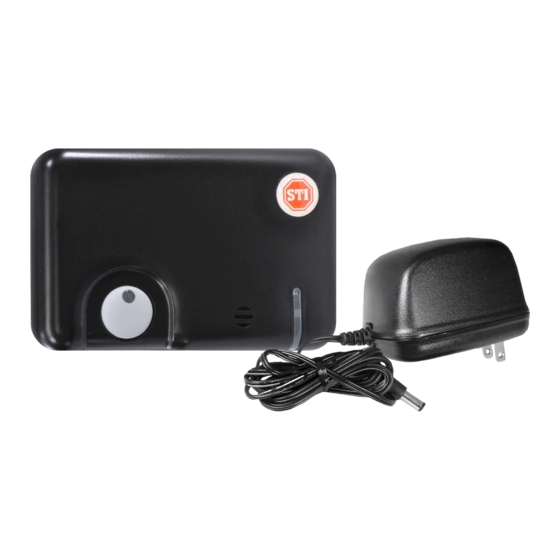

STI 4-Channel Receiver
Model: STI-34104
25' OR MORE
STI-30104
LAMP CONTROLLER
(OPTIONAL)
AC ADAPTER
TRANSISTOR
OUTPUT JACK
POWER CONNECTOR
4-Channel Receiver STI-34104
12'
MAX
3'OR
LESS
DRIVEWAY
RECEIVER ANTENNA
SPEAKER
GREEN
BUTTON
LED
ANTENNA CONNECTOR
PLACE SENSOR
TRANSMITTER 3' OR
LESS FROM EDGE OF
DRIVEWAY AND 25'
OR MORE FROM STREET.
RED LED
STI-34104
INDOOR RECEIVER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 34104 and is the answer not in the manual?

Questions and answers

Summary of Contents for STI 34104

  • Page 1 4-Channel Receiver allows you to monitor up to 4 different STI sensors at a single convenient 12’ PLACE SENSOR location. The STI wireless alert series uses a system to ensure other non STI sensors are not 3’OR TRANSMITTER 3' OR LESS enrolled.
  • Page 2 Receiver Modes of Operation Normal Operating Mode When a sensor is activated, short beeps will sound just before the alert tone to identify the activated sensor (i.e. 1 beep = channel 1, 2 beeps = channel 2 etc.), then the red LED on the receiver will flash indicating which channel has been alerted (i.e.
  • Page 3 Transistor Output Jack This output can trigger a low powered sensor such as the STI Lamp Controller (STI-30104). The output jack is a 1/8 inch mono audio plug (negative tip). Output will supply 75mA at 12VDC for three seconds. Optional Lamp Controller Accessory The lamp controller plugs into the transistor output jack and will turn on a lamp any time your sensor is triggered, for the selected amount of time.
  • Page 4 STI-6200WIR4 Wireless Fire Extinguisher Theft Stopper w/Receiver STI-V34104 4-Channel Voice Receiver STI-6400WIR Wireless Exit Stopper Door Alarm STI-34108 8-Channel Receiver STI-6400WIR4 Wireless Exit Stopper Door Alarm with Receiver STI-34188 8-Zone Relay Board STI-6517A Wireless Stopper Station Shield with Sound STI-34101 Solar Powered Driveway Monitor Sensor STI-6517B Wireless Stopper Station Shield with Sound &...
