STI -34108 Installation And Operation Manual

LEDs
Thank you for purchasing this fine product. Your satisfaction is very important to us. Please read this manual carefully to get the
most from your new product.

HOW THE PRODUCT WORKS

STI offers multiple wireless products designed to alert you of several different conditions. The STI 8-CHANNEL RECEIVER is a
433 MHz radio signal receiver that allows you to monitor up to 8 different STI devices at a single, convenient location. When
placed in enroll mode, it allows you to select 1 of 8 different zones that will represent your STI device(s) best, and enrolls it
when the monitor detects the STI device's wireless signal. The STI wireless device family uses a system that also ensures
other devices (not from STI) are not enrolled or detected. There are no concerns of accidental enrollment, alerts or crosstalk.
The RECEIVER allows you to choose which devices shall have a latching memory condition, when selected during enrollment.
It also allows you to select turning on a siren, sounding a chime, triggering a normally open or normally closed switch or
turning on an external 12 VDC output. The STI 8-CHANNEL RECEIVER also acts as a console repeater when paired with other
STI 8-CHANNEL RECEIVERS to receive wireless transmissions in up to 4 other areas over long distances or around disruptive
terrain.

BEFORE YOU START

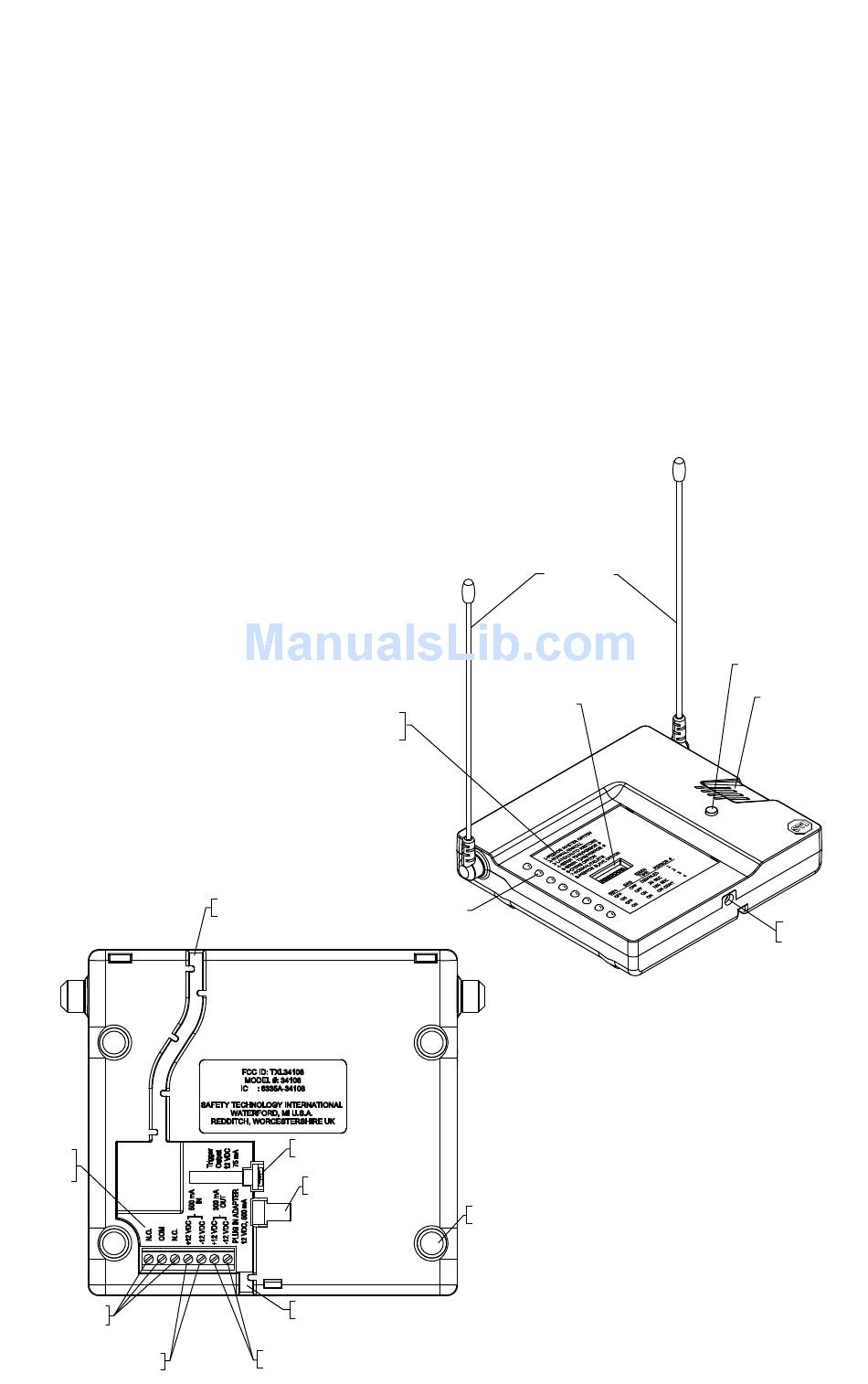

Refer to this drawing to become familiar with all the parts.
ZONES:
LEFT BUTTON
"CALL"
RIGHT BUTTON
"RESTORE"
NO ZONE:
ON and OFF
BUTTONS
EMBOSSED
INPUT AND
OUTPUTS
FORM C
SWITCH OUTPUTS
12 VDC INPUTS
TERMINALS 500mA
Installation and Operation Manual
STI 8-Channel Receiver
Model: STI-34108
EMBOSSED
PROGRAMMING
INSTRUCTIONS
WIRE ROUTE
OPTION 1
TRIGGERED OUTPUT PLUG
12VDC, 75mA, 3 SEC.
ADAPTER PLUG INPUT
12VDC, 500mA
WIRE ROUTE
OPTION 2
12 VDC OUTPUTS
TERMINALS 300mA
FRONT COVER
SCREW
ANTENNAS
SWITCHES 1-8
LEDs
SURFACE FEET (x4)
(WALL MOUNTING HOLES)
— 1 —
OFF OFF
ON OFF
OFF ON
ON ON
DISABLED
30 SEC
180 SEC
ON CONT
PUSH BUTTON
SPEAKER
FRONT COVER
SCREW
