4-Channel Voice Receiver
STI-V34104
EASY STARTUP
Install batteries in sensor,
plug in receiver and listen
to instructions.
HOW THE PRODUCT WORKS

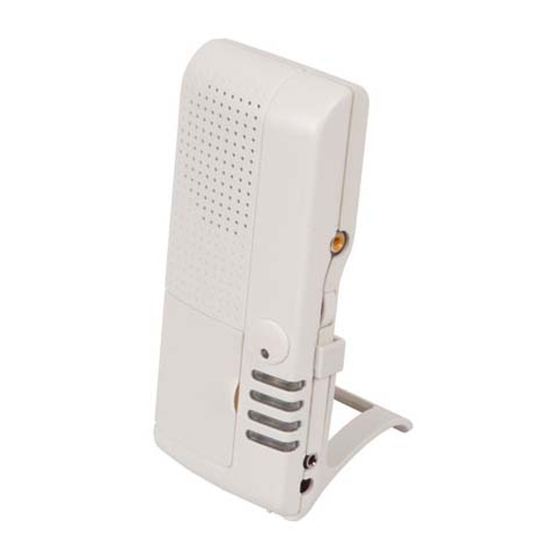

The 4-Channel Voice Receiver is a multipurpose long-range receiver that works
with a wide range of STI Wireless Alert Series sensors. Most products can
achieve up to 1,000' receiver range (line of site). Four zone indicators light up
to indicate a sensor has triggered. Selectable tones and voice messages are a
key feature. Sensors have default messages or program your own by choosing
up to four words or tones from a preprogrammed list. All voice messages are
available in English or Spanish. Receiver is intended for indoor use only.
Rely on STI
®
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for STI STI-V34104
Summary of Contents for STI STI-V34104
- Page 1 HOW THE PRODUCT WORKS The 4-Channel Voice Receiver is a multipurpose long-range receiver that works with a wide range of STI Wireless Alert Series sensors. Most products can achieve up to 1,000’ receiver range (line of site). Four zone indicators light up to indicate a sensor has triggered.
-
Page 2: Before You Start
· 12 VDC 500mA input · Switching/regulated Fig. 1 · UL Class II, FCC, C minimum Acknowledge Button · Resets all flashing red zones · Light flickers green as STI sensor signal is detected Program Switch Zone/Message Four Zone Light Indicators Selection Button ·... -
Page 3: Modes Of Operation
ZONE PROGRAMMING PROCEDURES Only receives wireless signals from the STI Wireless Alert Series products. Program up to 4 sensors or keyfobs. Does not allow programming into an occupied zone. Cannot program the same sensor into more than one zone. The unit will state, “Please change to normal mode if programming is completed.”... - Page 4 PROGRAMMING 1. Plug in receiver. 2. Listen to verbal voice commands. They will guide you through programming. Notes · Firmly press acknowledge button at any time to stop voice. · Make sure battery is installed in sensor. · Each sensor provides an initial sound (DONG). (See CHART 2 below) ·...
-
Page 5: Advanced Programming
ADVANCED PROGRAMMING FOR ALREADY PROGRAMMED SENSORS (DIP SWITCH 3-8) Dip Switches 3-8 provide access to all 63 messages/tones which can be assigned to any zone. Up to 4 messages/tones can be combined to create a custom message. See page 6, CHART 3, for Advanced Dip Switch Message Codes. - Page 6 ADVANCED DIP SWITCH MESSAGE CODES ALPHABETICAL (ENGLISH) ALPHABETICAL (ENGLISH) GROUPINGS DIP SWITCH LANGUAGE DIP SWITCH LANGUAGE 3 4 5 6 7 8 English Spanish 3 4 5 6 7 8 English Spanish GROUP 0 0 0 1 0 0 4-NOTE CHIME CARILLON DE 4 NOTAS 0 0 0 1 0 0 4-NOTE CHIME...
-
Page 7: Delete Sensor
Safety Technology International, Inc. warrants to the original consumer/purchaser that this product shall be free of defects in material and workmanship under normal use and circumstances for a period of one (1) year from the original date of purchase. Electronic warranty form at www.sti-usa.com/wc14. - 7 -... -
Page 8: Important Notice
Phone: 248-673-9898 • info@sti-usa.com • www.sti-usa.com Taylor House • 34 Sherwood Road • Bromsgrove, Worcestershire • B60 3DR • England Tel: +44 (0)1527 520 999 • info@sti-emea.com • www.sti-emea.com Unit 7A • Lockhead Avenue • Airport Business Park • Waterford • X91 HWF2 • Ireland info@sti-emea.com •...
