Back Panel Description

Back Panel Description

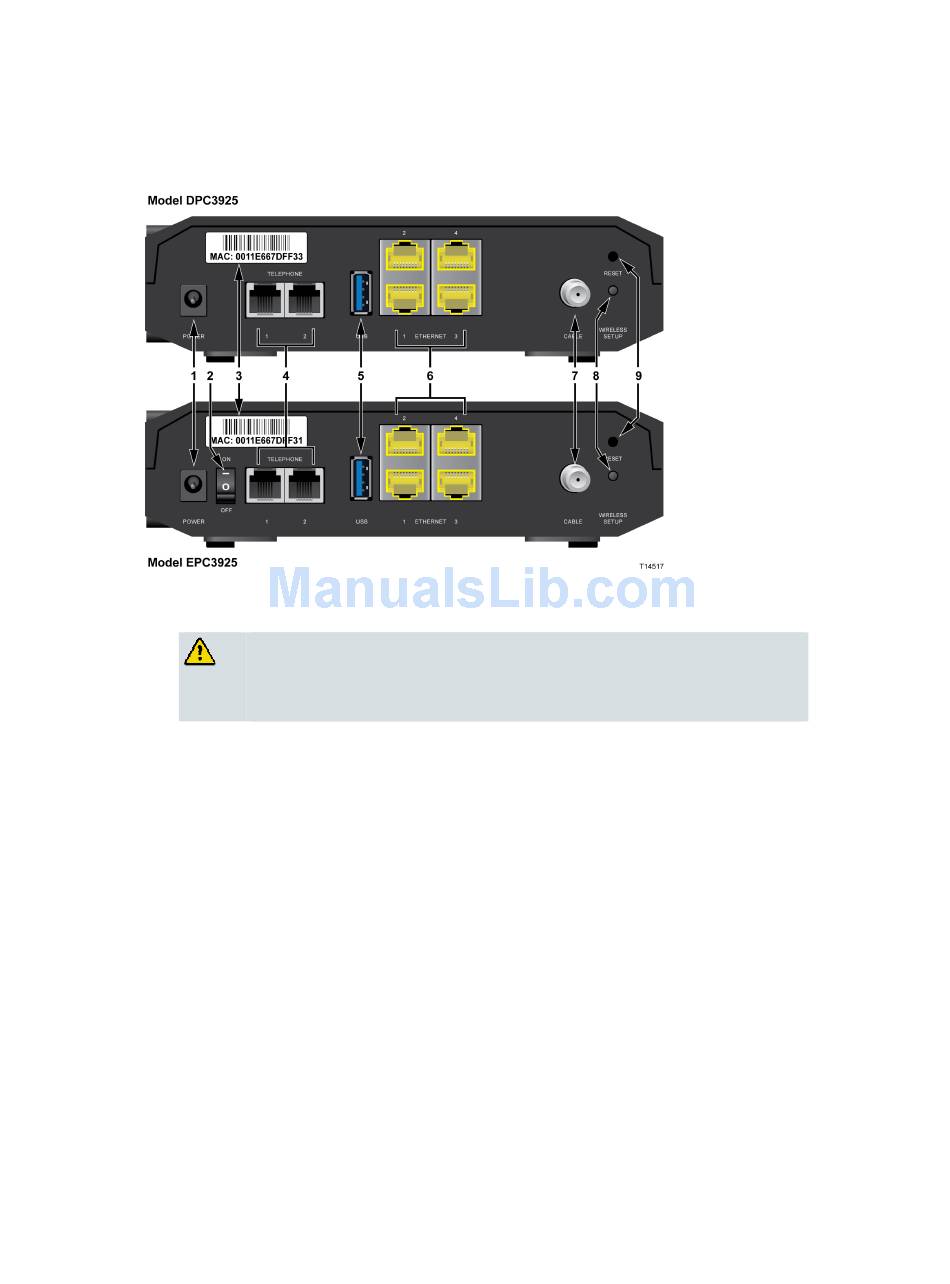

The following illustrations show the description and function of the back panel
components on the Cisco DPC3925 residential gateway.
1 POWER—Connects the residential gateway to the AC power adapter that is
provided with your residential gateway
2 ON/OFF SWITCH (European models only)—Allows you to power of the
residential gateway without removing the power cord
3 MAC ADDRESS LABEL—Displays the MAC address of the residential gateway
4 TELEPHONE 1 and 2—RJ-11 telephone ports connect to home telephone wiring
to conventional telephones or fax machines
5 USB—Connects to selected client devices
6 ETHERNET—Four RJ-45 Ethernet ports connect to the Ethernet port on your PC
or your home network
7 CABLE—F-connector connects to an active cable signal from your service
provider
16
CAUTION:
Avoid damage to your equipment. Only use the power supply
that is provided with your residential gateway.
