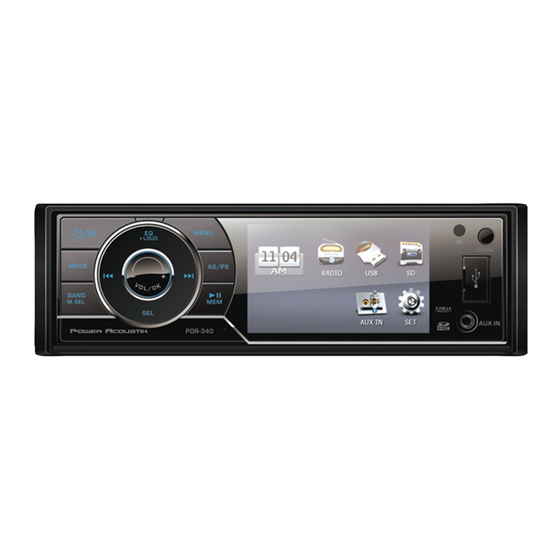

Power Acoustik PDR-340 Owner's Manual

Flip-down/detachable 3.4” monitor mp3/mp4 player am/fm radio built-in tv tuner (only for pdr-340t model)
Hide thumbs
Table of Contents

Advertisement

Quick Links

PDR-340/PDR-340T
Flip-down/Detachable 3.4" Monitor
MP3/MP4 Player
AM/FM Radio
Built-in TV tuner (only for PDR-340T model)
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new device.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDR-340 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Power Acoustik PDR-340

Summary of Contents for Power Acoustik PDR-340

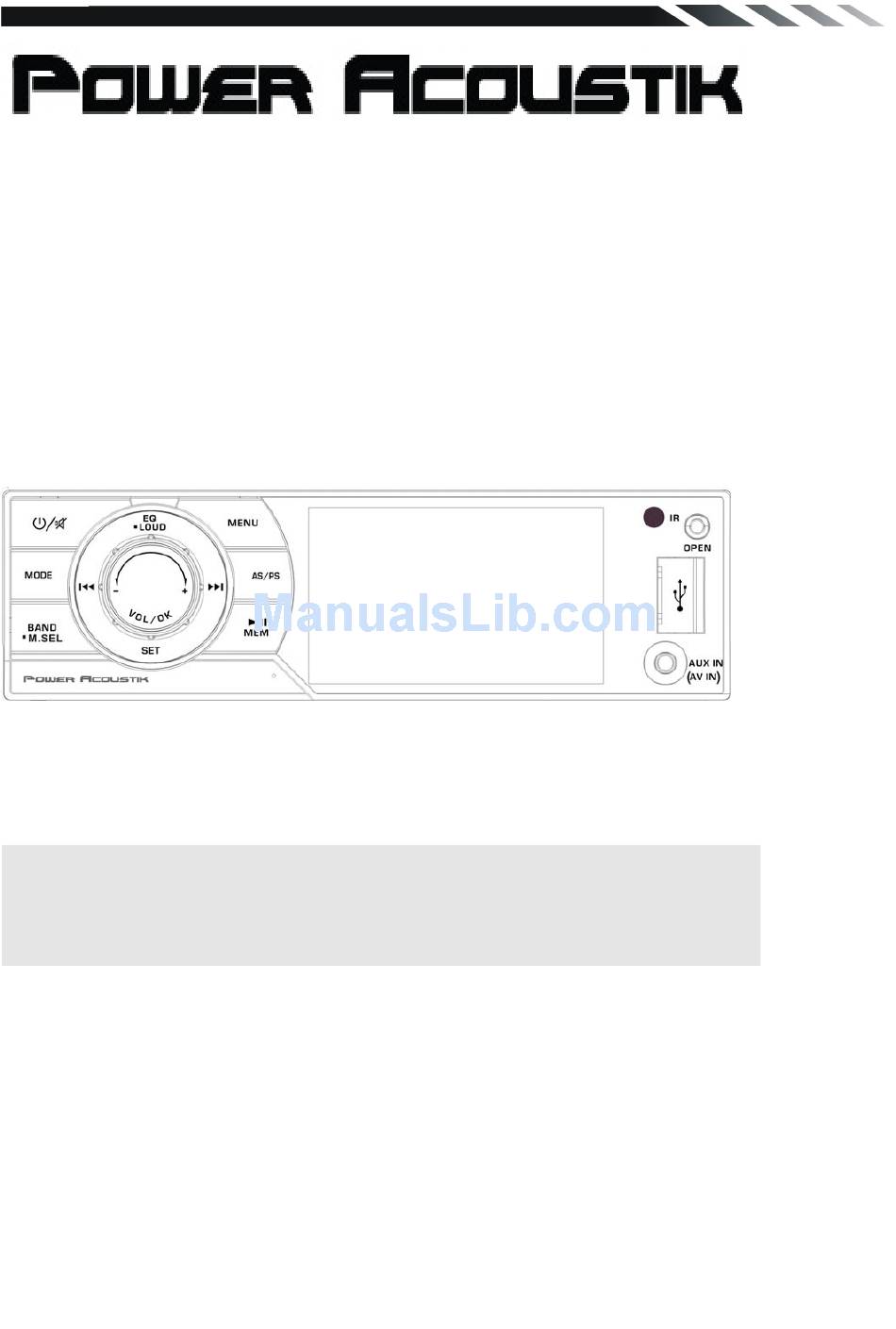

  • Page 1 PDR-340/PDR-340T Flip-down/Detachable 3.4” Monitor MP3/MP4 Player AM/FM Radio Built-in TV tuner (only for PDR-340T model) Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new device.

  • Page 2: Important Safeguards

    Important Safeguards ℃ Using the device at temperature below -10 may cause the breakage of the device. BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE! Read carefully through this manual to familiarize you with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

  • Page 3: Table Of Contents

    Contents Important Safeguards.......................2 Contents...........................3 Accessories..........................4 Installation/Un-Installation ......................5 Wiring Connections ........................6 Front panel..........................8 Inner panel ..........................8 Remote control.........................9 Remove battery........................9 Main Menu ..........................10 General Operation .........................10 Radio operation........................13 USB/SD/MMC Operation .......................14 TV Opeartion(only for PDR-340T model) ................15 Anti-theft system ........................16 Troubleshooting guide ......................17 Specification...........................18...

  • Page 4: Accessories

    Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt 5*20 (4) Screw 5*6 (5) Mounting Collar (6) Release Key (7) Screw 5*20 (8) Rubber Cushion Remote Control Warranty card ISO cable...

  • Page 5: Installation/Un-Installation

    Installation/Un-Installation First complete the electrical connections, and then check them for correctness. Installation This unit can be installed in any dashboard having an opening as （※） Lock lever shown on the picture. The dashboard should be 4.75 – 5.56 mm thick in order to be able to support the unit.

  • Page 6: Wiring Connections

    For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit. (Only for PDR-340) Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.
  • Page 7 (Only for PDR-340T) Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. 3.

  • Page 8: Front Panel

    Front panel 1） Power /Mute button 9） MENU button 2） Mode button 10） AS/PS button 3） Volume/OK button 11） Play/Pause, Memory button 4） 12） LCD Screen BAND / Media select /Radom button 13） IR sensor 5） SET button 14） OPEN button 6）...

  • Page 9: Remote Control

    Remote control 1: MENU 2: POWER 3: UP 4: BAND/M.SEL/RDM 5: ENTER 6: LEFT/SEEK-/FAST BACKWARD 7: DOWN 8: REPEAT/INT 9: AS/PS 10: MODE 11: DIGIT NUMBER 12: PLAY/PAUSE 13: MUTE 14: AUDIO 15: SUBTITLE 16: RIGHT/SEEK+/FAST FORWARD 17: VOLUME PLUS 18: SET 19: VOLUME MINUS 20: EQ/LOUD...

  • Page 10: Main Menu

    Main Menu The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, you can simply take knowledge of the features.
  • Page 11 In Video mode, when playing the video, press the OK button on the front panel, you will see the track number and running time on the screen Sound Adjustments Press the SEL button on the RC to select the audio settings consisting of following items: EQ: Select the digital sound effect USER→FLAT→CLASSIC→POP→ROCK BASS: Bass up/down.
  • Page 12 LONDNESS: Selecting loudness ON will emphasize the low frequency output. BEEP: Keypad sound setting. Display Bright: set the LCD screen brightness up or down Contrast: set contrast up or down Saturation: set saturation up or down General Clock hour: select 12-hour or 24-hour clock display mode.

  • Page 13: Radio Operation

    AV IN (OPTIONAL) Connect an optional AV cable to your external AV device (such as a video camera), then press the MODE button to switch to the AV mode. Note: If there is no external video input, the TFT displays “NO SIGNAL”.

  • Page 14: Usb/Sd/Mmc Operation

    USB/SD/MMC Operation USB Flash Memory To play MP3/ MP4/ WMA files from a USB flash memory, insert a USB/iPod flash memory into the USB port on the right side of the unit. The unit will play automatically MP3/MP4/ WMA/JPEG files. Or repeatedly press the MODE button to select USB mode.

  • Page 15: Tv Opeartion(Only For Pdr-340T Model)

    Select audio language During Video file playback, press AUIO button on the RC repeatedly to select the audio language to listen. (Available only with the Video file that support multi-language playback). Select subtitle language If your Video file supports multi-language subtitle, press SUB-T button on the RC repeatedly to switch among the supported language.

  • Page 16: Anti-Theft System

    Manual program (manual seek mode) Storage Select this menu item is to set the storage number. System Select this menu item is to set TV system: SECAM => NTSC =>PAL, press NTER button on the remote control to select. Audio Select this menu item is to set the TV sound system: When system settings PAL, press ENTER on remote or tap the screen button to select TV sound system: D/K=>M/N=>...

  • Page 17: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution If the power supply is properly connected General The car ignition is not on. to the car accessory switch the ignition No power The fuse is blown. key to “ACC”. Replace the fuse. Volume is in minimum. Adjust volume to a desired level.

  • Page 18: Specification

    Specification General Power supply: 12 V DC Current consumption: Max. 10 A Maximum power output: 52W x 4 channels (Max.) Compatible formats: MP3/MP4/WMA/ JPEG/RMVB Dimensions (W x D x H) / 178 x 175 x 50 mm / 1.8 kg weight: ESP function: 40 sec.
