- Page 1 7" Wide Touch Screen In-Dash Fully Motorized TFT Monitor /DVD/AM/FM Operating manual...
-
Page 2: Safety Information
SAFETY INFORMATION PLEASE READ COMPLETELY AND BECOME FAMILIAR WITH THE CONTENTS OF THIS MANUAL BEFORE INSTALLATION AND OPERATION OF THIS UNIT, AND KEEP IT CAREFULLY FOR FUTURE REFERENCE. This unit is a class 1 laser product. The laser beam may cause hazardous radiation if exposure to laser system directly. - Page 3 Cautions: To reduce the risk of fire or electric shock, and annoying interference, use only the recommended accessories. While driving, keep the volume level low enough to be aware of road and traffic conditions. Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down before starting playback.
-
Page 4: Features
FEATURES - Fully Motorized Screen Telescopes Out And Up Including Front To Back Angling - Drop Down Detachable Front Panel For Invisible DVD Insertion Slot - Electronic Touch Screen Functions Include DVD, Radio, USB, & MP-3/4 - Front Panel Display When The Monitor Is Closed - Electronic Touch Screen Functions Include OSD Functions - DVD/DVD-RW/CD/CD-R/CD-RW/MP-3/MP-4/Divx - Menus Can Be Displayed On Screen Via OSD (Fourteen Languages) -
Page 5: Table Of Contents
TABLE OF CONTENTS Safety Information………………………………………………….………………………1 Features……………………………………………………………….………………………3 Table of Contents…………………………………….…………….………………………..4 Accessories………………………………………….…….………………………………….5 Unit Installation………………………………………….….………………………………6 Unit Removal…………………………………………….…….……………………………..8 Wiring Connection…………………………………………..……………………………….9 Front Panel………………………………………………………..…..……………………12 Remote Control……………………………………………………………………………17 Basic Operation……………………………………………………………………………22 Touch Screen Operations…………………………………………………….……………24 Touch Screen Calibrate……………………………………….………………………24 Main Menu…………………………………………………….………………………25 Radio Operations…………………………………………………….……………….26 DVD Operations…………………………………………………….……………….29 USB Operations…………………………………………………….………………..31 iPod Operations…………………………………………………….………………..32 AV IN Operations…………………………………………………….………………34 AUX IN Operations…………………………………………………….………………35 CDC Operations…………………………………………………….…………….…36 System Setup…………………………………………………….……………….……37... -
Page 6: Accessories
ACCESSORIES Bolt Steel Bar x 1 M5X5 Screws x 4 Connecter Wire x 1 Trim Bezel x 1 Remote Control x 1 Operational Manual x 1 Mounting Sleeve x 1 Keys x 2 Box x 1 Nut M5 x 1 AUX Cable x 1... -
Page 7: Unit Installation
UNIT INSTALLATION Please read all of the instructions before beginning the installation. Recommend having your unit installed by a professional installation shop. Tools and Supplies: You will need these tools and supplies to install your unit: - Torx type, flat-head and Philips screwdrivers - Wire cutters and strippers - Tools to remove existing radio (screwdriver, socket wrench set or other tools) - Electrical tape... - Page 8 ● Securing the Unit to the Mounting Bracket. Installation Method 1. Install the front panel into the unit. 2. Bend the claws outward for tight fit, if necessary. Install the Mounting Box into the dashboard, tighten the unit in place. 3.
-
Page 9: Unit Removal
UNIT REMOVAL 1. Detach the front panel. 2. Insert the keys that supply to the unit at both sides of the unit (shown as illustrated) until pull the keys to make it possible to remove the unit from the dashboard. -
Page 10: Wiring Connection
WIRING CONNECTION Cautions: -To prevent short circuits, remove the key from the ignition and disconnect the terminal of the battery. -Make the proper input and output cable connections for each unit. -Connect the wiring harness cables in the following order: ground wire, battery wire, ignition wire. - Page 11 Wiring Diagram NOTE: 1, Plug the external microphone input into the MIC-IN jack for Bluetooth. 2, Please separate Battery Units before setting products to prevent from fire and electric shock. Mounting the antenna near to a radio antenna will result in noise. In this case, consult your dealer concerning mounting location.
- Page 12 Wiring Diagram...
-

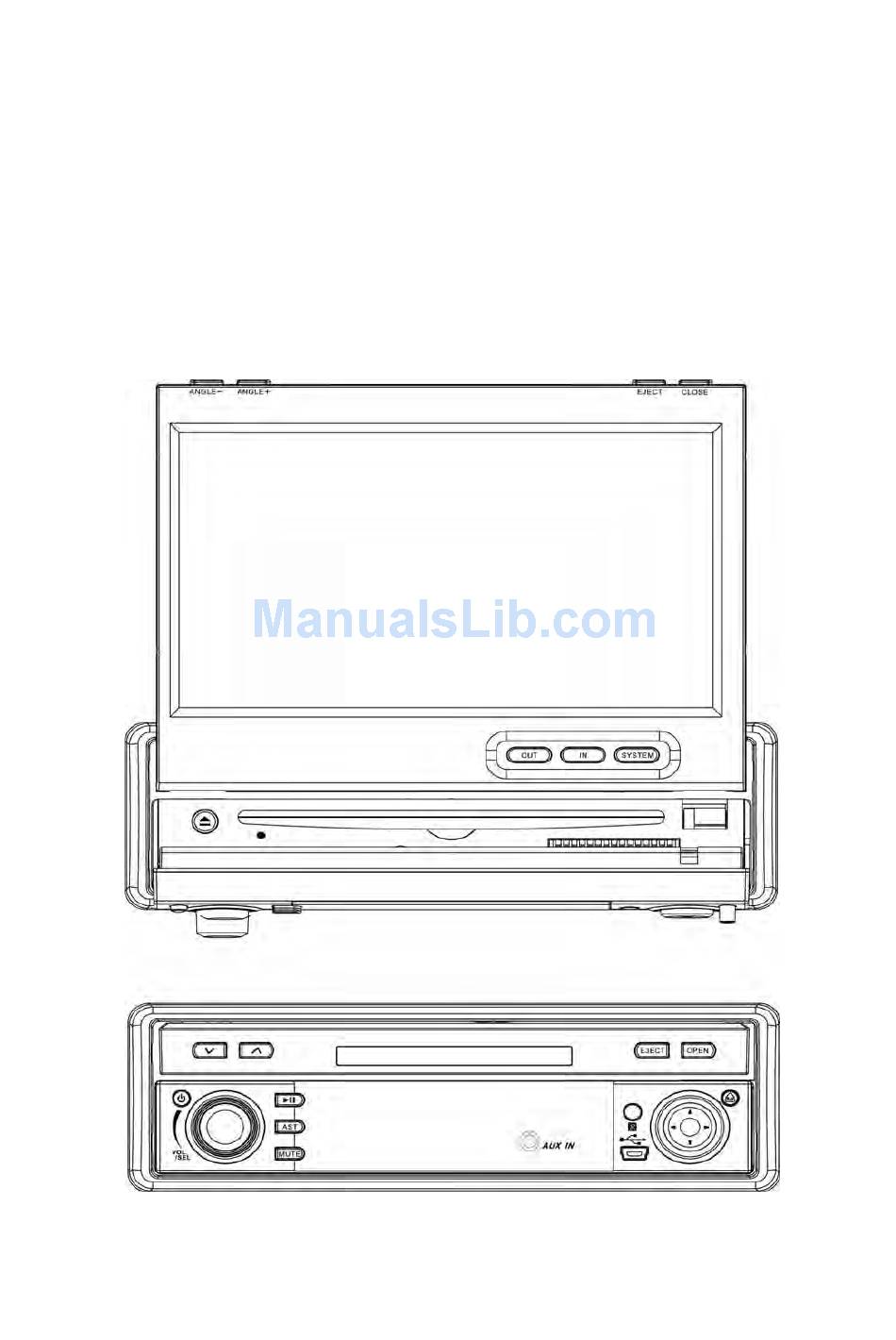

Page 13: Front Panel
FRONT PANEL 1. ANGLE - 11. MINI USB 2. ANGLE + 12. LEFT / UP / RIGHT / DOWN / ENTER / BAND 3. EJECT 13. REL 4. OPEN / CLOSE 14. EJECT 5. POWER / SOURCE 15. RESET 6. VOLUME / SEL 16. - Page 14 1. [ANGLE -] / 2. [ANGLE +] Adjust the view angle of the monitor to choose the best displaying effect. 1- Continual angle adjustment Hold on pressing the [ANGLE +] / [ANGLE -] buttons to adjust the angle of TFT monitor upward / downward by continual increasing / decreasing.
- Page 15 7. [MUTE] Press the [MUTE] button to switch off the sound; press it again to resume to the previous volume level. 8. [AST] Press to seek radio station automatically under RADIO Modes. 9. [ ll] Press to pause playback when playing; press again to continue playing. 10.
- Page 16 There are 4 steps to move the monitor forward / backward totally. 18. [SYSTEM] Press to enter / exit the System Parameter Setup menu. 19. AUX IN Connect an external audio device to this jack to listen to the device through your car speakers.
- Page 17 FRONT PANEL DISPLAY 1. EQ Indicator: It turns on to indicate the POP/CLASSIC/JAZZ/ROCK when corresponding setup. It turns off when custom setup. 2. Disc Icon: It rotates when playing disc under the DVD Mode. 3. Main Display Area: Display the information such as working mode, characters, playback time & number of track, radio frequency etc.
-
Page 18: Remote Control
REMOTE CONTROL 1. POWER / SOURCE 13. F.FWD 25. SUBTITLE 2. MUTE 14. SLOW 26. PREVIOUS 3. NUMBER BUTTONS 15. RANDOM 27. RIGHT 4. MENU 16. ZOOM 28. NEXT 5. AUDIO 17. SYSTEM 29. ANGLE 6. DISPLAY 18. OPEN / CLOSE 30. - Page 19 1. [POWER/SOURCE] Same functions as key on front panel. 2. [MUTE] Press the [MUTE] button to switch off the sound; press it again to resume to the previous volume level. 3. [NUMBERS 0~9] For 1~6, press these buttons to store the current radio station or recall the stored station under the Radio Mode.
- Page 20 9. [BAND/ENTER] In radio mode, press the [BAND] button to switch the wave band as following: FM1 - FM2 - FM3 - AM1- AM2 - FM1 Press vertically to switch the TV as following: NTSC – PAL/BG – PAL/I – PAL/DK – NTSC In DVD mode, press the [ENTER] button to confirm the Setup Menu.
- Page 21 23. [PBC/AST] Press to turn the PBC function on / off when playing VCD disc. Hold on pressing to seek radio station / TV channel automatically under RADIO / TV Modes. 24. [TITLE] Press to enter the title menu when playing DVD disc. 25.
- Page 22 REPLACING THE BATTERIES If the remote control has no function or if the operating range reduced, replace the old battery with new one. 1. Pull out the battery holder. Follow the arrow 1 slide it to the right toward the battery while at the same time pull the battery holder away from the remote control.
-
Page 23: Basic Operation
BASIC OPERATIONS Startup Press the [POWER/SOURCE] button on the panel or remote control to startup the power, the TFT monitor will spread out automatically and the system return to the working Mode when last turn off. Turnoff Hold on pressing the [POWER/SOURCE] button on the panel or remote control to turnoff the power, the TFT monitor will retract automatically. - Page 24 Auto Antenna Control Connect the auto antenna control wire AUTO_ANT (see Wiring Diagram); the antenna will lift when the unit startup; it will descend when the unit turnoff. Brake Control It is necessary to connect the Brake Control wire to the Hand-brake switch of the car. While driving, the TFT monitor will display the alarm picture (see as follows) in order to ensure the safety.
-
Page 25: Touch Screen Operations
TOUCH SCREEN OPERATIONS TOUCH SCREEN CALIBRATE When “Power Off”, press the buttons 1, 2, 3, 4, 5, [BAND] of remote control to enter the CALIBRATE page: To touch the points from 1 to 5 until the points change to brighter by using a ballpoint pen or pencil. -
Page 26: Main Menu
MAIN MENU page of main menu: Touch the icon “MORE” to enter the 2... -
Page 27: Radio Operations
RADIO OPERATIONS Touch the icon “RADIO” to enter the 1st operation page of RADIO Mode: 1~6. STORED CHANNEL Manual Store Radio Station Hold on touching the icon, you can store current radio frequency to the stored channel. For example, the current frequency is 98.5MHZ, by hold on touching the icon 1, you can store the radio station of 98.5MHZ to the channel 1. - Page 28 10. BAND Touch the icon to switch the FM/AM wave band as following: FM1 - FM2 - FM3 - AM1- AM2 - FM1 To press the [BAND] button of panel or remote control performs same operation. 11. NEXT PAGE Touch the icon to enter the 2 page of RADIO Mode: 1.
- Page 29 1. ASM Seeking and store the stations 1. Hold on touching the icon to seek stations with the strongest signal from the lowest frequency point in the entire wave bands; press any button to stop seeking. After seeking, the former stored stations will be instead. 2.
-
Page 30: Dvd Operations
DVD OPERATIONS Touch the icon “DVD” to enter the DVD Mode if disc inside. The unit will switch to DVD Mode automatically if loading disc. The unit will switch to RADIO Mode automatically if ejecting disc. 1st operation page of DVD Mode: 1. - Page 31 7. STOP During movie playback, touch the icon once; the DVD player memorizes the location where you stopped (touch the [PLAY] icon to resume playing from the memorized location). If you touch the icon twice, the playback will start from the beginning of the disc when you touch the [PLAY] icon.
-
Page 32: Usb Operations
USB OPERATIONS Touch the icon “USB” to enter the USB Mode if USB connected. The unit will switch to USB Mode automatically if connecting USB. When disconnecting USB, the unit will switch to RADIO Mode automatically if there is no disc in the unit; and the unit will switch to DVD Mode automatically if there is a disc inside. -
Page 33: Ipod Operations
IPOD OPERATIONS Touch the icon “IPOD” to enter the IPOD Mode if iPod connected. The unit will switch to IPOD Mode automatically if connecting iPod. The unit will switch to RADIO Mode automatically if disconnecting iPod. NOTE: It is available for iPod operations with an additional iPod cable which is optional accessory. - Page 34 11. PLAY / PAUSE Touch the icon to play or pause the disc. To press the [PLAY/PAUSE] button of panel or remote control performs the same operation. 12. VIDEO Touch the icon to switch to the VIDEO operation. 13. MENU Touch the icon to return the main menu.
-
Page 35: Av In Operations
AV IN OPERATIONS Touch the icon “AV IN” to enter the AV IN Mode: 1. MUTE Touch the icon to switch off the sound; touch it again to resume to the previous volume level. 2. EQ The user can set to adjust the audio output to your preference: USER –... -
Page 36: Aux In Operations
AUX OPERATIONS Touch the icon “AUX” to enter the AUX Mode: 1. MUTE Touch the icon to switch off the sound; touch it again to resume to the previous volume level. 2. EQ The user can set to adjust the audio output to your preference: USER –... -
Page 37: Cdc Operations
CDC OPERATIONS Touch the icon “CDC” to enter the CDC Mode if CD/DVD changer connected: 1. The playing DISC number 2. D-DOWN / 3. D-UP Touch the icon to change the next / previous disc to play. 4. PREV / 5. NEXT Touch the icon to go to the pervious / next chapter, track or song. - Page 38 10. MENU Touch the icon to return the main menu. 11. EXIT Touch the icon to exit the TOUCH ICONS display. NOTE: Touch the “CDC” icon to enter the following page if the CD/DVD changer not connected. 1. INFORMATION It indicates that the unit does not connect the CD/DVD changer. 2.
-
Page 39: System Setup
SYSTEM SETUP Touch the icon “SETUP” or press the [SYSTEM] button of panel to enter the SETUP of system parameters: 1. SYSTEM SETUP 2. VIDEO SETUP 3. AUDIO SETUP 4. MORE AUDIO SETUP 5. CLOCK SETUP Touch the icon 1~5 to select the main menus directly. 6. - Page 40 SYSTEM SETUP RADIO AREA: USA – JAPAN – OIRT – EUROPE – ASIA – USA DEFAULT: the unit will restore all default settings of Sound Parameter, Picture Parameter & Tuner Parameter. VIDEO SETUP BRIGHTNESS: 0 ~ 64 CONTRAST: 0 ~ 64 COLOR: 0 ~ 64 HUE:...
- Page 41 AUDIO SETUP BASS: - 15 ~ + 15 TREBLE: - 15 ~ + 15 BALANCE: L 15 ~ R 15 FADER: F 15 ~ R 15 MORE AUDIO SETUP SUB-WF FRQ: 80HZ – 120HZ – 160HZ – OFF – 80HZ SUB-WF VOL: 0 ~ 15...
- Page 42 CLOCK SETUP CLOCK: 12H / 24H DISPLAY: ON / OFF HOUR: 00 ~ 23 MINUTE: 00 ~ 59...
-
Page 43: Dvd Setup Menu
DVD SETUP MUNE SETUP MENU OPERATION Press the [SETUP] button of remote control to enter the DVD SETUP Menu. Press the [<] / [>] buttons to switch the main menus as following: SYSTEM – LANGUAGE – AUDIO – VIDEO – SPEAKER – DIGITAL Press the [∧] / [∨] buttons to enter the submenus from main menus. - Page 44 SYSTEM MENU TV SYSTEM Following options are available for the TV Display: NTSC SCREEN SAVER Select ON or OFF. VIDEO Following options are available for the TV Display: INTERLACE-YUV TV-RGB P-SCAN YPBPR S-VIDEO TV TYPE Following options are available for the TV Display: 4 : 3 PS 4 : 3 LB 16 : 9...
- Page 45 LANGUAGE SETUP OSD LANGUAGE Following options are available for the OSD LANGUAGE: ENGLISH GERMAN SPANISH FRENCH PORTUGUESE ITALIAN RUSSIAN DUTCH SWEDISH KOREAN DANISH NORWEGIAN POLISH HUNGARIAN AUDIO LANGUAGE Following options are available for the AUDIO LANGUAGE: ENGLISH GERMAN SPANISH FRENCH PORTUGUESE ITALIAN RUSSIAN...
- Page 46 AUDIO SETUP AUDIO OUT Following options are available for the AUDIO OUT: SPDIF / OFF SPDIF / RAW SPDIF / PCM Following options are available for the KEY: VIDEO SETUP BRIGHTNESS Following options are available for the BRIGHTNESS:...
- Page 47 CONTRAST Following options are available for the CONTRAST: Following options are available for the HUE: SATURATION Following options are available for the SATURATION: SPEAKER SETUP DOWNMIX Following options are available for the DOWNMIX: LT / RT Stereo BASS MODE Following options are available for the BASS MODE: ALL LG SPK ALL SM SPK MIXED SPK...
- Page 48 DIGITAL SETUP OP MODE Following options are available for the OP MODE: LINE OUT RF REMOD DYNAMIC RANGE Following options are available for the DYNAMIC RANGE: FULL 6 / 8 4/ 8 2 /8 DUAL MONO Following options are available for the DUAL MONO: STEREO MONO L MONO R...
-
Page 49: Troubleshooting
TROUBLE SHOOTING If any of problem persists after checking the below list, Please consult your nearest service dealer. Never attempt to disassemble and repair unit personally. Problem Cause Corrective Action GENERAL Install new fuse with correct rating ACC Fuse blown Install new fuse with correct rating Unit will not power Car battery fuse blown... - Page 50 Corrective Action Problem Cause TFT MONITOR Turn TFT Auto open on Monitor does not TFT Auto Open is turned of open automatically Incorrect connection to parking Check wiring and correct brake wire PARKING is activated Stop vehicle in safe place and apply No image parking brake...
- Page 51 Problem Cause Corrective Action Interruption Disc is dirty or scratched Clean disc or replace occurred during playback File is damaged/bad recording Recreate disc with good files Incorrect playback Message is longer than LCD can message display displayed Error Messages Message Cause Corrective Action Displayed...
-
Page 52: Specifications
SPECIFICATIONS GENERAL Supply Voltage : 14.4 V DC (10.8-16 V DC Allowable) : 4 Ω Load Impedance Max Power Output : 50 W x 4 : ≥ 10dB Bass 100Hz : ≥ 10dB Treble 10KHz Dimension (approx) : 187 x 188 x 60 mm (d/w/h) Mounting (approx) : 160 x 178 x 50 mm (d/w/h) FM TUNER... -
Page 53: Disc Notes
DISC NOTES ■ Disc formats supported by this player Handling and Cleaning ● Dirty, dusty, scratched or warped discs will cause misoperation. ● Do not place stickers or make scratches on discs. ● Do not warp discs. ● A disc should always be kept in its case when not in use to prevent from damage. ●...
