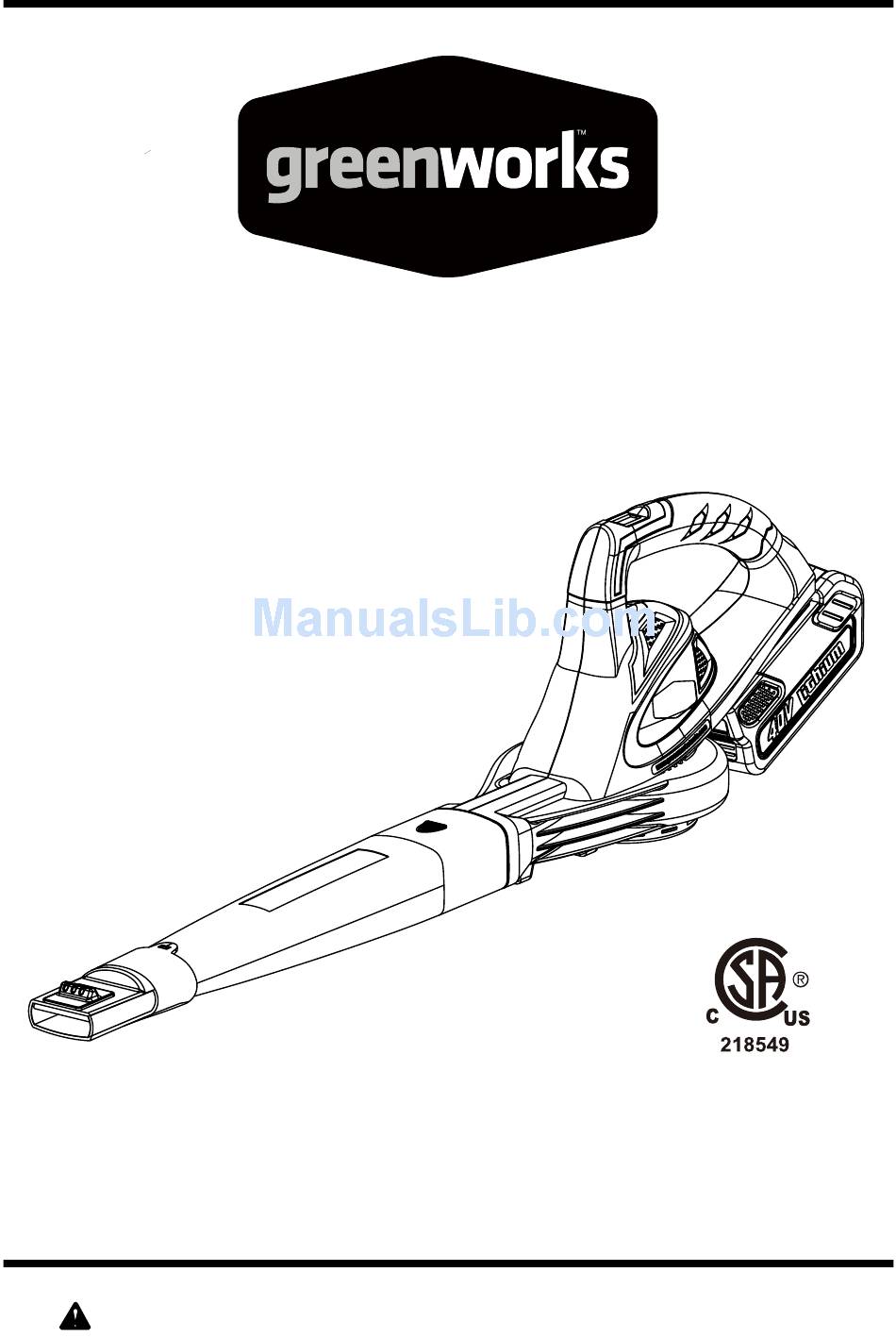

- Page 1 40V LITHIUM-ION CORDLESS BLOWER 24102 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Product specifications ......................2 General safety rules ......................3-5 Symbols ..........................6-7 Know your blower ........................ 8 Assembly instruction ....................... 9-10 Operation ..........................11 Battery charger........................12-13 Maintenance...........................14 Environmentally safe battery disposal..................15 Troubleshooting........................16 Warranty........................17 Exploded View ........................18 Parts List..........................1 9 Notes .......................... -
Page 3: General Safety Rules
GENERAL SAfETy RULES W A R N I N G Read and understand all instructions before using this product. failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. - Page 4 • Remove or disconnect battery before servicing, cleaning or removing material from the gardening appliance. • Use only Greenworks batteries (Model #29282 or 29302.) • Store idle appliances - When not in use, blower should be stored indoors in a dry, locked place out of the reach of children.
-
Page 5: General Safety Rules
GENERAL SAfETy RULES • If the power supply cord is damaged, it must be replaced only by the manufacturer or by an authorized service center to avoid risk. • Do not point the blower nozzle in the direction of people or pets. •... -
Page 6: Symbols
SyMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz frequency (cycles per second) -
Page 7: Symbols
SyMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. -
Page 8: Know Your Blower
KNOW yOUR BLOWER Variable switch Nozzle Two Speed High Velocity Tip 40V Lithium-Ion battery Fig. 1 KNOW YOUR BLOWER ( See Figure 1. The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. -
Page 9: Assembly Instruction
ASSEMBLy INSTRUCTION BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the trimmer for the first time, place the battery pack in the battery charger and charge. Make sure to read all safety precautions, and follow the instructions in the Battery Charger section. To remove (See Figure 2.) 1. - Page 10 ASSEMBLy INSTRUCTION Nozzles (See Figure 3.) The two nozzles extend the reach of the blower. for blowing (See Figure 3.): 1. Align the widest end of the large nozzle (1) with the front opening on the blower (2). 2. Slide the nozzle over the blower outlet opening until the latch on the blower is inserted into the opening on the nozzle.
-
Page 11: Operation
OPERATION STARTING/STOPPING THE BLOWER (See Figure 4.) The blower is equipped with a Variable switch. 1. Install the battery pack. (Refer to Installing the battery pack) 2. Roll the speed dial forward (A) until a positive click is heard and the blower turns ON. 3. -
Page 12: Battery Charger
BATTERy CHARGER CHARGING PROCEDURE (See Figure 5) NOTE: The battery is not shipped fully charged. It is recommended to fully charge before first use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time.. - Page 13 BATTERy CHARGER W A R N I N G If the battery is inserted into the charger when warm or hot, the CHARGING LED indicator light on the charger may switch on and illuminate GREEN. If this occurs allow the battery to cool outside of the charger from approximately 30 minutes.
-
Page 14: Maintenance
MAINTENANCE W A R N I N G In order to avoid personal injury and the risk of fire and electric shock, remove the battery pack before adjusting, inspecting, or cleaning the blower. Cleaning Remove the battery pack. 1. Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air vents free of obstructions, sawdust, and wood chips. -
Page 15: Environmentally Safe Battery Disposal
ENVIRONMENTALLy SAfE BATTERy DISPOSAL The following toxic and corrosive materials are in the batteries used in this blower battery pack: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor fails to start Battery is not secure. To secure the battery pack, make sure when switch trigger the latches on the top of the battery pack is depressed. snap into place. Battery is not charged. Charge the battery pack according to the instructions included with your model. -
Page 17: Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 18: Exploded View
EXPLODED VIEW... -
Page 19: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 32201517 Hex. Screw 31301213 Housing assembly 34103213 Right upper decoration 34104213 Right lower decoration 31101213 36103207 Motor 3330546-1 Motor fixing plate 33303505 Screw secure assembly 3110273 fan assembly 36302203-2 Blowing pipe button 34105213 blowing pipe 31103213 Blowing tube... -
Page 20: Notes
NOTES... - Page 21 NOTES...
- Page 22 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 01 (01-13-12) Printed in China on 100% Recycled Paper...
