- Page 1 Flytec 6005/6010 Operating Instructions 2.0en 14.11.2007...
-
Page 2: Table Of Contents
Operating Instruction Flytec 6005/6010 Contents: Instrument layout ............................2 Keyboard layout................................ 3 Operating Philosophy ................Fehler! Textmarke nicht definiert. Run-Mode ................................. 4 Set-Mode .................................. 4 Option-Mode ................................4 Switching the Instrument ON / OFF......................5 Switching the Instrument On............................. 5 Switching the Instrument OFF ..........................5 The Altimeter..............................6... -
Page 3: Instrument Layout

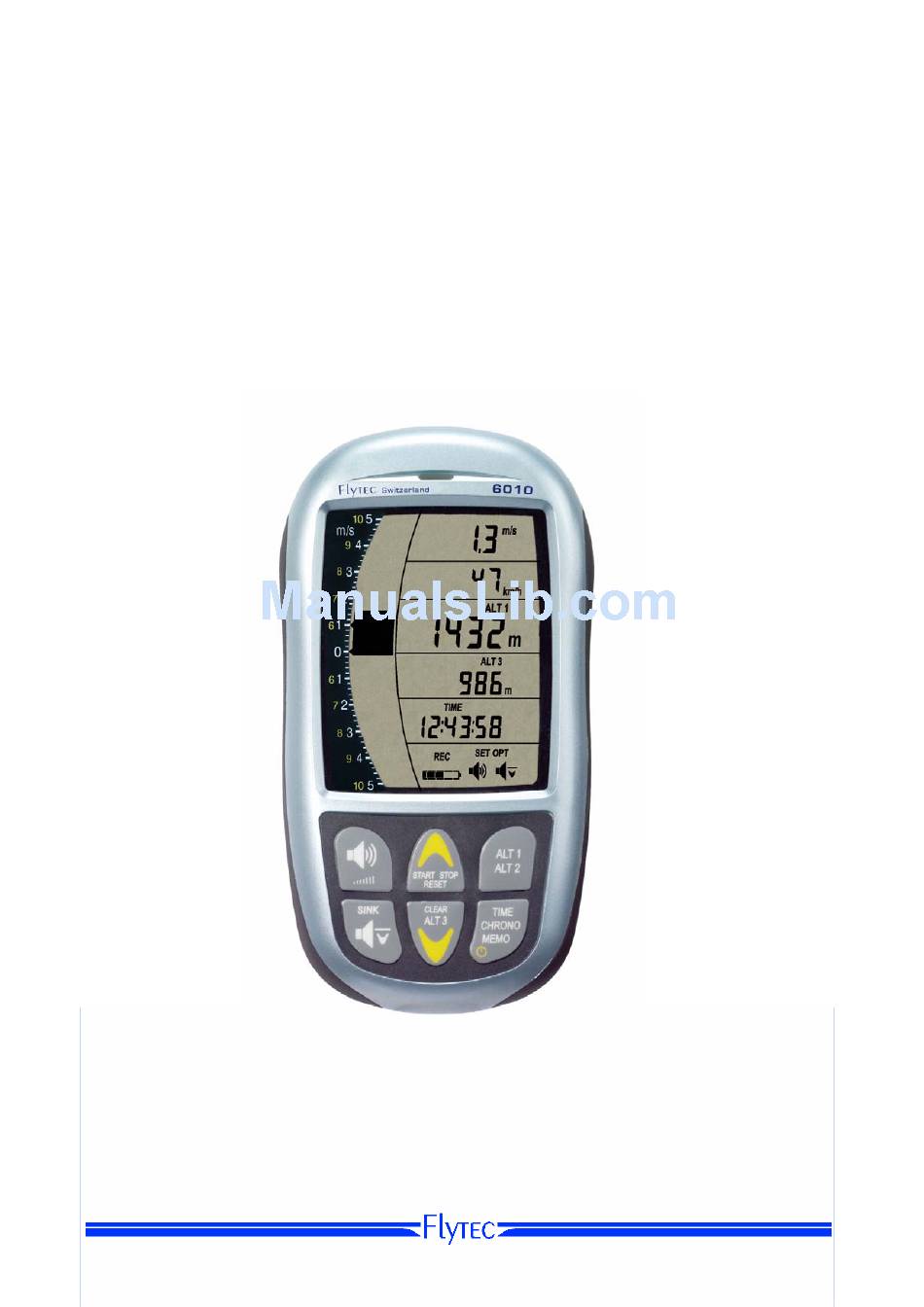

Operating Instructions Flytec 6005/6010 Instrument layout Integrated Digital Vario Display Speed/Temperature Display Barometric Altitude 1 or Altitude 2 PC Interface Port (6010 only) Relative Altitude 3 Clock/Stopwatch/Flight Timer Set/Opt Mode Indicator Sink Alarm Indicator Vario Volume Indicator Keypad Battery Status... -
Page 4: Keyboard Layout
Operating Instruction Flytec 6005/6010 Operating Philosophy Flytec’s philosophy is to produce user-friendly instruments. When you turn on the instrument the instrument will go through a self test and proceed to the Run-Mode. A quick press of each key in the Run-Mode lets you access the main functions of the instrument. -
Page 5: Run-Mode
Operating Instructions Flytec 6005/6010 Run-Mode During normal use the instrument is in Run-Mode. In this mode the instrument shows analog and digital sink/climb rate, airspeed (if the optional sensor is plugged in), temperature, altitude, altitude difference, time, battery condition and the activated acoustic signals. -
Page 6: Switching The Instrument On / Off
3 to 1. You will hear a beep and see appear on the display when the process is complete. The 6005/10 will automatically power down if no flight activities are detected within 60 minutes of power on. This time period can be altered on the 6010 with FlyChart. -
Page 7: The Altimeter
40 meters. Altimeter Displays The 6005/6010 is equipped with three independent Altimeters: ALT1 Absolute altimeter ALT2 Absolute or Relative altimeter ALT3 Differential altimeter... -
Page 8: Altimeter Overview
QNH available from weather reporting stations or flight service. Important: ALT1 set is only available if The 6005/10 has not recognized the beginning of a flight (flight acceptance). ALT1 can only be adjusted to current absolute height, and cannot be adjusted more or less than 3,000 feet of the current displayed height. -
Page 9: Option-Mode Alt1
Operating Instructions Flytec 6005/6010 Option-Mode ALT1 Press 3 sec. From Set-Mode, press the Altitude Key for three ALT1 seconds to bring the instrument into Option-Mode. After making each change, use a quick press on this key to confirm and go to the next option, or wait three seconds to keep your changes and return to Run-Mode. -
Page 10: Altimeter 2 (Alt2) Absolute / Relative
Operating Instruction Flytec 6005/6010 Altimeter 2 (ALT2) Absolute / Relative Altimeter 2 can be used as an absolute or as a relative altimeter. When used as an absolute altimeter, ALT2 is coupled with ALT1 and it functions in precisely the same way as altimeter ALT1. -
Page 11: Option-Mode Alt2
Operating Instructions Flytec 6005/6010 Press 3 sec. Option-Mode ALT2 From Set-Mode, again press the Altitude Key for three ALT2 seconds to bring the instrument into Option-Mode. ALT2 Option 1: [Set altitude units] Unit Use the Arrow Keys to set the units of altitude to feet or meters. -
Page 12: Variometer
For the soaring pilot the variometer is the most important element of the instrument, since it tells the pilot if he is climbing or descending. The 6005/10 will tell you, both acoustically and visually, if you are climbing, how fast you are climbing, as well as the rate of change in your ascent. -
Page 13: Acoustic Vario
Operating Instructions Flytec 6005/6010 Acoustic Vario The 6005/6010 will beep when you are climbing at a rate greater than a predetermined threshold. As your climb rate increases, as shown in the analog vario display, the frequency and pitch of the beep increase linearly. -
Page 14: Option-Mode Vario
Operating Instruction Flytec 6005/6010 Option-Mode Vario Press 3 sec. Press the Vario Key for three seconds while in Set-Mode to bring the instrument into Option-Mode. Option 1: [Set units] Unit Use the Arrow Keys to set the units for the digital vario display here. -
Page 15: Sink Alarm, Speed And Temperature
Operating Instructions Flytec 6005/6010 Sink Alarm, Speed and Temperature The 6005/10 has a sink alarm that will alert the pilot if he/she is descending faster than a predetermined threshold; an airspeed display with a stall alarm that will alert the pilot if their airspeed falls below a predetermined threshold and a temperature display. -
Page 16: Airspeed Display
Option-Mode for the Sink Alarm Key (option 6). Stall Alarm Provided that a sensor is plugged in, the 6005/10 has a stall alarm that will sound if your airspeed falls below a preset threshold. The threshold can be set in the Option-Mode for the Sink Alarm key. - Page 17 Operating Instructions Flytec 6005/6010 Option 3: [Set speed units] Unit Use the Arrow Keys to set the units for the speed display. The choices are kilometers per hour ( ), knots or ( ), or km/h miles per hour (...
-
Page 18: Time Functions
Each call of a set-mode resets the flight timer clock to 00:00. If the Set- Mode is accessed, as long as the 6005/10 has not recognized that a flight has begun, the flight timer will reset to zero. -
Page 19: Real-Time Clock
Operating Instructions Flytec 6005/6010 Real-time clock The 6005/10 has a real time clock that displays the time and date even when the instrument is off. Set-Mode TIME display, press the Time Key for three seconds TIME TIME to brings the instrument into Time-Set-Mode. -
Page 20: Memo Display
Operating Instruction Flytec 6005/6010 The Memo display can be brought up by one or two short presses of the TIME/SPEED/MEMO Key and the current flight will be shown (flight #0). Use the Arrow Keys to cycle through viewing the current (0) and previous (1-40) flights stored in memory. -
Page 21: Barograph Recording [Model 6010]
Operating Instructions Flytec 6005/6010 Barograph Recording [Model 6010] Recording Start / Stop / Store The 6010 is able to record the altitude profile of a flight as well as ambient temperature or airspeed. When the barograph feature is turned on... -
Page 22: Set-Mode Memo [Model 6010]
Operating Instruction Flytec 6005/6010 Set-Mode MEMO [Model 6010] While in display, use a 3-second press on the MEMO MEMO Key to bring the instrument into Memory Set-Mode. The display will now show the parameters to be recorded, the recording time in hours, and the record interval. Note: The set Press 3 sec. -
Page 23: Option-Mode Memo
6010 to a PC COM port. If your PC lacks a COM port then you must use a USB adapter available from Flytec USA, and from computer and office retailers. -
Page 24: Battery
Operating Instruction Flytec 6005/6010 Battery The 6005/6010 can operate on 2 AA 1.5V Alkaline or 2 AA 1.2V NiMh batteries. The battery compartment is accessed by removing the slotted screw in the battery door on the rear of the housing. -
Page 25: Maintenance And Care
In rare cases, it may happen that the instrument does not provide any data at all, or the data is incorrect. FLYTEC is not responsible for any damages due to the incorrect functioning of the instrument. -
Page 26: Technical Data
Operating Instruction Flytec 6005/6010 Technical Data Size: 4-3/8 x 2-3/4 x 13/16 inches (138 x 74 x 23 mm) Weight: 6.278 ounces (178 grams) (with 2 alkaline batteries, without mountings) Electrical Power Supply: 2 AA alkaline batteries AA or NiMH batteries Battery Life: >... -
Page 27: Function Overview
Operating Instructions Flytec 6005/6010 Function Overview Short Press in RUN 3 sec. Press in RUN Function in SET Function in OPTION Mode Mode Mode Mode CHRONO Reset Stopwatch Adjust value up Adjust value up Start -Stop Clear ALT 3 Adjust value down...
