Page 1: User Manual

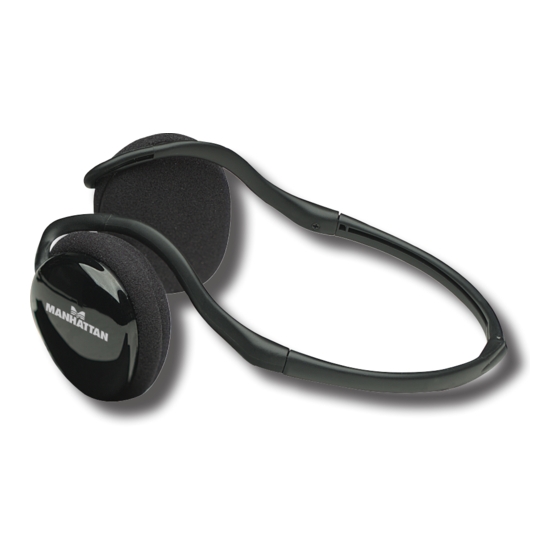

Bluetooth Stereo headSet uSer MaNual MODEL 175944 MAN-175944-UM-1106-03... - Page 2 Thank you for purchasing the MANHATTAN Bluetooth Stereo Headset, Model 175944. ® Providing wireless listening for Bluetooth-enabled audio sources, the Bluetooth Stereo Headset offers the following features and benefits. • Enjoy clear voice and stereo reception with most Bluetooth-enabled devices – never miss a call while listening to music. • Add wireless convenience to notebook and desktop PCs, MP3 players, Skype and other Bluetooth-enabled audio sources. • Comfortable, behind-the-neck design with built-in microphone folds for travel and storage. • Control Bluetooth mobile phone and audio functions directly from the headset.
-
Page 3: Operation
operatioN Charging the Battery The battery provides power for eight hours. To recharge the battery, plug the USB cable into the DC jack on the headset and connect it to your PC. NOTE: Before the first use of the headset, charge the battery fully for 10 hours. Thereafter, recharging takes approximately 90 minutes. Microphone Power Turning the Headset On / Controls button/ To turn the headset on, press and hold the Power button (about 3 seconds) until the LED lights blue. - Page 4 Using the Headset with Your Bluetooth-Enabled Mobile Phone 1. Enable Bluetooth on your phone (refer to the phone’s user manual). 2. Turn on the headset. Check that no other device connects with the headset by confirming that the Power/Link LED is not flashing. 3. In the phone’s Bluetooth menu, select "Devices." 4. Select "Stereo Headset." 5. Enter the PIN code “0000.” To answer a call, push the Power button. To end a call, simply push the Power button again. Using IVT BlueSoleil ™ To use IVT’s BlueSoleil (application software that enables/supports many Bluetooth features), first connect the Bluetooth Stereo Headset to your computer. Ensure that BlueSoleil is running on your computer, then turn on your headset. NOTE: IVT BlueSoleil software is not included with your Bluetooth headset. Refer to a BlueSoleil user’s guide or IVT’s Web site (http:/ /www.ivtcorporation.com) for further details and support.
- Page 5 Using Profiles Bluetooth AV Service Bluetooth Headset Service MM-BTSH9 MM-BTSH9 To use the Headset Profile with Skype To use the AV Profile to play audio: ™ 1. Double-click the BlueSoleil icon in the task tray. 1. Double-click the BlueSoleil icon in the task tray. 2. Press F5 to search for Bluetooth devices.
- Page 6 Configuring the audio output Control Panel 1. Go to the Control Panel and double-click the "Sound and Sounds and Audio Devices Properties Audio Devices" icon. Audio 2. When the Sounds and Audio Sound playback Devices Properties screen Bluetooth AV Audio displays, select the Audio tab. 3. In the "Sound playback" panel, Sound recording change the "Default device" to "Bluetooth AV Audio." Bluetooth AV Audio 4. In the "Sound recording" panel, change the "Default device" to "Bluetooth AV Audio." 5. Click "OK."...
- Page 7 Using WidComm Bluetooth Software ® To use WidComm Bluetooth software, first My Bluetooth Places\Entire Bluetooth Neighborhood connect the Bluetooth Stereo Headset to your computer. Ensure that WidComm is running on your computer, then turn on your headset. NOTE: WidComm Bluetooth software is not included with your Bluetooth headset. Audio Sink on Stereo Headset Not Connected To use the AV Profile to play audio: 1. Double-click the WidComm icon in the Audio Sink on Stereo Headset...
- Page 8 Configuring WidComm Audio Output ® 1. Go to the Control Panel Control Panel and double-click the "Sound and Audio Devices" icon. 2. When the Sounds and Sounds and Audio Devices Properties Audio Audio Devices Properties Sound playback screen displays, select Bluetooth High Quality Audio the Audio tab. 3. In the "Sound playback" Sound recording panel, change the "Default Bluetooth High Quality Audio device" to "Bluetooth High Quality Audio."...
- Page 9 Configuring for Use with Computers 1. On the computer, go to Start ➞ Programs ➞ Bluetooth Settings Bluetooth ➞ Bluetooth Settings. 2. On the headset, hold down the Power button until the Power LED lights and stays blue. 3. On the Bluetooth Settings screen (right), click “New Connection.” Add New Connection Wizard Connection Custom Mode 4. When the Add New Connection Wizard...
- Page 10 5. When the “Select a device” Wizard screen Add New Connection Wizard displays, highlight “Stereo Headset” in the Select a device "Bluetooth device" window; click “Next.” Bluetooth device Device Name Stereo Headset Next > 6. When the Bluetooth Manager – Bluetooth Bluetooth Manager - Bluetooth Security Security screen displays, enter “0000” in the Bluetooth Passkey (PIN) 0000 "Bluetooth Passkey (PIN)" text field; click “OK.”...
- Page 11 7 . When the “Select a service” Wizard screen Add New Connection Wizard displays (right), select “Audio Sink” in the Select a service "Service selection" window; click “Next.” Service selection Audio Sink Add New Connection Wizard Enter a name and select an icon Next > Setting information Connection Name 8. When the “Enter a name and select an icon”...
- Page 12 9. To enable the Bluetooth Headset, double-click the Bluetooth Settings Stereo Headset icon (or use the desktop shortcut shown below). Stereo Headset...
-
Page 13: Troubleshooting
trouBleShootiNG If the Bluetooth Stereo Headset does not work, try the following: • Ensure that all connecting devices are sufficiently charged. • Turn off all devices and then turn them on in the order shown in this manual. • Ensure devices are within the effective 10-meter range. -
Page 14: Specifications
SpecificatioNS General: • Bluetooth standards: V 1.2, Class 2; A2DP profile (AV profile); headset and hands-free profile • Frequency range: 2402 – 2480 MHz • Compatibility: supports Bluetooth A2DP (AV profile), AVRCP, HS and HF profiles • Effective range: 10 m (32 ft.) Headset: • Audio sample rate: 48 kHz (streaming format) • S/N: >85 dB • Frequency response: 20 Hz – 22 kHz • Output: 20 mW • Battery type: built-in rechargeable lithium-polymer battery • Charging time: 1.5 hours • Playing time: up to 8 hours • Standby time: up to 240 hours... - Page 15 • USB charging cable: 1 m (42 in.) • Dimensions, folded: 98 x 72 x 75 mm (3.8 x 2.8 x 2.9 in.) • Dimensions, unfolded: 180 x 140 x 60 mm (7 x 5.5 x 2.3 in.) • Weight: 62.3 g (2.2 oz.) Mobile phone compatibility (check other phones for interoperability): • BlackBerry 7100t • Fujitsu F900iT • Motorola A768i, A780, E398, V3, V600, V710 • Nokia 3600, 3660, 6230, 6600, 6670, 6820, 7610, N-Gage • Panasonic X70 • Siemens SX1, U15 • Sony-Ericsson P800, P900, T610, T68i, S700i, Z600, K700i...
- Page 16 PC Components, Peripherals, Cables ® and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
