Page 1: User Manual

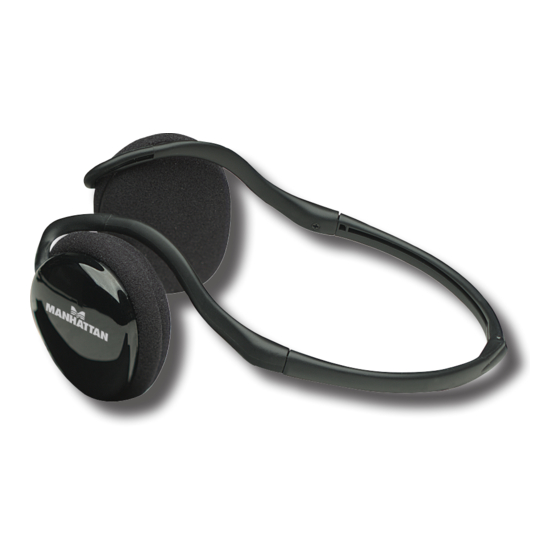

Bluetooth Stereo headSet uSer MaNual MODEL 175944 MAN-175944-UM-1106-02... - Page 2 Thank you for purchasing the MANHATTAN Bluetooth Stereo Headset, Model 175944. ® Providing wireless listening for Bluetooth-enabled audio sources, the Bluetooth Stereo Headset offers the following features and benefits. • Enjoy clear voice and stereo reception with most Bluetooth-enabled devices – never miss a call while listening to music.
- Page 3 operatioN Charging the Battery The battery is designed to provide power for eight hours each time it is charged. To recharge the battery, plug the USB cable into the DC jack on the headset and connect the other end to your PC.
- Page 4 Using the Headset with Your Bluetooth-Enabled Mobile Phone 1. Enable Bluetooth on your phone (refer to the phone’s user manual). 2. Turn on the headset. Check that no other device connects with the headset by confirming that the Power/Link LED is not flashing. 3.
- Page 5 Using Profiles Bluetooth AV Service Bluetooth Headset Service To use the Headset Profile with Skype To use the AV Profile to play audio: ™ 1. Double-click the BlueSoleil icon in the task tray. 1. Double-click the BlueSoleil icon in the task tray. 2.
- Page 6 Configuring BTAUDIO audio output Control Panel 1. Open "Control Panel" and Sounds and Audio Devices Properties double-click "Sound and Audio Devices." BTAUDIO 2. Select the Audio tab. 3. Under "Sound playback," BTAUDIO change the device to "BTAUDIO." 4. Under "Sound recording," change the device to "BTAUDIO."...
- Page 7 Using WidComm Bluetooth Software ® To use WidComm Bluetooth software, first connect the My Bluetooth Places\Entire Bluetooth Neighborhood Bluetooth Stereo Headset to your computer. Ensure that WidComm is running on your computer, then turn on your headset. NOTE: WidComm Bluetooth software is not included Audio Sink on Stereo Headset Not Connected with your Bluetooth headset.
-
Page 8: Select The Audio Tab
Configuring WidComm Audio Output ® 1. Open "Control Panel" Control Panel and double-click "Sound and Audio Devices." 2. Select the Audio tab. Sounds and Audio Devices Properties 3. Under "Sound playback," change the device to Sound playback "Bluetooth High Quality Bluetooth High Quality Audio Audio."... - Page 9 Configuring for Use with Computers 1. On the computer, go to Start ➞ Programs ➞ Bluetooth Settings Bluetooth ➞ Bluetooth Settings. 2. On the headset, hold down the Power/Link button until the Power/Link LED stays blue. 3. Click “New Connection.” Add New Connection Wizard Custom Mode 4.
- Page 10 5. When “Select a device” appears, highlight Add New Connection Wizard “Stereo Headset”; click “Next.” Device Name Stereo Headset 6. In the field for PIN, enter “0000”; click “OK.” Bluetooth Manager - Bluetooth Security Bluetooth Passkey (PIN)
- Page 11 7 . On the Add New Connection Wizard screen, Add New Connection Wizard select “Audio Sink”; click “Next.” Audio Sink Add New Connection Wizard Stereo Headset 8. In the “Connection Name” field, “Stereo Create a shortcut on the desktop Headset” should appear as the default. Select “Create a shortcut on the desktop”;...
- Page 12 9. To enable the Bluetooth Headset, double-click the Bluetooth Settings Stereo Headset icon (or use the desktop shortcut shown below). Stereo Headset...
-
Page 13: Troubleshooting
trouBleShootiNG If the Bluetooth Stereo Headset does not work, try the following: • Ensure that all connecting devices are sufficiently charged. • Turn off all devices and then turn them on in the order shown in this manual. • Ensure devices are within the 10-meter range. •... -
Page 14: Specifications
SpecificatioNS General: • Bluetooth standards: V 1.2, Class 2; A2DP profile (AV profile); Headset and hands-free profile • Frequency Range: 2402 – 2480 MHz • Compatibility: Support Bluetooth A2DP (AV profile), AVRCP, HS and HF profiles • Effective range: 10 m (32 ft.) Headset: •... - Page 15 Mobile phone compatibility (check other phones for interoperability): • BlackBerry 7100t • Fujitsu F900iT • Motorola A768i, A780, E398, V3, V600, V710 • Nokia 3600, 3660, 6230, 6600, 6670, 6820, 7610, N-Gage • Panasonic X70 • Siemens SX1, U15 • Sony-Ericsson P800, P900, T610, T68i, S700i, Z600, K700i...
- Page 16 Are you completely satisfied with this product? Please contact your MANHATTAN dealer with comments or questions. ® Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
