Optional EasyTalk™ Wireless Audio

Interface for AutoTrak™ 2.0

Part Numbers:

999-7230-000 North America

999-7230-001 International

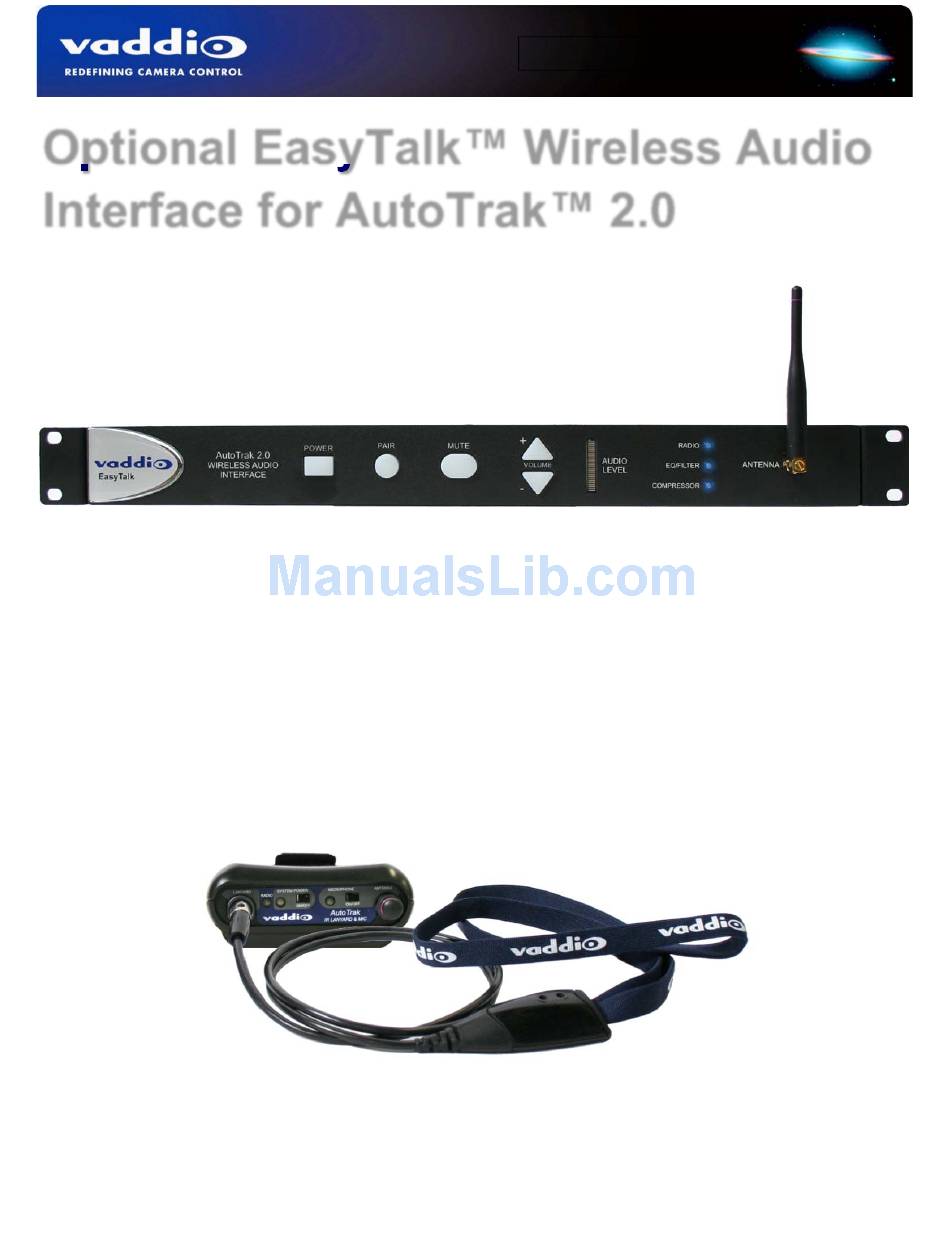

The Optional EasyTalk AutoTrak 2.0 Wireless Audio Interface (above) works with

existing AutoTrak 2.0 IR Lanyard with a built-in professional quality, unidirectional

microphone mounted in the Central Medallion and the rechargeable lithium-ion

battery pack and transmitter inside the Belt Pack.

rechargeable Belt Pack are sold as part of the AutoTrak 2.0 System).

Installation and User Guide

(The IR Lanyard and

Need help?

Do you have a question about the EasyTalk 2.0 999-7230-000 and is the answer not in the manual?

Questions and answers

Summary of Contents for VADDIO EasyTalk 2.0 999-7230-000

Page 1 Belt Pack. (The IR Lanyard and rechargeable Belt Pack are sold as part of the AutoTrak 2.0 System). ©2012 Vaddio - All Rights Reserved. Optional AutoTrak 2.0 EasyTalk Wireless Audio Interface - Document Number 342-0387 Rev B...
Page 2 Optional AutoTrak 2.0 EasyTalk Wireless Audio Interface Inside Front Cover - Blank Optional AutoTrak 2.0 EasyTalk Wireless Audio Interface - Document Number 342-0387 Rev B Page 2 of 12...
Page 3 Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.
Page 4 Optional AutoTrak 2.0 EasyTalk Wireless Audio Interface Unpacking: Carefully remove all of the parts for the Optional EasyTalk Wireless Interface for the AutoTrak 2.0 from the packaging. The System 999-7230-000 for North America includes:  One (1) 998-7230-000 EasyTalk AutoTrak 2.0 Wireless Audio Receiver ...
Page 5 12 VDC, 1.0 Amp Power Connector: The 5.5mm OD and 2.5mm ID coaxial power connector should be plugged into the PowerRite power supply provided by Vaddio. Use of any unauthorized power supplies will void any and all warranties. RS-232 Control: The DE-9 female (DB-9 for conventionalists) connector is provided for 3 party control systems using the Wireless Audio Interface Application Protocol Interface (API).
Page 6 Optional AutoTrak 2.0 EasyTalk Wireless Audio Interface GPIO Port: The GPIO Port provides the ability to interface with external control systems. Inputs are logic level low. Outputs are open collectors. Function Power (12 VDC) Mute Toggle (Input) Mute Status (Output) Volume Up (Input) Volume Down (Output) Not Used...
Page 7 Optional AutoTrak 2.0 EasyTalk Wireless Audio Interface Step 9: To replace the removable battery cover, start sliding the cover on at the bottom of the battery pack compartment and slide cover upward to the top of the small opening until the cover latches back into place. Step 10: Adjust the mic volume by using the + (plus) and –...
Page 8 Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device.  Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ...
Page 9 Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.
Page 10: Appendix 1: Pin-Outs And Stuff
Optional AutoTrak 2.0 EasyTalk Wireless Audio Interface Appendix 1: Pin-outs and Stuff RS-232 Control: DE-9 Female (DB-9 for convention): Communication Specification Control Port - RS-232 on DE-9 Female Connector Communication Speed: 9600 bps or 38,400 PIN# Signal Stop bit: 1 Data bits: 8 Parity: None No Flow control...
Page 11 Optional AutoTrak 2.0 EasyTalk Wireless Audio Interface Command Argument Available w/ DIP 7 Description Response Down 5112 none Get mixer enabled 4112 00 – disabled Mixer enabled response 01 – enabled 5113 none Get radio enabled 4113 00 – disabled Radio enabled response 01 –...
Page 12 ©2012 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, AutoTrak, and EasyTalk, are trademarks of Vaddio. All other trademarks are property of their respective owners.
