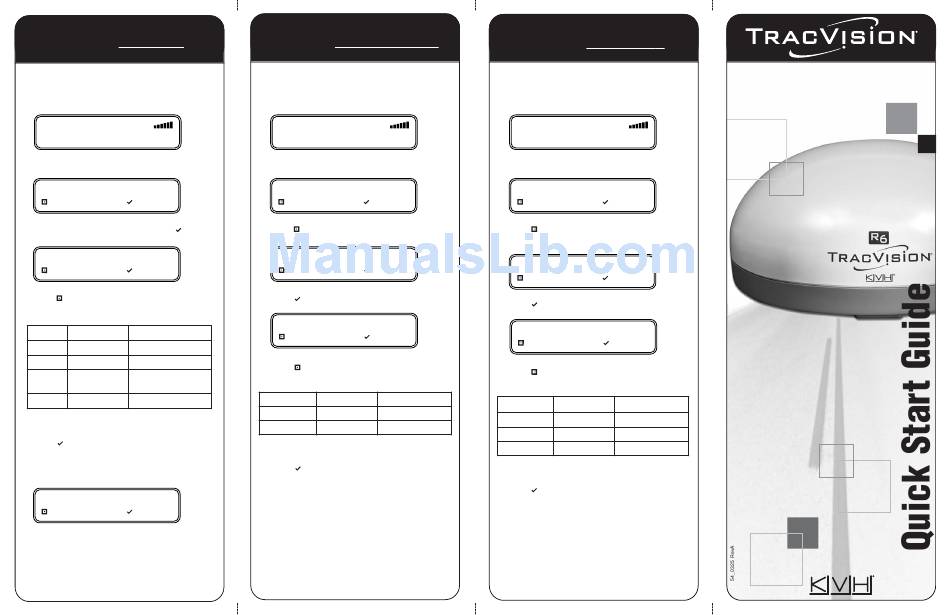

KVH Industries TracVision R6 Quick Start Manual

Setup
DIRECTV
service. If you
Follow these steps to set up for DIRECTV ®
need to change an existing setup, reset the system as
explained in Section 4.5 of the User's Guide.
TRACKING DTV 101
SYSTEM NEEDS SETUP
1. Press any button to begin the setup process.
SERVICE= DIRECTV?
CHANGE ACCEPT
2. "DIRECTV" is the selected service. Press ACCEPT.
ANTENNA= ROUND?
CHANGE ACCEPT
3. Press CHANGE until display shows the desired
antenna type.
Antenna Satellites Used Satellite Switching
ROUND 101 only None (Unnecessary)
OVAL2 101, 119 Automatic
OVAL3 101, 110, 119 Automatic with HDTV
Converter
MANUAL Select up to 4 Manual
4. When the display shows the desired antenna type,
press ACCEPT.
If you selected OVAL3, select the satellite pair to track:
101/110 or 101/119.
TRACK= 101/110?
CHANGE ACCEPT
If you selected MANUAL, select your DIRECTV satellites.
Refer to Section 4.1 of the User's Guide for details.
The antenna restarts automatically once setup is
complete.
Setup
DISH Network
Follow these steps to set up for DISH Network ™ service. If
you need to change an existing setup, reset the system as
explained in Section 4.5 of the User's Guide.
TRACKING DTV 101
SYSTEM NEEDS SETUP
1. Press any button to begin the setup process.
SERVICE= DIRECTV?
CHANGE ACCEPT
2. Press CHANGE until the display shows "DISH".
SERVICE= DISH?
CHANGE ACCEPT
3. Press ACCEPT.
ANTENNA= DISH500?
CHANGE ACCEPT
4. Press CHANGE until the display shows the desired
antenna type.
Antenna Satellites Used Satellite Switching
DISH500 119, 110 Automatic
MANUAL Select up to 4 Manual
5. When the display shows the desired antenna type,
press ACCEPT.
If you selected MANUAL, select your DISH satellites.
Refer to Section 4.2 of the User's Guide for details.
The antenna restarts automatically once setup is
complete.
6. After the antenna initializes, run the Check Switch
function on your DISH Network receiver and ensure
the receiver detects an SW42 switch. Refer to the end
of Section 4.2 of the User's Guide for details.
Setup
ExpressVu
Follow these steps to set up for ExpressVu service. If you
need to change an existing setup, reset the system as
explained in Section 4.5 of the User's Guide.
TRACKING DTV 101
SYSTEM NEEDS SETUP
1. Press any button to begin the setup process.
SERVICE= DIRECTV?
CHANGE ACCEPT
2. Press CHANGE until the display shows
"EXPRESSVU".
SERVICE= EXPRESSVU?
CHANGE ACCEPT
3. Press ACCEPT.
ANTENNA= SINGLE LNB?
CHANGE ACCEPT
4. Press CHANGE until the display shows the desired
antenna type.
Antenna Satellites Used Satellite Switching
SINGLE LNB 91 None (Unnecessary)
DUAL LNB 91, 82 Automatic
MANUAL Select up to 2 Manual
5. When the display shows the desired antenna type,
press ACCEPT.
If you selected MANUAL, select your ExpressVu satellites.
Refer to Section 4.3 of the User's Guide for details.
The antenna restarts automatically once setup is
complete.
KVH TracVision R6
KVH Industries, Inc.
50 Enterprise Center
Middletown, RI, 02842-5279
Phone: + 1 401 847-3327
Fax: + 1 401 849-0045
E-mail: info@kvh.com
Internet: www.kvh.com
