TracVision HD11 Main Board
Replacement Instructions
Technical Support
If you need technical assistance, please contact KVH Technical Support:
North/South America, Australasia:
Phone: +1 401 847-3327
Email: support@kvh.com
The following instructions explain how to replace
the main board in a TracVision
NOTE: Your antenna might have parts that differ from
those pictured in this document. Such differences have no
bearing on the instructions unless noted otherwise.
Tools Required
This procedure requires the following tools:
• Headband light
• ESD wrist strap
• 7/16" torque wrench set to 15 in.-lbs
• Phillips screwdrivers
• Torque wrench with Phillips bits (11 in.-lbs and
21 in.-lbs)
• Flat-head jeweler's torque screwdriver set to
5 in.-lbs
• Latest HD11 software update file downloaded
to a laptop computer via the KVH Partner Portal
or to a mobile device via the KVH HD11 app
Step 1 - Remove the Old Main Board
Follow the steps below to remove the old main
board.
CAUTION
For your own safety, disconnect power from all
wired components before you begin.
a. Turn off the ACU to remove power from the
antenna.
KVH, TracVision, and the unique light-colored dome with dark contrasting baseplate are registered trademarks of KVH Industries, Inc.
All other trademarks are property of their respective companies. The information in this document is subject to change without notice.
No company shall be liable for errors contained herein. © 2012-2017 KVH Industries, Inc., All rights reserved. 54-0817 Rev. B | 72-0522
Europe, Middle East, Africa, Asia-Pacific:
Phone: +45 45 160 180
Email: support@emea.kvh.com
®
HD11 antenna.

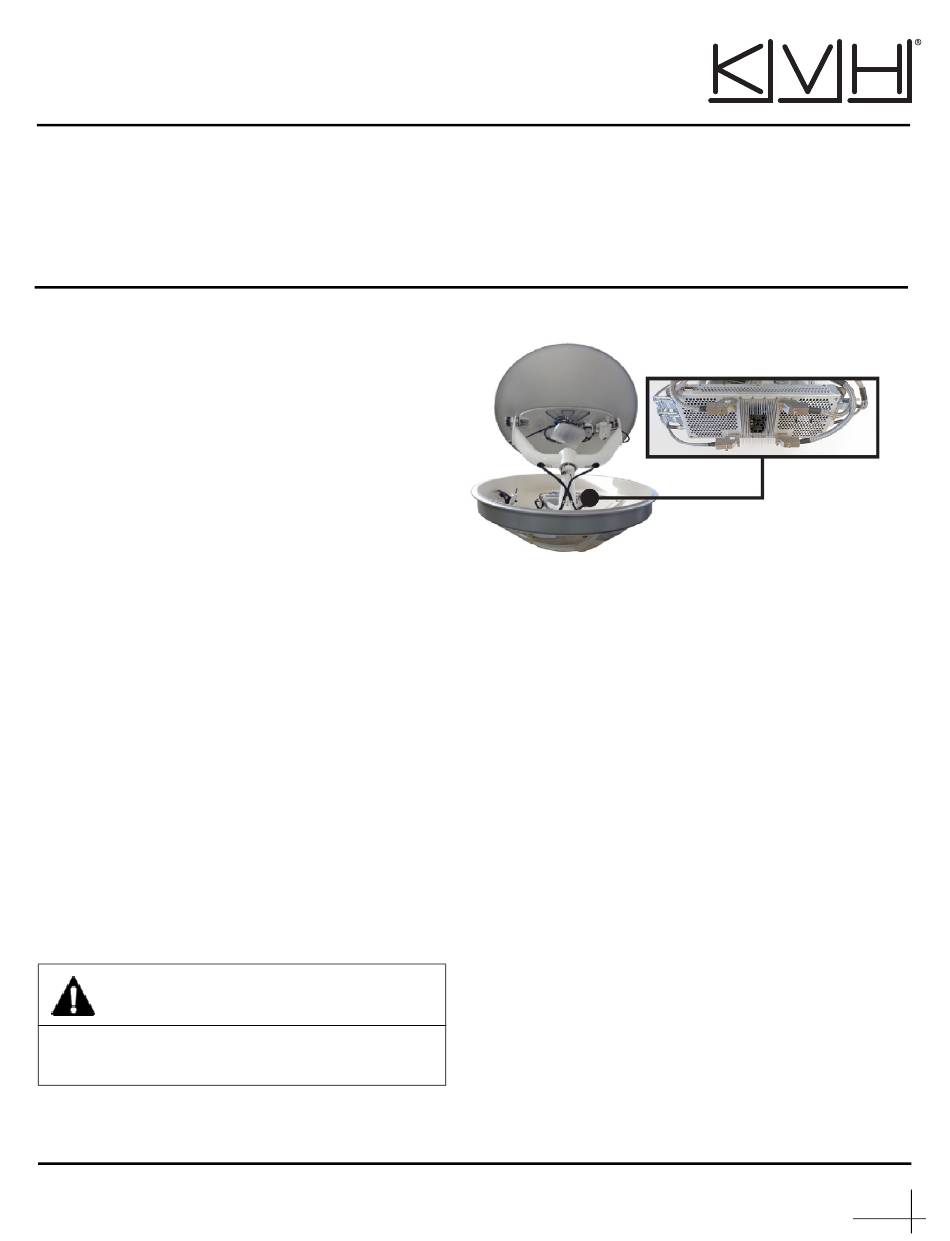

Figure 1: Main Board in an HD11 Antenna
