Summary of Contents for KOBE RA2230SQB-1

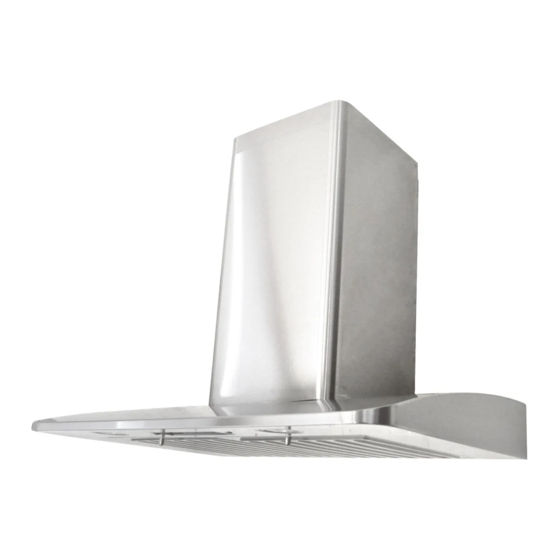

- Page 1 KOBE Brand Range Hood Model No. RA2230SQB-1(30”) RA2236SQB-1 (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 READ BEFORE INSTALLATION 1. Carefully check all contents of packages; 2. Thoroughly inspect the unit for any cosmetic damages or defects; 3. Test the unit before installation; 4. Have a certified contractor/electrician do the installation. IF THERE IS ANY PROBLEM: 1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL PACKAGING MATERIAL. 2. Have your original invoice as proof of purchase and product serial number ready. 3. Call 1‐877‐BUY‐KOBE (289‐5623); or e‐mail to info@koberangehoods.com to report the problem. NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2. KNOCK‐OUT HOLES HAVE BEEN PUNCTURED 3. MISSING ORIGINAL PACKAGING MATERIAL AND/OR PARTS...
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE ....................3 INSTALLATION ..........................4 OPERATING INSTRUCTIONS ..................... 7 MAINTENANCE ..........................9 SPECIFICATIONS ........................10 MEASUREMENTS & DIAGRAMS ....................11 PARTS LIST ..........................12 CIRCUIT DIAGRAM ........................ -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
3 (36” hood) {E} Duct cover Mounting Bracket {F} Hood-Mounting Bracket x 2 {G} Screws Package * Pre-installed * Pre-installed 3/16 “x 3/8” (8PCS) FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Preferred Height of Counter Top to Hood Bottom (Minimum 26"... - Page 8 Preparation before Installation Figure 1 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. (Figure 1) A straight, short venting run will allow the hood to perform more efficiently.
- Page 9 4. Secure and tighten the mounting screws. Install / Uninstall Accessories CAUTION : MAKE SURE THE HOOD IS 13. Place baffle filters underneath the hood. SECURE BEFORE RELEASING. Final Assembly Ductwork Installation 14. Turn power ON in control panel. Check all 5.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Power Control Press Power Control to turn On/Off the range hood. Speed Control The fan will start on Speed #3. Press button to decrease the speed level.Press button to increase the speed level. - Page 11 fan without disabling ECO Mode. When fan is off and ECO Mode has been activated, the icon will appear in the LED Display. The icon will flash while ECO Mode is operating on QuietMode™. To deactivate, press and hold button until icon no longer appears in the LED Display.
-
Page 12: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 13: Specifications
LIGHTS 3-Level Lighting 3-watt LED light x 2 HOOD DIMENSION RA2230SQB-1 (29-3/4” x 20-1/2” x 3-15/16”) (W x D x H) RA2236SQB-1 (35-3/4” x 20-1/2” x 3-15/16”) OPTIONAL ACCESSORIES 1) 30" Stainless Steel Back Panel (W x D x H) SSP30 (30"... -
Page 14: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. -
Page 15: Parts List
PARTS LIST MODEL NO.: RA2230SQB-1 (30”) RA2236SQB-1 (36”) DESCRIPTION MODEL /SIZE PART NO. Duct Cover -Mounting Bracket L1-0203-1630 RA22DC-1 Duct Cover (Inner and Outer) B102-02230R L1-0505-0002 6” Round Plastic Collar Hood Mounting Bracket x 2 L1-0201-03900 Processor Board L1-0404-6001 Capacitor... - Page 16 MODEL NO.: RA2230SQB-1 (30”) RA2236SQB-1 (36”)
-
Page 17: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: RA2230SQB-1 (30”) / RA2236SQB-1 (36”) -
Page 18: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check the both motors power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 19: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 20 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER...
-
Page 21: Product Registration
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com To report a problem, please contact: Toll Free: 1-877-BUY-KOBE (289-5623) Email: customer.service@koberangehoods.com... - Page 22 Arcadia, CA 91006 USA http://www.KOBERangeHoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
