A794 Thermal Receipt Printer

Setup Guide

Setting up the printer

The following instructions will provide a quick reference for setting up the A794 printer.
You will need to refer to the Owner's Guide or USB Setup Guide downloadable from the
TPG, Inc. web site (http://www.TPGprinters.com) for specific details for the USB setup
procedures, troubleshooting tips, configuration adjustments, and command
designations. Pages referenced are from the Owner's Guide, unless noted.
1

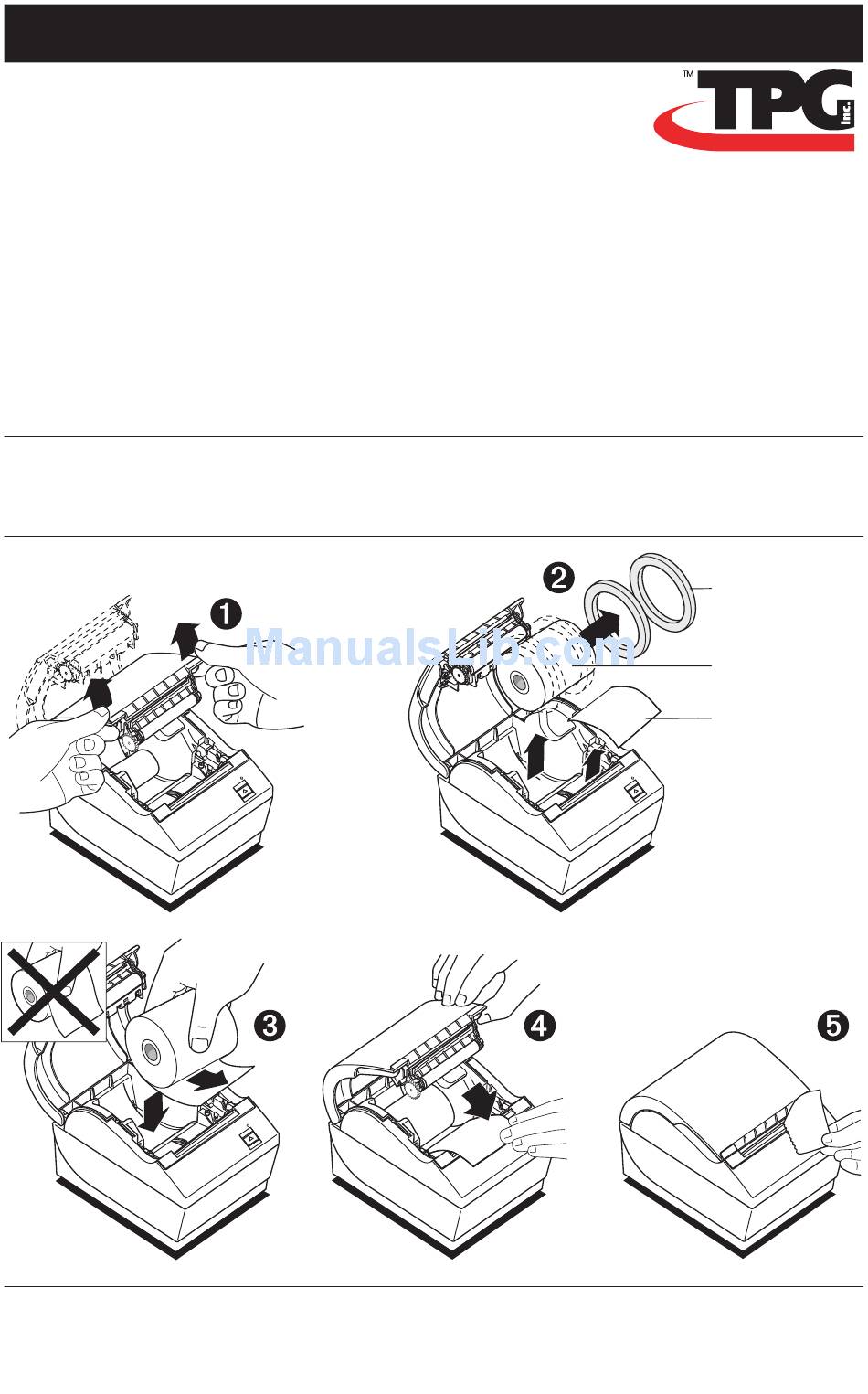

Unpack the printer, saving all packing materials for future
shipping or storage (page 6).
2
Load the starter roll of paper (pages 7 & 13).
3
Choose a location for the printer (page 8).
Paper Roll
Supports (2)
Starter Roll
Thermal Paper
Test
Printout

Advertisement

loading
Need help?

Need help?

Do you have a question about the A794 and is the answer not in the manual?

Questions and answers

Related Manuals for TPG A794

Summary of Contents for TPG A794

  • Page 1: Setup Guide

    Setup Guide Setting up the printer The following instructions will provide a quick reference for setting up the A794 printer. You will need to refer to the Owner’s Guide or USB Setup Guide downloadable from the TPG, Inc. web site (http://www.TPGprinters.com) for specific details for the USB setup procedures, troubleshooting tips, configuration adjustments, and command designations.
  • Page 2 Cash drawer (if your installation includes this feature, page 10). 9-pin or 25-pin Serial or USB cable (for serial page 9). Note: For USB connection instructions refer to the “A794 Setup Guide with USB” downloadable from the TPG, Inc. web site (http://www.TPGprinters.com).
  • Page 3 Configure the printer if necessary (page 16 and “Chapter 6: Programming Information” for commands descriptions and usage). ********* ********* ********** ********** *** A794 - Diagnostics Form *** *** A794 - Diagnostics Form *** MAIN MENU MAIN MENU ******************************* ******************************* Model number...

  • Page 4: Power Supply

    100-240 Vac, 1.5/0.8 A, 50/60 Hz, output rated 24 Vdc, 2.3 A for 55 watt unit; 100-240 Vac, 2.0A, 50/60 Hz, output rate 24 Vdc, 3.125 A for 75 watt unit. Use of this product with a power supply other than the TPG, Inc. power supply will require you to test the power supply and TPG, Inc. printer for FCC and CE mark certification.
