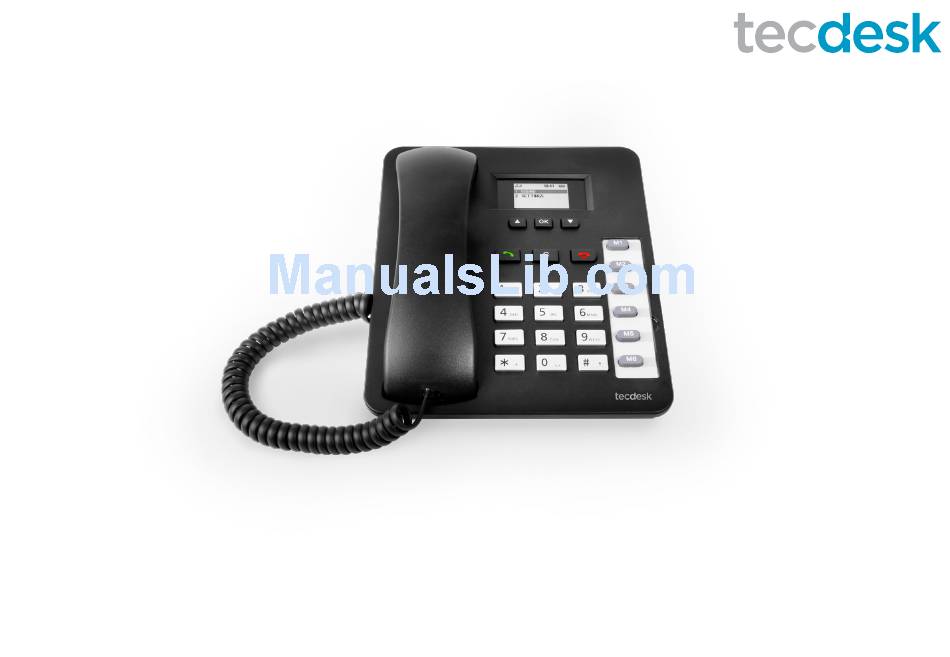

Page 1: User Manual
Fixed Wireless Phones Tecdesk 1000 User Manual tecdesk.com | English... -
Page 3: Table Of Contents
CONTENTS INTRODUCTION PACKAGE CONTENTS GETTING TO KNOW YOUR PHONE ALPHANUMERIC KEYPAD GETTING STARTED SETTING UP BASIC FUNCTIONS CUSTOMISING YOUR SOUNDS CUSTOMISING YOUR SETTINGS SPECIFICATIONS TROUBLE SHOOTING LEGAL INFORMATION HEALTH AND SAFETY RF/SAR INFORMATION DECLARATION OF CONFORMITY... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing the Tecdesk 1000 Desk Phone. This phone is designed for use with GSM 900/1800 and UMTS 900/2100 MHz networks. You will require a valid SIM card from your network operator. Please refer to your network operator for more information. -
Page 5: Package Contents
PACKAGE CONTENTS Please check the box includes the following components. If there are any items missing please contact your supplier. User Manual Quick Start- Up Guide Tecdesk 1000 USB data cable User manual Quick start-up guide AC/DC power Ni-MH rechargeable... -
Page 6: Getting To Know Your Phone
GETTING TO KNOW YOUR PHONE Handset/receiver 10. [ ] Down/Volume - button ] Power ON/OFF/End button Speaker ] Dial button 12. [ M1 - M6 ] Memory buttons Cancel button 13. Screw for battery cover ] Up/Volume + button 14. Battery compartment cover OK OK/Enter button 15. - Page 7 STANDBY MODE Signal bar Network Battery indicator Date Time MAIN MENU Signal bar Battery indicator...
-
Page 8: Alphanumeric Keypad
ALPHANUMERIC KEYPAD Refer to the table below when using the alphanumeric keypad. When entering usernames or passwords, you can press the button to toggle between numbers (123), lowercase (abc) characters, and uppercase (ABC) characters. Button Lowercase (abc) Uppercase (ABC) , ? ! - _ @ 1 . -
Page 9: Getting Started
GETTING STARTED SETTING UP Follow the steps below to install the Desk phone. Connect the receiver to the device with the curly cord. Remove the battery cover with the Allen key then remove the battery and insert an appropriate SIM card into the device. Insert the battery into the battery compartment, ensuring the polarity on the battery matches the polarity of the connectors and the cover is positioned correctly and secured into place. -
Page 10: Basic Functions
BASIC FUNCTIONS MAKING A CALL In Standby mode, use the alphanumeric keypad to input the contact number. Press the [ C ] button to delete an incorrect entry. Press the [ ] button to make a call. To terminate a call replace the handset back on to the main unit. ANSWERING A CALL During an incoming call, pick up the receiver to answer the call. -
Page 11: Customising Your Sounds
CUSTOMISING YOUR SOUNDS In Standby mode press the [ OK ] button to enter into the MAIN MENU to access the “SOUND” and “SETTINGS”. Use the [ buttons to toggle between the 2 options and select “SOUND”. Press the [ OK ] button to confirm. In the “SOUND” submenu, you can set the “VOICE CALL RING”, “VOLUME”, “BUTTON TONE”... -
Page 12: Customising Your Settings
CUSTOMISING YOUR SETTINGS In Standby mode, press the [ OK ] button to enter into the MAIN MENU to access “SOUND” and “SETTINGS”. Use the [ ] buttons to toggle between the 2 options and select “SETTINGS”. Press the [ OK ] button to confirm. In the “SETTINGS” submenu, you can set the “TIME AND DATE ”, “LANGUAGE”, “DISPLAY SETTING”, “NETWORK SETTING”... - Page 13 LANGUAGE In the “SETTINGS” submenu, Use the [ ] buttons to toggle between the options “TIME AND DATE”, “LANGUAGE”, “DISPLAY SET- TING”, “NETWORK SETTING” and “SPEED DIAL”. Select “LANGUAGE” and press the [ OK ] button to confirm. Use the [ ] buttons to select “AUTO”...
-
Page 14: Speed Dial
Search Mode Allows you to set up manual or automatic network search. Press the [ OK ] button to enter into the “SEARCH MODE” option. Use the [ ] button to select “AUTO” or “MANUAL” search. Press the [ OK ] button to save the setting. Preferred Network Allows you to set up manual or automatic network selection. -
Page 15: Specifications
SPECIFICATIONS • Frequency: GSM 900/1800MHz UMTS 900/2100MHz • Size: 160*194*41mm (L*W*H) • Operating temperature limits: - 10 ˚C ~ + 55 ˚C • Noise: less than 60dB ( A ) • Relative humidity limits: 10% - 95% • Atmospheric pressure limits: 86 -106Kpa •... -
Page 16: Trouble Shooting
Move the device to a different location to get a better signal. Cannot call or answer 1) Low battery power, charge the device. 2) Possible damaged battery – replace with a Tecdesk approved battery pack. No dial tone 1) Replace and pick up the receiver again. -
Page 17: Legal Information
LEGAL INFORMATION NOTICE The information in this manual is subject to change without notice. Whist every care has been taken in the preparation and design of the manual, statements, recommendations and information, implied or expressed, these do not constitute a warranty of any kind. No part of this manual may be reproduced, quoted or translated by any means or in any form photographically, mechanically or electronically, without the written permission of Tecmobile (International) Ltd. - Page 18 WARRANTY DISCLAIMERS Although every effort is used to reduce inaccuracies and, except those required by applicable law, no warranties of any kind, either express or implied, and including but not limited to the implied warranties of fitness for a particular use or satisfactory quality, are made in relation to the contents, accuracy or reliability of this manual.
-
Page 19: Health And Safety
HEALTH AND SAFETY RF/SAR INFORMATION Your phone contains a transmitter and receiver. When powered ON it receives and transmits low-level radio-frequency (RF). Country governments all over the world adopt state security guidelines developed by independent scientific organisations such as ICNIRP and IEEE. -
Page 20: Medical Devices
MEDICAL DEVICES Ensure that you switch OFF your phone in areas near electronic medical equipment that require the phone to be switched OFF: (Such as heart pacemakers, hearing aids, etc.). Most medical devices can shield the phone’s RF signal, but some cannot. If you have any doubts, or need to find out more, please consult your doctor or medical device manufacturer. -
Page 21: Declaration Of Conformity
DECLARATION OF CONFORMITY We hereby declare under our sole responsibility that this product and in combination with the accessories are in compliance with the appropriate standards EN301 511, EN301 908, EN301 489-1/-7, EN301489-1/-24, EN62311, EN62209-2, EN60950-1, following the provisions of the directive 99/5/CE. - Page 24 MODEL NO: TD1000...
