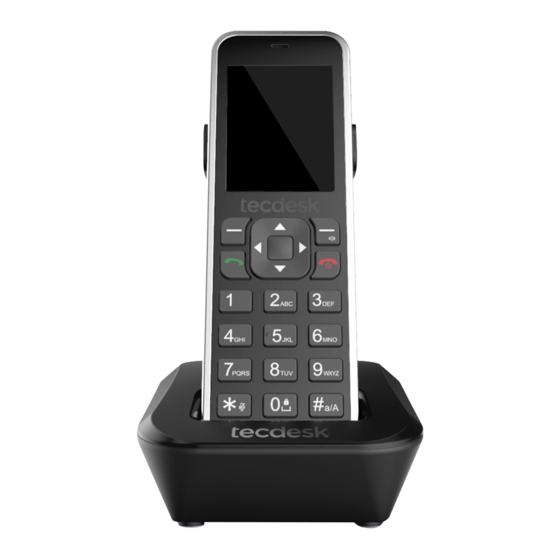

Tecdesk 5 User Manual

Sim desk phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

| Model 5
SIM Desk Phone
User Manual
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tecdesk 5

Summary of Contents for Tecdesk 5

  • Page 1 | Model 5 SIM Desk Phone User Manual English...
  • Page 2 INTRODUCTION User Manual | English In order to make best use of your Tecdesk Model 5 SIM desk phone, please read this manual carefully. This phone is designed for use with a valid SIM card from your mobile network operator.

  • Page 3: Important Note

    3. If the phone is not going to be used for a long period of time, remove the battery. 4. If the battery has not been used for a long period of time or it is completely exhausted, it is likely that the phone screen will not turn on. Only once the battery has been charging for a while will you be able to switch the phone back on to use it. 5. There is an increased risk of explosion if battery is replaced by an incorrect or unauthorised battery. Dispose of the used batteries according to the instructions. Installation and Commissioning These instructions are intended for the safe and effective use of your phone.

  • Page 4: Installation

    4. Insert the battery making sure you match the battery connectors together. Replace the back cover onto the phone and slide up. 5. Turn the phone ON by pressing the [ ] ON/OFF key on your phone for 3 seconds.

  • Page 5: Charging Your Phone

    CHARGING YOUR PHONE 1. Connect the charging adaptor provided to a power socket in your office or home. 2. Connect the Type C charging connector to the charging dock. 3. Place the phone into the cradle to charge the battery. 4. When the battery is fully charged, you will notice a full battery icon in the top right of the screen.

  • Page 6: Charging Indicator

    Charging Indicator When your phone is charging in the cradle, you'll see the movement on the battery icon [ ] displayed at the screen bar. When your phone is fully charged, the movement will stop and you'll see the battery level on icon to be full [ Low Battery Warning When your battery is low, you will see a 'low battery' notification displayed on the screen of your phone. Once you're notified, you must place the phone in to the charging cradle or connect the power adapter to charge the battery.
  • Page 7 If selecting a recently dialled number, use the navigation keys [ ] to select the number and press the button in the middle of the navigation keys or press the Dial key [ ] to make the call. If selecting ‘Contacts’, use the navigation keys [ ] to select your contact and press the button in the middle of the navigation keys or press the Dial key [ ] to make the call.
  • Page 8 Import/Export: Using this option, you can manage your contact storage, copy them, move them from SIM card to the device or vice versa. You can also share the contact on your list via Bluetooth. Go to Contacts > Options > Import / Export > select ' Share visible contacts' using navigation keys > select the contact/contacts you want to share > Options > Done > select 'Bluetooth'. If you choose to send via Bluetooth, scan for devices and you'll see the list of available Bluetooth devices. Select the correct Bluetooth name and your contact will be sent.
  • Page 9 center button on the navigation keys [ ]. Using the navigation keys (press left or right key as necessary), go to 'Messaging' and select by pressing the button in the center of the navigation keys [ New Message To create a new message for the first time > select 'New' by pressing the button in the middle of the navigation keys [ ]. If your message box already contains some messages, press options > slect 'New Message'. Type the phone number or browse the contact from your contact list by selecting [ ].
  • Page 10 'general' pressing the center button on the navigation keys > select 'delete old messages' > you can check or uncheck the option using the center button on the navigation keys. You can choose whether to include recipient's number while forwarding a SMS. Go to messaging > options > settings > general >...
  • Page 11 Using the navigation keys, select 'Connect'. You're now connected to the internet. Bluetooth: Go to Settings > Bluetooth > select by pressing the button in the middle of the navigation keys [ ]. To turn the Bluetooth function ON, press the center button on the navigation keys [ ].
  • Page 12 Portable Wi-Fi hotspot: Portable Wi-Fi hotspot is a functionality that allows you to share the cellular data i.e. your device's internet connection with the other devices, which is also known as tethering. To set up the Wi-Fi hotspot, create a name and a password that the other devices require to connect to your personal hotspot.
  • Page 13 General Settings Fade-in ringer: When enabled, incoming call ringer volume will be turned up. To enable or disable this function, go to Settings > Call settings > select 'General settings' > Fade-in ringer > check or uncheck the box [ Call recording: You can record the conversations using this function. To turn ON/OFF the automatic recording, go to Settings > Call settings > select 'General settings' > Call recording > check or uncheck the box [ Personal Security: This function allows you to set up a Screen lock, Lock screen message and SIM card lock.
  • Page 14 Date & Time: Select between ‘Automatic date & time’ or ‘Automatic time zone’. If selecting ‘Automatic date & time’, this options relies on the network or internet to display an accurate result. If selecting ‘Automatic time zone’, this option relies on the time zone you’re in to display an accurate result. To access Date and time, go to settings > select 'Automatic time zone' or 'Automatic date & time' using the navigation keys. You can also choose whether or not display the time on 24-hour format.
  • Page 15 Reset: This function allows you to delete all DRM licenses, reset network settings and erase all data on your phone. We recommend you speak to your company administrator or mobile network provider before using this function. Factory data reset - This function will erase all data from your phone's internal storage that can't be undone. To access this function, go to settings > select 'Reset' using the navigations keys > select Factory data reset > select 'Reset phone' using the navigation keys and press the button in the middle of the navigation keys [ Network settings reset - This function will reset all the network settings, including Wi-Fi, Cellular data and Bluetooth.

  • Page 16: File Explorer

    Alarm Name - You can name your alarm by going to Alarm > Options > Edit > Alarm Name > type the name using keypad > Ok. World Time: You can add a city to your worldclock by going into the 'Main Menu' > Clock > go to 'Worldclock' using the right key on the navigation keys >...
  • Page 17 3. Observe the laws regarding the use of existing mobile phones at home and turn off the device when its use is prohibited or when it may cause interference or dangerous situations. 4. Use the device only in accordance with its intended use and only in places where a phone call is not dangerous. 5. Use the power adapter and battery as supplied or recommended by manufacturer. The risk of explosion may increase if an unsuitable or unauthentic adapter is used. The battery should never be opened or exposed to flames. Dispose the used batteries according to the current guidelines and regulations. 6. The correct operation of medical appliances may be altered by the use of mobile phones. Pacemaker manufacturers recommend that a minimum distance of 20cm between devices when the mobile phone is on. Do not carry your phone in your pocket or near...
  • Page 18 1. Never dispose of the phone with household waste. 2. Ask your governing authority about suitable methods of disposal which minimize the risk to the environment. The cardboard box, the plastic contained in the packaging and the pieces in the mobile phone can be recycled in accordance with the rules in force on recycling. 3. Always follow the existing rules on the subject. 4. Violators are subject to sanctions and measures established by law. The bin symbol and cross, located on the device means that when the equipment has reached the end of its useful life, it must be brought to collection centers, and that treatment must be separated from urban waste. To protect the environment, when you replace the batteries, remember to use public recycling bins specified for batteries. For more information, please visit www.tecdesk.com. tecdesk.com April 2020...
