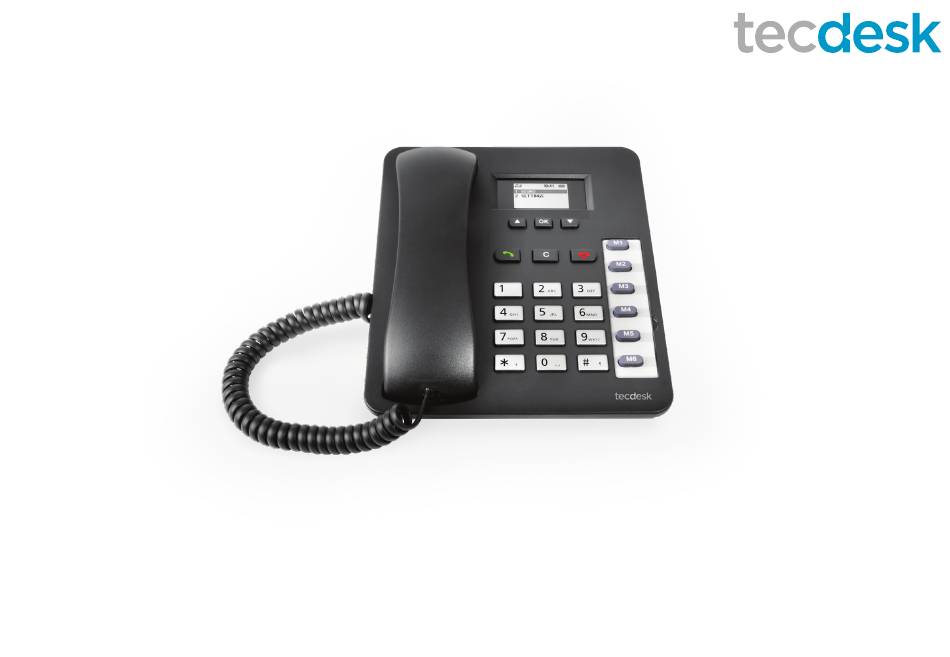

  • Page 1 Fixed Wireless Phones Tecdesk 1000V User Manual English tecdesk.com...

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION PACKAGE CONTENTS GETTING TO KNOW YOUR PHONE ALPHANUMERIC KEYPAD GETTING STARTED SETTING UP BASIC FUNCTIONS CUSTOMISING YOUR SOUNDS CUSTOMISING YOUR SETTINGS SPECIFICATIONS TROUBLESHOOTING LEGAL INFORMATION HEALTH AND SAFETY RF/ SAR INFORMATION DECLARATION OF CONFORMITY...

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing the Tecdesk 1000V Desk Phone. This phone is designed for use with GSM 900/1800 and UMTS 900/2100 MHz networks. You will require a valid SIM card from your network operator. Please refer to your network operator for more information.

  • Page 4: Package Contents

    PACKAGE CONTENTS Please check the box includes the following components. If there are any items missing please contact your supplier. Quick User Manual Start-Up Guide Tecdesk 1000V USB data cable User manual Quick start-up guide AC/DC power Ni-MH rechargeable Allen key...

  • Page 5: Getting To Know Your Phone

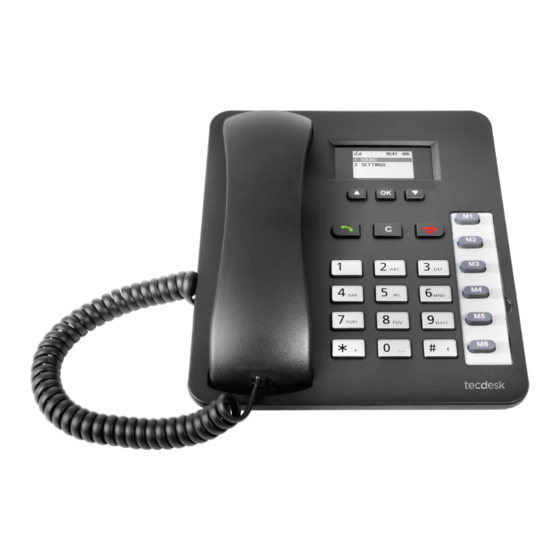

    GETTING TO KNOW YOUR PHONE Handset/receiver 10. [ ] Down/Volume - button 11. [ ] Power ON/OFF/End button Speaker ] Dial button 12. M1 - M6 Memory buttons Cancel button 13. Screw for battery cover ] Up/Volume + button 14. Battery compartment cover OK/Enter button 15.
  • Page 6 STANDBY MODE Signal bar Network Battery indicator Date Time MAIN MENU Signal bar Battery indicator...

  • Page 7: Alphanumeric Keypad

    ALPHANUMERIC KEYPAD Refer to the table below when using the alphanumeric keypad. When entering usernames or passwords, you can press the button to toggle between numbers (123), lowercase characters (abc), and uppercase characters (ABC). Button Lowercase (abc) Uppercase (ABC) , ? ! - _ @ 1 .

  • Page 8: Getting Started

    GETTING STARTED SETTING UP Follow the steps below to install the Desk phone. Connect the receiver to the device with the curly cord. Remove the battery cover with the Allen key then remove the battery and insert an appropriate SIM card into the device. Insert the battery into the battery compartment, ensuring the polarity on the battery matches the polarity of the connectors and the cover is positioned correctly and secured into place.

  • Page 9: Basic Functions

    BASIC FUNCTIONS MAKING A CALL In Standby mode, use the alphanumeric keypad to input the contact number. Press the [ C ] button to delete an incorrect entry. Press the [ ] button to make a call. To terminate a call replace the handset back on to the main unit. ANSWERING A CALL During an incoming call, pick up the receiver to answer the call.

  • Page 10: Customising Your Sounds

    CUSTOMISING YOUR SOUNDS In Standby mode press the [ OK ] button to enter into the MAIN MENU to access the “SOUNDS”, “SETTINGS” and “CONTACTS”. Use the ] buttons to toggle between the 3 options and select “SOUNDS” with the [ OK ] button. In the “SOUNDS” submenu, you can set the “RINGTONE”, “VOLUME”, “KEYTONE”...

  • Page 11: Customising Your Settings

    CUSTOMISING YOUR SETTINGS In Standby mode, press the [ OK ] button to enter into the MAIN MENU to access “SOUND”, “SETTINGS” and “CONTACTS”. Use the ] buttons to toggle between the 3 options and select “SETTINGS” with the [ OK ] button. In the “SETTINGS” submenu, you can set the “TIME”, “DATE”, “LANGUAGE”, “DISPLAY SETTINGS”, “NETWORK SETTINGS”...
  • Page 12 LANGUAGE In the “SETTINGS” submenu, Use the [ ] buttons to toggle between the options and select “LANGUAGE” by pressing the [ OK ] button on it. Select “AUTO” or use the [ ] button to toggle between the other language options and press [ OK ] to confirm. DISPLAY SETTINGS In the “SETTINGS”...
  • Page 13 Network Selection Allows you to set up manual or automatic network search. Press the [ OK ] button to enter into the “SEARCH MODE” option. Use the ] button to select “AUTO” or “MANUAL” search. Press the [ OK ] button to save the desired setting. Preferred Network Allows you to set up manual or automatic network selection.
  • Page 14 HOTDIAL When enabled this function limits call out to a preset number including a number followed by a series of extension numbers to prevent time consuming re-entry. The configured number is automatically dialled out when the receiver is lifted. In the “SETTINGS” submenu, use the [ ] buttons to toggle between the options to get to “HOTDIAL”...

  • Page 15: Specifications

    SPECIFICATIONS • Frequency: GSM 900/1800MHz UMTS 900/2100MHz • Size: 160*194*41mm (L*W*H) • Operating temperature limits: - 10 ˚C ~ + 55 ˚C • Noise: less than 60dB ( A ) • Relative humidity limits: 10% - 95% • Atmospheric pressure limits: 86 -106Kpa •...

  • Page 16: Troubleshooting

    Move the device to a different location to get a better signal. Cannot call or answer 1) Low battery power, charge the device. 2) Possible damaged battery – replace with a Tecdesk approved battery pack. No dial tone 1) Replace and pick up the receiver again.

  • Page 17: Legal Information

    LEGAL INFORMATION NOTICE The information in this manual is subject to change without notice. Whist every care has been taken in the preparation and design of the manual, statements, recommendations and information, implied or expressed, these do not constitute a warranty of any kind. No part of this manual may be reproduced, quoted or translated by any means or in any form photographically, mechanically or electronically, without the written permission of Tecmobile (International) Ltd.
  • Page 18 WARRANTY DISCLAIMERS Although every effort is used to reduce inaccuracies and, except those required by applicable law, no warranties of any kind, either express or implied, and including but not limited to the implied warranties of fitness for a particular use or satisfactory quality, are made in relation to the contents, accuracy or reliability of this manual.

  • Page 19: Health And Safety

    HEALTH AND SAFETY RF/ SAR INFORMATION Your phone contains a transmitter and receiver. When powered ON it receives and transmits low-level radio-frequency (RF). Country governments all over the world adopt state security guidelines developed by independent scientific organisations such as ICNIRP and IEEE.
  • Page 20 BATTERIES • Never use a charger or battery that is damaged in any way. Use the battery correctly. • Do not short-circuit the battery, which may damage it, cause heat or fire. • Do not dispose of batteries in high temperature or in a fire as they may explode. Return the waste battery to the dealer or appointed recycle locations.
  • Page 21 CARE AND MAINTENANCE Your phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will allow you to enjoy this product for many years. • Keep your phone away from small children and pets. They may accidentally damage the phone or choke on small parts. •...

  • Page 22: Declaration Of Conformity

    DECLARATION OF CONFORMITY We hereby declare under our sole responsibility that this product and in combination with the accessories are in compliance with the appropriate standards EN301 511, EN301 908, EN301 489-1/-7, EN301489-1/-24, EN62311, EN62209-2, EN60950-1, following the provisions of the directive 99/5/CE.
  • Page 23 MODEL NO: TD1000V 0700...
