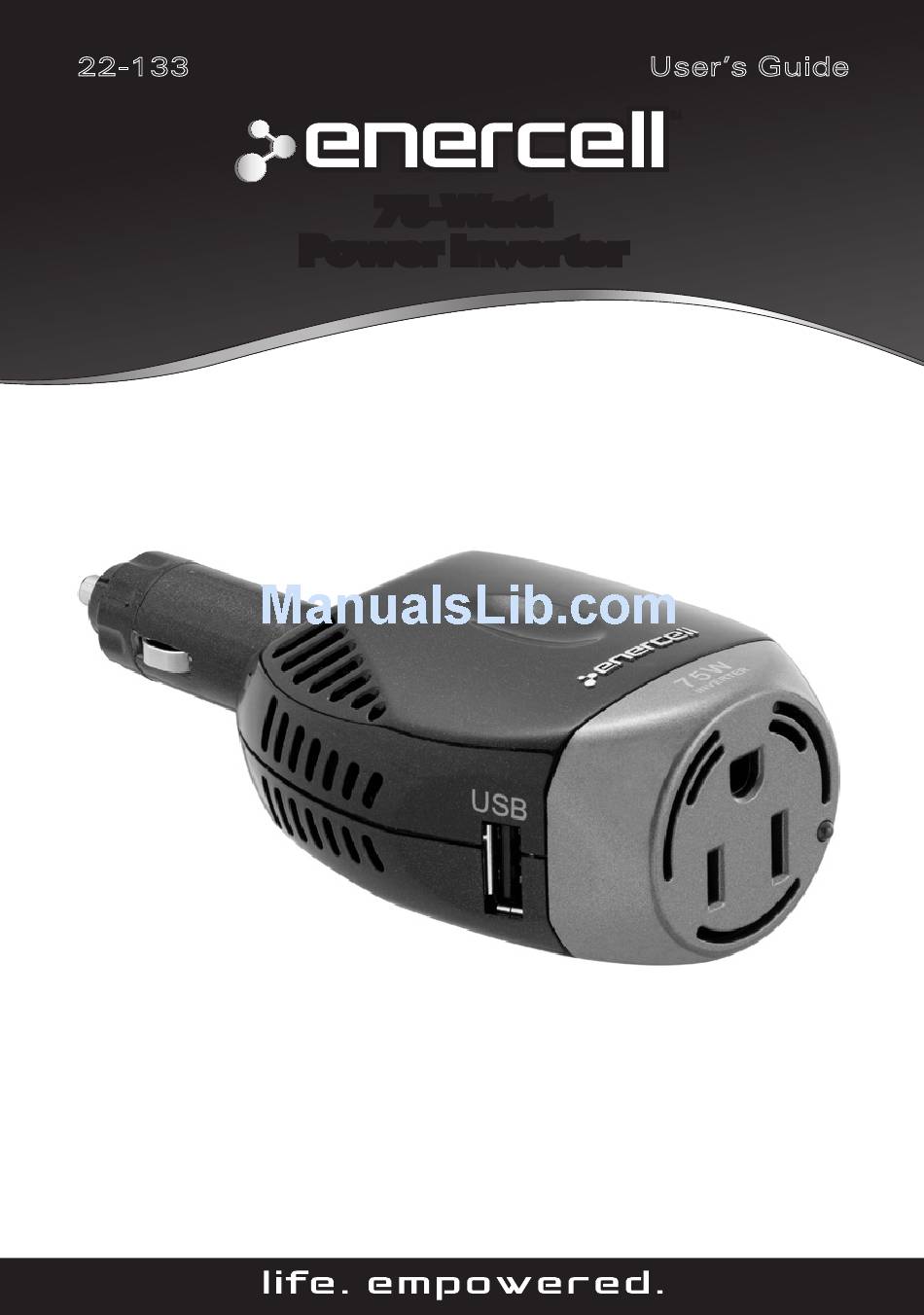

- Page 1 22-133 User’s Guide 75-Watt Power Inverter Please read this user’s guide before using your new power inverter.
-
Page 2: Package Contents
Package contents Power Inverter Quick Start Features • Automatically shuts down if the vehicle’s battery runs low to prevent total battery discharge. • Converts 12VDC power from vehicle battery into 115VAC power. • Ideal for camcorders, wireless phones, video game consoles, some notebook computers and more. - Page 3 Plug into your vehicle’s power port Adjust the inverter’s plug as needed for better positioning. Note: You can use an AC and USB device at the same time, but the total power load cannot exceed 75 watts. Plug in your device Device must draw 75W or less of continuous AC Power.
-
Page 4: Replacing The Fuse
Replacing the Fuse If the fuse has blown, replace it with a 15A, 250V tube-type fuse (not supplied). 1. Unscrew inverter cap. 2. Replace the fuse, then screw the inverter cap back on. Caution: • Do not use a fuse with a different rating. Doing so can damage your inverter. -
Page 5: Troubleshooting
Troubleshooting If an appliance doesn’t power up, or the power indicator doesn’t light, there are several possible causes: • Defective device plugged into the inverter. Try another device to see if the first one is defective. • Vehicle battery voltage is lower than 10V. -
Page 6: Safety Information
Heat Dispersion The inverter’s thermal protection prevents it from operating if its temperature exceeds 158°F (70°C). If the inverter gets too hot, position the inverter where air flows freely around it to allow the heat to disperse. Operation resumes when the temperature decreases to about 104°F (40°C). - Page 7 Caution: • Do not connect devices that require power greater than 75 watts to the inverter. • During operation, keep the inverter away from materials that may be affected by high temperatures. • Make sure the power port and plug are clean.
-
Page 8: Specifications
Specifications Input ..........11 ~ 16V DC Output....115V AC (± 10V), 60Hz (± 3 Hz) Standby Current......<0.4 AMP@13.8V Output Power ....75W Continuous Power Fuse ........15A, 250V Tube-Type Dimensions (H × W × D) ..1.46 × 2.36 × 5.12 in ..........(37 ×... -
Page 9: Limited Warranty
Changes or modifications not expressly approved by Ignition L.P . may cause interference and void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation... - Page 10 Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. © 2010. Ignition L.P . All rights reserved. Printed 07B10 Enercell is a trademark used by Ignition L.P . in China 22-133...
