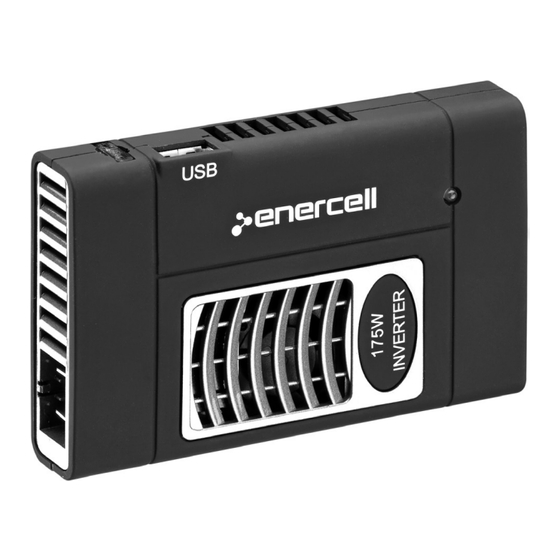

Enercell 175-Watt Pocket Power Inverter User Manual

Enercell 175-Watt Pocket Power Inverter User Manual

175-watt pocket power inverter

Advertisement

Quick Links

22-164
Product name and product name
Pocket Power Inverter
Please read this user's guide before using your new power inverter.
175-Watt
descriptors
User's Guide
T
TM
M
2/3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 175-Watt Pocket Power Inverter and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Enercell 175-Watt Pocket Power Inverter

  • Page 1 22-164 User’s Guide Product name and product name 175-Watt descriptors Pocket Power Inverter Please read this user’s guide before using your new power inverter.
  • Page 2: Package Contents

    Package contents Power Inverter Power Cord Car DC Adapter Carry Pouch Quick Start Features • Converts 12 VDC power from a car or airplane into 115 VAC power for your household devices or 5 VDC for your USB powered devices. •...
  • Page 3: Connect Power Cord

    Connect Power Cord 1. Press the locking clip on the power cord’s connector and plug it into the inverter. 2. In a car: Plug into the DC In an airplane: Plug the adapter, then plug the power cord’s other end DC adapter into the car’s into the airplane’s 12V power socket.
  • Page 4: Connect Device

    Connect Device USB device: Plug one end AC device: Plug your AC of a USB cable (not supplied) device’s power cord into the into the USB port on the AC socket on the inverter. inverter, and its other end to the port on the USB device.
  • Page 5: Troubleshooting

    Note: • You can power and charge both AC and USB devices simultaneously, but the AC device cannot exceed 175W and the USB device cannot exceed 500mA. • Position the inverter to allow heat to disperse. Troubleshooting If your device does not power up, or the power indicator does not light: Possible Cause Solution...
  • Page 6: Safety Information

    Safety Information WARNING! Shock Hazard This inverter generates the same potentially dangerous AC voltage as a household wall outlet. Failure to follow these warnings may result in personal injury or damage to the inverter. Do not insert foreign objects into the inverter’s outlets or vents.
  • Page 7: Replacing The Fuse

    • During operation, keep the inverter away from materials that may be affected by high temperatures. • Make sure the power port and plug are clean. A dirty power port can prevent the inverter from working properly. • Always remove the inverter from the power port when not in use.
  • Page 8: Specifications

    Specifications Input ..............11.5 – 15.5V DC USB Output ........5VDC±5%, 500mA (Max.) AC Output........ 115VAC (±10VAC), 60Hz (±3Hz) Continuous AC Power............175W Peak Power..........350W for one cycle Standby Current..........<0.5 AMP@13.8V Fuse ..........30 amp, 32V Mini Blade-Type Cord length ............. 2 ft (60 cm) Dimensions (H x W x D) ......0.79 x 4.33 x 2.76 in.
  • Page 9: Limited Warranty

    Changes or modifications not expressly approved by Ignition L.P . may cause interference and void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Limited Warranty...
  • Page 10 Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. © 2010. Ignition L.P . All rights reserved. Printed 05B10 Enercell is a trademark used by Ignition L.P . in China 22-164...
