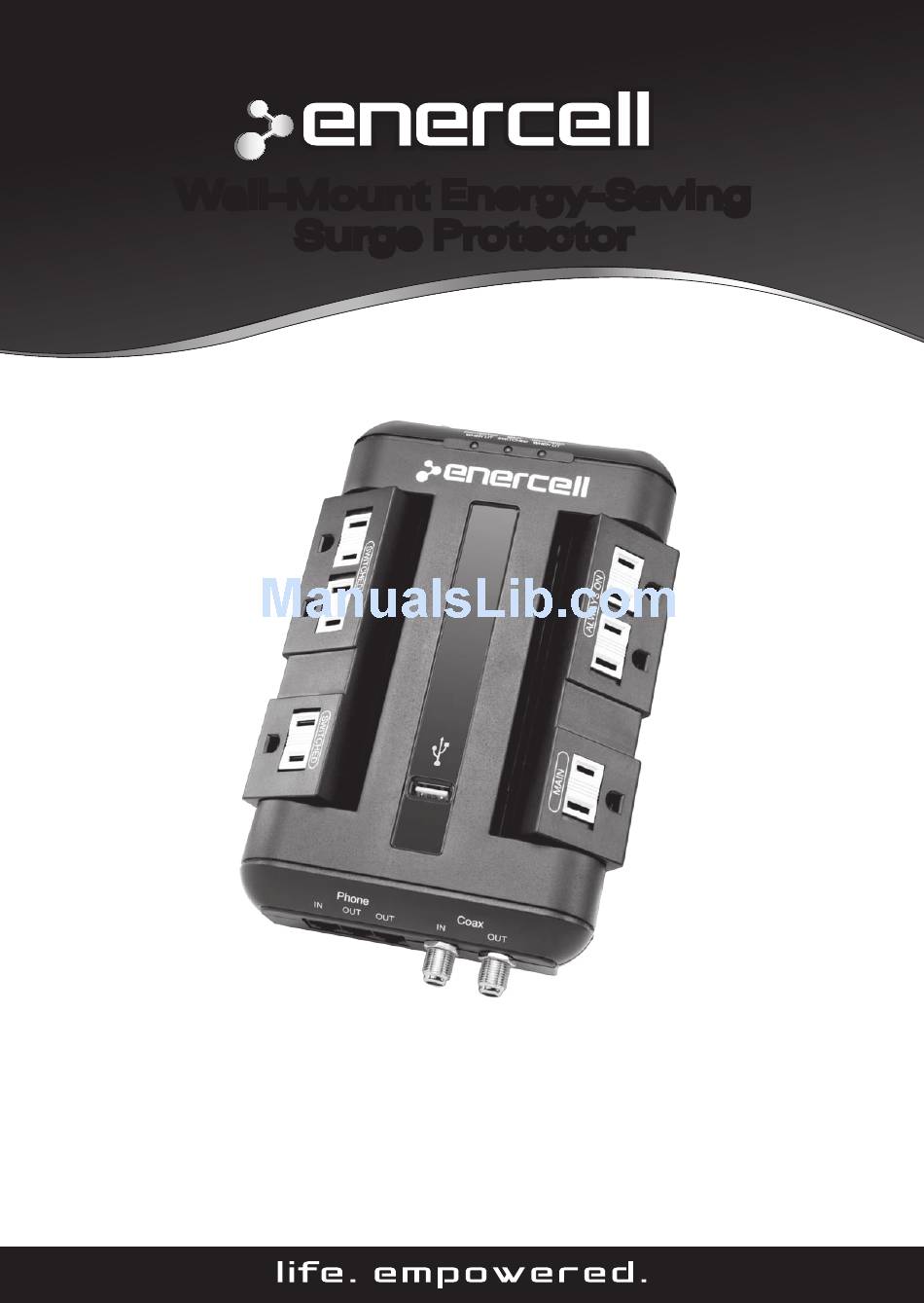

- Page 1 6100005 User’s Guide ® Wall-Mount Energy-Saving Surge Protector Please read this user’s guide before using your new surge protector. ®...
-
Page 2: Package Contents
Package contents • Surge Protector • User’s Guide • Quick Start Features • Protects your equipment against harmful power surges • Child safety covers help keep small fingers away from danger • Also charges a personal electronics device using the built-in USB port •... -
Page 3: Connect Equipment
Connect equipment Safety Cover Slide the Safety Covers aside and make the following connections: • MAIN Outlet: Plug in your main component (usually a TV or computer). • SWITCHED Outlets: Plug in components that are only used when the main component is turned on. - Page 4 Typical Power Connections SWITCHED Home Theater Home Office Scanner VCR/DVD player Gaming system Printer Powered speaker Monitor USB Charging Port Mobile phone...
- Page 5 PROTECTED WHEN LIT MAIN SWITCHED GROUNDED WHEN LIT ALWAYS ON Home Theater Home Office Router/modem Satellite/cable VOIP phone receiver MAIN Home Theater Home Office TV or receiver Computer...
-
Page 6: Communication Connections
Communication Connections Coax IN Phone IN Phone Coax OUT Note: The Antenna/Cable connection on this unit allows voltage to pass through. -
Page 7: Troubleshooting
Troubleshooting If the RESET/OFF switch turns off: The 15A circuit breaker has tripped. Examine your connected equipment and remove the device that is overloading the circuit. Then switch RESET/OFF back to RESET. If the GROUNDED WHEN LIT indicator does not light when you plug in the surge protector: Move your surge protector to a different grounded, three- prong AC outlet. -
Page 8: Specifications
Specifications Line Voltage ..............120V AC Line Current................15 A Frequency ..............50/60 Hz Circuit Breaker ..............15 A Noise Frequency Range......150 kHz – 100 MHz Noise Attenuation Level.......... Up to 20dB Maximum Surge Voltage ..........6,000V AC Total Maximum Surge Current........105,000A Total Maximum Energy Dissipation ........2,250J Modes of Protection......3 (Hot-Neutral, Hot-Ground, Neutral-Ground) -
Page 9: Important Safety Information
Important Safety Information • This product is intended for indoor use only. • This surge protector is not a lightning arrestor and might not protect against lightning-induced voltage surges. • The total wattage of all connected devices must not exceed 1,875 watts. •... -
Page 10: Fcc Information
Enercell products are sold exclusively at RadioShack. If your Enercell surge protector is not performing as it should, take it to your local RadioShack store for assistance. - Page 11 a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
- Page 12 Product the lesser of: (a) the repair charges for the Connected Equipment; (b) the purchase price of replacement equipment that is reasonably comparable (as determined by Ignition L.P . in its sole discretion) to the Connected Equipment; or (c) the original purchase price of the Connected Equipment; provided, however, that in no event will the Connected Equipment Benefit exceed a maximum of seventy-five thousand U.S.
- Page 13 copy of the sales receipt for the surge protector; (c) a brief description of any problem with the surge protector; (d) a brief description of how the damage to the Connected Equipment occurred; (e) the original authorized service center repair bill or estimate documenting that the damage to the Connected Equipment was surge-induced;...
- Page 14 Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. © 2011. Ignition L.P . All rights reserved. Enercell is a registered trademark used Printed 03A11 by Ignition L.P . in China...
