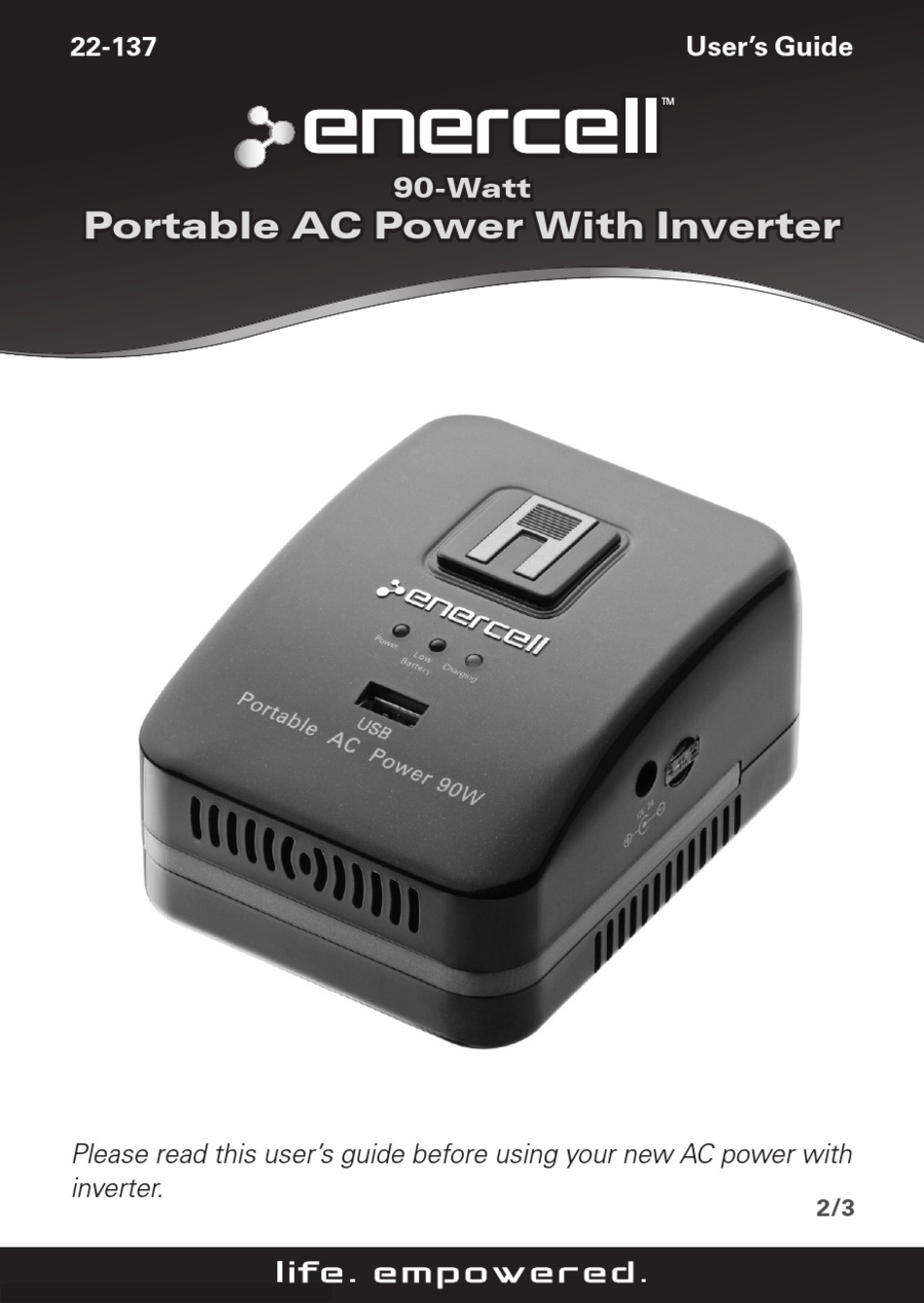

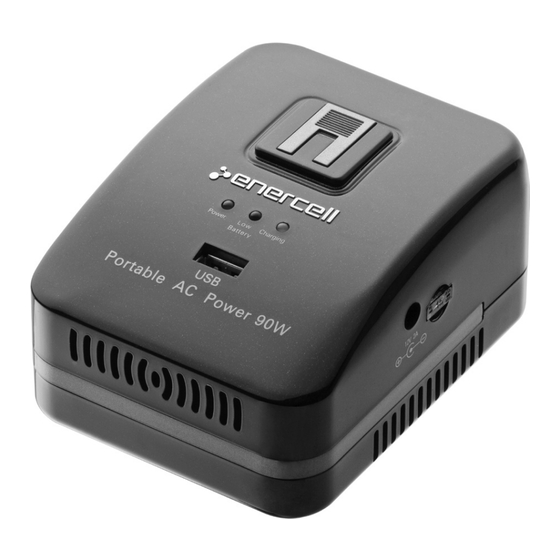

- Page 1 22-137 User’s Guide Product name and product name 90-Watt descriptors Portable AC Power With Inverter Please read this user’s guide before using your new AC power with inverter.
-
Page 2: Package Contents
Package contents AC Power Car DC Adapter AC Adapter with inverter Quick Start Power Cord Features • Powers your home electrical devices from your vehicle or an airplane • Provides a portable electrical outlet using an internal battery • Charge personal electronics using the built-in USB port •... - Page 3 Connect Power to Charge In a car or airplane: 1. Plug the power cord into the 12V jack on the back of the AC Power. 2. In a car: Plug into the DC adapter, then plug the DC adapter into the car’s power socket. To remove the DC adapter, press and hold...
- Page 4 Power: Lights when the portable AC power turns on Low Battery: Lights when battery is low Charging: Lights red when charging and green when fully charged.
-
Page 5: Connect Device
Battery Notes: • It takes approximately 4 hours (± 1 hour) to fully charge the AC power. • Charge on a fireproof surface away from flammable items or liquids. • Follow the manufacturer’s instructions for charging the product and do not charge longer than recommended. Unplug when AC power is charged. -
Page 6: Turn On Inverter
• If you plug in only one device, the AC device cannot exceed 90W and the USB device cannot exceed 500mA. • Position the portable AC power to allow heat to disperse. Turn on Inverter Press ON/OFF on the back to turn the AC power on and off. Safety Information WARNING! Shock Hazard This AC power generates the same potentially dangerous AC... -
Page 7: Troubleshooting
Troubleshooting If your device does not power up, or the power indicator does not light: Possible Cause Solution Defective device Try another device to see if the first one is defective. plugged into the AC power. Vehicle battery voltage Run the vehicle’s engine to is 10.8V or lower. -
Page 8: Replacing The Fuse
Replacing the Fuse If the fuse has blown, replace it with a 15 amp, 32V Mini Blade-Type fuse (not supplied). Take out the fuse with pliers and insert the new fuse. Caution: Do not use a fuse with a different rating. Doing so can damage your AC power. -
Page 9: Specifications
• Do not use the portable AC power in a positive-grounded vehicle. Check with your mechanic to determine if your vehicle is positive-grounded. • During operation, keep the portable AC power away from materials that may be affected by high temperatures. •... -
Page 10: Fcc Information
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Ignition L.P . may cause interference and void the user’s authority to operate the equipment. -
Page 11: Limited Warranty
Ignition L.P . warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase. IGNITION L.P . MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attribut-... - Page 12 This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. You may contact Ignition L.P . at: Ignition L.P ., 3102 Maple Ave. Suite 450, Dallas, TX 75201 02/09 For product support, call 1-866-315-0426.
