5 MINUTE

I N S T A L L A T I O N

Owner's Manual

5-1-1Programmable

Weekdays-Saturday-Sunday

Models

44273

44279

Form# 44129-01

20120723

Table of Contents

Need help?

Do you have a question about the 44273 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hunter 44273

Page 1 Owner’s Manual Models 44273 5 MINUTE 44279 I N S T A L L A T I O N Form# 44129-01 5-1-1Programmable 20120723 Weekdays-Saturday-Sunday ©2012 Hunter Fan Co.
Page 2: Table Of Contents
Table Of Contents At A Glance Know Your Thermostat � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Setup Setting Day and Time �...
Page 3: Know Your Thermostat
The features section starting on page 28 of this manual will describe these settings. Most settings have been preset for optimal performance. If you need any assistance with installion or setup of your new Hunter Thermostat, please call us, our technical support staff is ready to help! USA: 1-888-830-1326...
Page 4: Setup

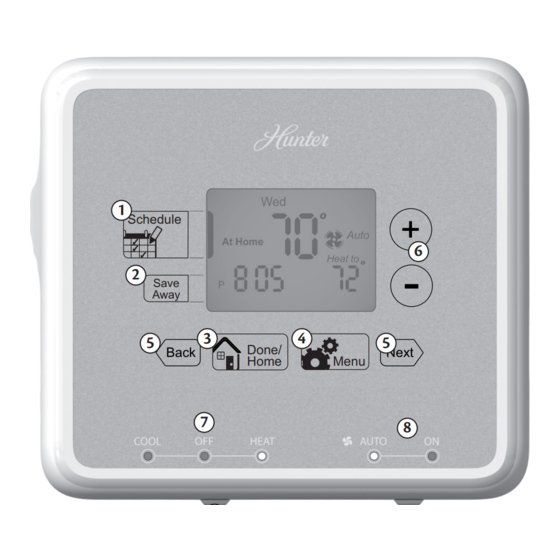

Know Your Thermostat 1. Allows Schedule Setup for altering scheduled programs. 2. Sets the Save Away feature for when you will not be home during a regularly programmed time. 3. Confirms completion of an action or returns you to the Home screen. 4.
Page 6 Know Your Thermostat 1. Holds 2 “AA” Batteries. 2. HE/HG Switch - allows you to set your furnace to Gas/Oil or Electric, based on the type of system you have. 3. Allows your thermostat to operate your HVAC system* properly by indicating the system type that you have.
Page 8 Know Your Thermostat 1. Shows the current day of the week or weekend. 2. Indicates the thermostat is running in schedule mode. 3. Will show when your heat pump or system is reporting a problem to the thermostat. 4. Indicates the current room temperature. 5.
Page 10: Setting Day And Time
Setting Day and Time Once you install the batteries, the thermostat will prompt you to set the current day and time. 1. You will notice that “Mon” will be flashing at the top left of your screen. Use the buttons to move to your current day of the week and press the button to advance to the next step.
Page 11: Setting Day And Time
Setting Day and Time Schedule Schedule 12:00 Save Save Away Away Updated! Done/ Back Next Done/ Back Next Home Menu Menu Home COOL HEAT AUTO COOL HEAT AUTO ©2012 Hunter Fan Company...
Page 12: Scheduling Introduction
Scheduling Introduction Read the scheduling section thoroughly to ensure you understand your scheduling options and which will best fit with your lifestyle. The following notes should help you with scheduling: • The schedule time can be set in 15 minute increments, and remains the same for both Heat and Cool programs.
Page 13: Personal Scheduling Charts
Start Time: Start Time: Heat Temp: Sunday End Time: End Time: Heat Temp: Heat Temp: Cool Temp: Cool Temp: Cool Temp: Note: Use a pencil so these records may be changed at a later time if necessary. ©2012 Hunter Fan Company...
Page 14: Setting Your Schedule
Setting Your Schedule 1. Press the Schedule button to enter Scheduling mode. 2. Use the buttons to select “On” and then to move forward to Next Scheduling. Note: If you do not wish to use the scheduling option on your thermostat, refer to page 20, step 2.
Page 15 Th Fri Mon Tu Th Fri Sa Su Schedule Schedule Away Asleep At Home Save Save Away Away Done/ Done/ Back Next Next Back Next Next Home Menu Home Menu COOL HEAT AUTO COOL HEAT AUTO ©2012 Hunter Fan Company...
Page 16 Setting Your Schedule 5. Use the buttons to adjust the start time on the left of the screen for the period and press . Again you will use the buttons to Next adjust the end time on the right of the screen for this scheduled period. Press again.
Page 17 Schedule Schedule Asleep Asleep At Home At Home Heat to 8:00 4:30 Save Save Away Away Cool to Done/ Done/ Back Next Next Back Next Next Menu Menu Home Home COOL HEAT AUTO COOL HEAT AUTO ©2012 Hunter Fan Company...
Page 18: Temporary Temperature Change
Temporary Temperature Change With Temporary Temperature Change you have the ability to alter the temperature for only the current running schedule. 1. Press the button once to activate the screen, the backlight will come on. 2. Use the buttons again to select a new temperature. 3.
Page 19 Away Away Done/ Done/ Back Next Back Next Menu Menu Home Home COOL HEAT AUTO COOL HEAT AUTO Schedule At Home Heat to 10:05 Save Away Done/ Done/ Back Next Home Home Menu COOL HEAT AUTO ©2012 Hunter Fan Company...
Page 20: Turning Off Scheduling
Turning Off Scheduling To turn off your schedule and have the thermostat permanently set to one temperature: 1. Press the button once. Schedule 2. Use the button to switch to Off and select Done/ Home 3. The screen will show “Updated!” and return you to the home screen. Note: You will notice the black bar on the screen beside the Schedule button is not displayed anymore.
Page 21 Menu Home Home COOL HEAT AUTO COOL HEAT AUTO Schedule Schedule Auto Heat to 7:50 Save Save Away Away Updated! Done/ Done/ Back Next Back Next Home Menu Home Menu COOL HEAT AUTO COOL HEAT AUTO ©2012 Hunter Fan Company...
Page 22: Save Away
Save Away The Save Away feature allows you to set a lower or higher temperature for time you will be away from your home outside of your normal Away schedule. This can include days you will be away for vacation, or a few hours away from your home.
Page 23: Save Away
HEAT AUTO COOL HEAT AUTO Schedule Schedule Auto Heat to Save Save Away Away Updated! Hours Done/ Done/ Done/ Done/ Back Next Back Next Home Home Menu Home Home Menu COOL HEAT AUTO COOL HEAT AUTO ©2012 Hunter Fan Company...
Page 24: Alerts
Alerts This chapter will outline the various alerts the thermostat will report to you and how to respond to them. 1. Low Battery: This icon will appear when your batteries are starting to run low on power and should be changed to avoid system interruptions, (Figure 1) Change the batteries by gripping the sides of the thermostat firmly and pulling straight back, (Figure 1a).
Page 25 Back Next Menu Home COOL HEAT AUTO Schedule Schedule Filter Auto At Home Heat to 7:15 Save Save Away Away Done/ Done/ Back Next Back Next Home Menu Home Menu COOL HEAT AUTO COOL HEAT AUTO ©2012 Hunter Fan Company...
Page 26 Alerts 3. Auxiliary Heat: On multi-stage heat pumps this alert indicates your second stage heat is running. 44129-01 • 07/23/2012...
Page 27 Alerts Schedule Auto At Home Heat to Save Away Done/ Back Next Menu Home COOL HEAT AUTO ©2012 Hunter Fan Company...
Page 28: Menu Options
Menu Options Under your Menu options you have the ability to reset your filter counter, change your day/time settings, and change first and second stage spans. To change each setting, you will need to hit the button Next to move through each feature. To access these options: 1.
Page 29 Save Away Away Done/ Done/ Done/ Back Next Back Next Next Menu Menu Menu Home Home Home COOL HEAT AUTO COOL HEAT AUTO Schedule 12:00 Save Away Done/ Back Next Next Home Menu COOL HEAT AUTO ©2012 Hunter Fan Company...
Page 30 Menu Options 4. The next Menu option is to set your thermostat’s primary span. Use buttons to adjust between 1, 2, or, 3 degrees. Press Next after this has been changed or if no changes are necessary. The span setting regulates when and how long your system will run. The span has been set at the factory to 1 which will allow the system to turn on 1 F (.05...
Page 31 Save Away Away Done/ Done/ Back Next Next Back Next Next Home Menu Home Menu COOL HEAT AUTO COOL HEAT AUTO Schedule temp Save Away Done/ Done/ Back Next Next Home Menu Home COOL HEAT AUTO ©2012 Hunter Fan Company...
Page 32: Additional Features
Additional Features Armchair Programming There is no need to stand at the wall where the thermostat is mounted while programming or changing settings. Simply remove the thermostat from the wall and make the necessary changes in the comfort of a chair.
Page 33: Troubleshooting And Support
3. Make sure the thermostat is set to the proper day. Problem: Auto / Fan does not turn on. Solution: 1. Move HG/HE switch to opposite position. 2. Check the fan setting and make sure that it is not set to off. ©2012 Hunter Fan Company...
Page 34 Troubleshooting and Support Problem: Fan runs continuously. Solution: 1. Check fan setting to see if it is set to on. 2. Move HG/HE switch to opposite position. Problem: Heating or cooling does not turn on or off. Solution: 1. Check the system is in the right mode (heat or cool). 2.
Page 35: Technical Support
Troubleshooting and Support Technical Support If you need any assistance with installation or setup of your new Hunter thermostat, please call us. Our technical support staff is ready to help! USA: 1-888-830-1326 Canada: 1-866-268-1936 Hours of operation are from 7:00 am to 7:00 pm Monday - Friday and 8:00 am to 5:00 pm on Saturday, Central Time.
Page 36 HUNTER THERMOSTAT IS LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE. This warranty is voided if your Hunter Thermostat is not purchased and used in the USA. This warranty excludes and does not cover defects, malfunctions or failures or your Hunter Thermostat which were caused...
Page 37 This warranty neither applies to batteries nor to deterioration of, nor damage to the product caused by the use of faulty batteries. Return your product, along with proof of purchase to Hunter Fan Company Service Department, 7130 Goodlett Farms Pkwy Suite 400, Memphis, TN 38016.
