Summary of Contents for Pyle Pro PMX402M

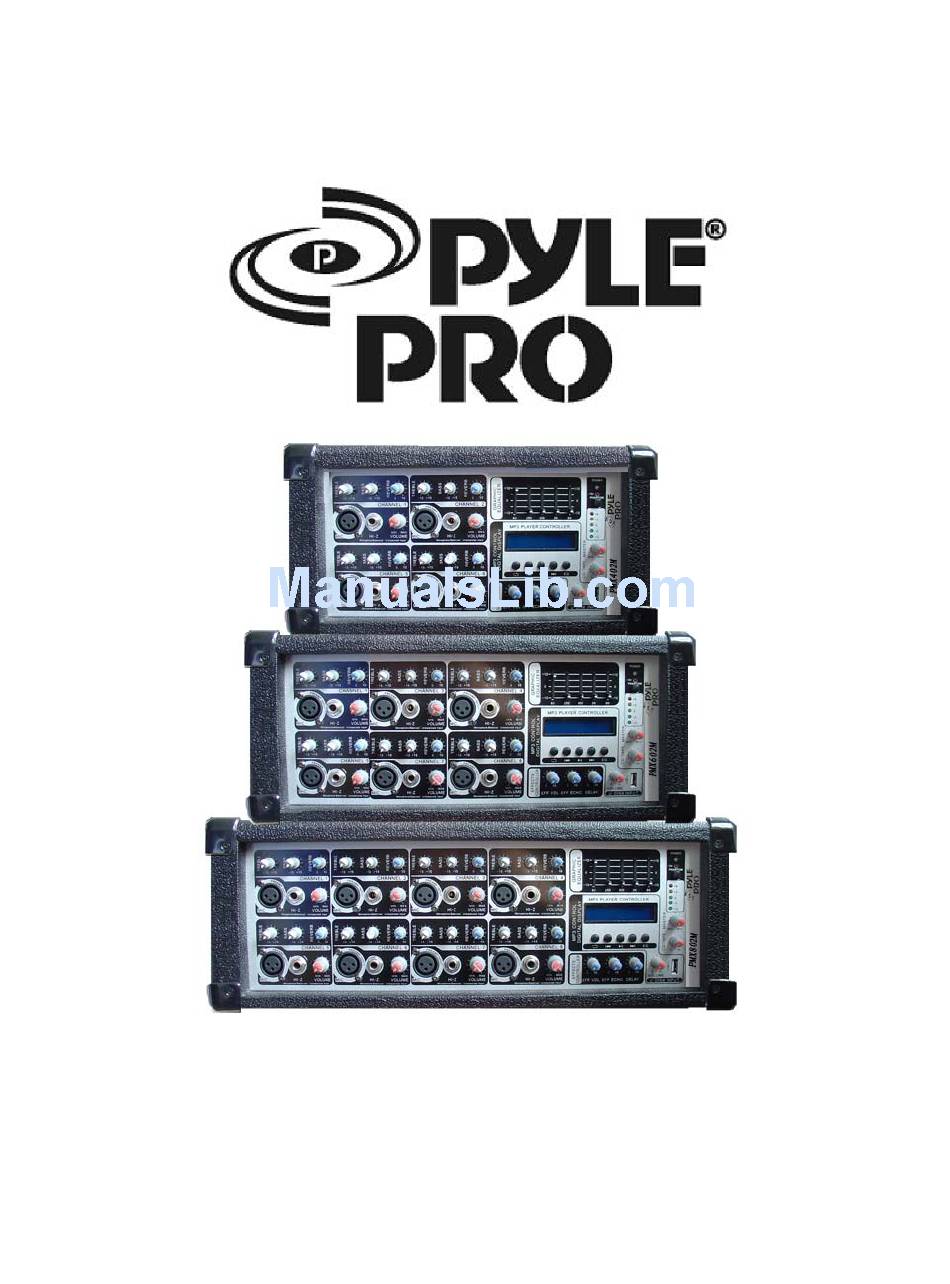

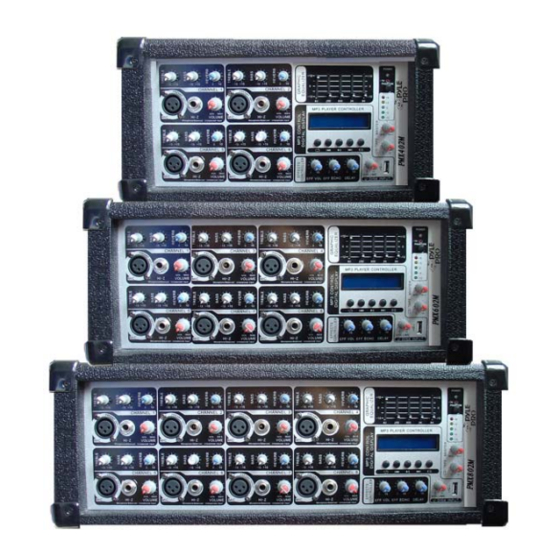

- Page 1 Owner’s Manual PMX402M 4 CHANNELS PMX602M 6 CHANNELS PMX802M 8 CHANNELS www.pyleaudio.com...
- Page 2 FEATURES Balanced microphone inputs, high impedance microphone/line Inputs and Tape/CD inputs. All may be used simultaneously reverb built in with individual control on each channel line out for connection to external amplifiers record out jack for taping performances R.F interference protection on all inputs and outputs. The family of products built-in high-quality, high-effect of MP3 players can play in the USB disk MP3 format songs.
- Page 3 A. FRONT PANEL SECTION FEATURES 1. BALANCE INPUT (MIC) Electronic Balanced inputs acceptable a standard XLR male connector. It is designed to accept a balanced low impedance input signal, Phantom power (15 volts) for condenser microphones is always on and available. It has an input impedance of 1K ohm. The connector is wired as: Pin= shield ;...
- Page 4 7. GRAPHIC EQUALIZER 2×5-band equalizer is provided for tone control over each frequency , and for precise high quality sound final tone control. control main channel record channel.( 60,250,1K,2K,8KHz ) shelving at +/-12dB. (There are three states show) 8. LCD DISPLAY a.
- Page 5 d. Up This is a multi-function control, In the state of play, press the button, Will play the next song; Press the button for a long time, can adjust the LCD backlight brightness. e. EQ This is a conventional keys, press the first choice of a EQ, a total of 11 EQ, are Natural, Rock, Pop, Class, Jazz, Blue, Hall, Bass, Soft, Country, and Opera.
- Page 6 B. BACK PANEL SECTION FEATURES 1. SPEAKER JACK (LEFT/RIGHT) These are 2 conductor 1/4” speaker outputs. Each one is rated at 8 ohm minimum impedance. Total minimum load for the amplifier is 4 ohms. You may connect either 1-4 ohm. 1-8 ohm or 2-8 ohm speaker cabinets.
- Page 7 7. CHANGE-OVER SWITCH This device is used to 110V/220V or 115V/230V voltage conversion. 8. AC POWER CORD/FUSE HOLDERS AC 220～240V 60Hz or 110-120V 60Hz ,Check the power voltage of supply with silk-screen of the panel before connections. When occur a problem on this appliance, the fuse will be cut off, power to prevent form a problem.
- Page 8 Hi-Z Mic/Line 33K ohms Tape playback 10K ohms Input level: Lo-Z Mic -50dB Hi-Z Mic/Line -20dB Tape playback -10dB Rec output level +22dB(max) MODEL NO PMX402M PMX602M PMX802M CHANNELS 4CHANNELS 6CHANNELS 8CHANNELS POWER 400W 600W 800W DIMENSION 15.75’X12.01’X7.87’ 17.32’X12.01’X7.87’ 20.28X12.01’X7.87’...
