Summary of Contents for Pyle Pro PTA3

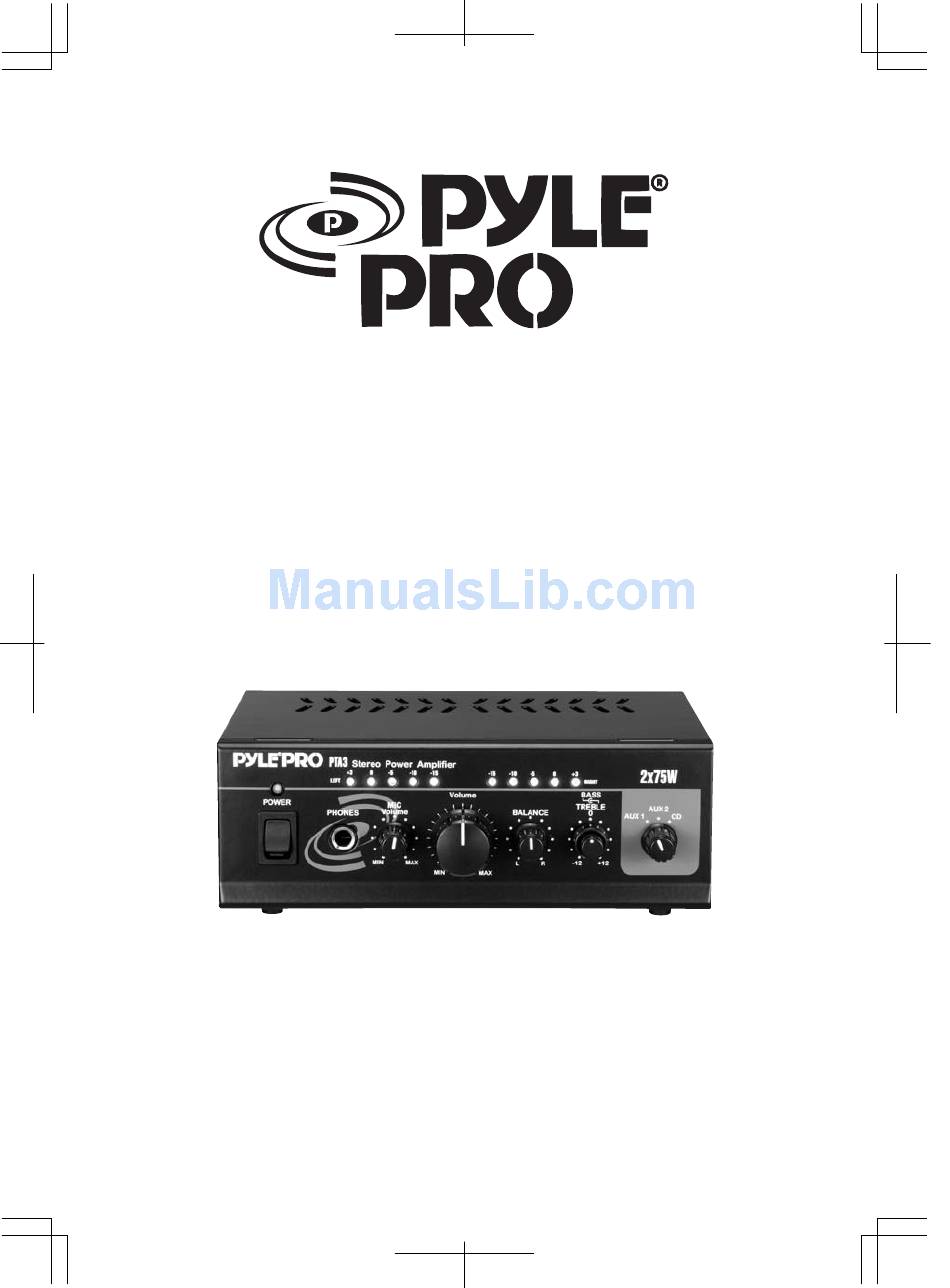

- Page 1 PTA3 2X75 Watt Stereo Power Amplifier www.pyleaudio.com...
- Page 2 It can be used in meeting halls, house, restaurant, schools, stores, or for paging systems. PTA3 features a PAGER-MIXING function that offers the flexibility of using it at paging or musical events. Please read this manual thoroughly before you attempt to set up and use the amplifier.
- Page 3 Features and controls 1. Power ON LED Indicator -Lights to indicate power is turned on. 2. 1/4"PHONE JACK -Accepts headphones with 1/4" plug. 3. MIC VOLUME CONTROL -Lets you adjust the volume of connected MIC to the proper setting. 4. MUSIC VOLUME CONTROL -Lets you adjust the volume of music output from the sources of AUX 1, AUX 2, OR CD.
- Page 4 8. SWITCHABLE MIC PAGER AND MIXING MODES -Set to PAGER, allows a voice to be heard clearly through the microphone by attenuating automatically all the audio input sources. This is good to use when paging the person in office, store, or restaurant. -Set to MIXING, both of the voices from microphone and music will be existed at the same time.
- Page 5 CARING FOR YOUR PYLE PRO AMPLIFIER Your Pyle Pro Amplifier is an example of superior design and craftsmanship. The following suggestions will help you care for your amplifier so you can enjoy years of use : *Keep the amplifier dry. If it gets wet, wipe immediately. *Use the amplifier only in well-ventilated installations.
-
Page 6: Troubleshooting
Connecting two 4-8 ohm speakers in stereo mode. TROUBLE SHOOTING No power The fuse might be blown. No sound Sound source or speakers not connected properly. MUSIC volume control set to minimum. The speaker's wire might be the wrong impedance. The amplifier might has shut down. - Page 7 Limited warranty All PYLE PRO products are carefully constructed and tested before shipment. Units purchased in the USA are warranted to be free of defects in material and workmanship for one (1) year from the date of purchase. This warranty is limited to the original retall purchaser of the amplifier.
-
Page 8: Specifications
SPECIFICATIONS Output power, 2 channels driven 4-OHM, 1 KHz, 1% THD. 4-OHM, 1 KHz, 10% THD. Peak Power Total Harmonic Distortion, 1 KHz Rated Power Input Sensitivity, 1 KHz ,4-ohm Rated Power AUX 1 AUX 2 Signal to Noise Ratio, 1 KHz, 4-ohm Rated Power AUX 1 AUX 2 BASS...
