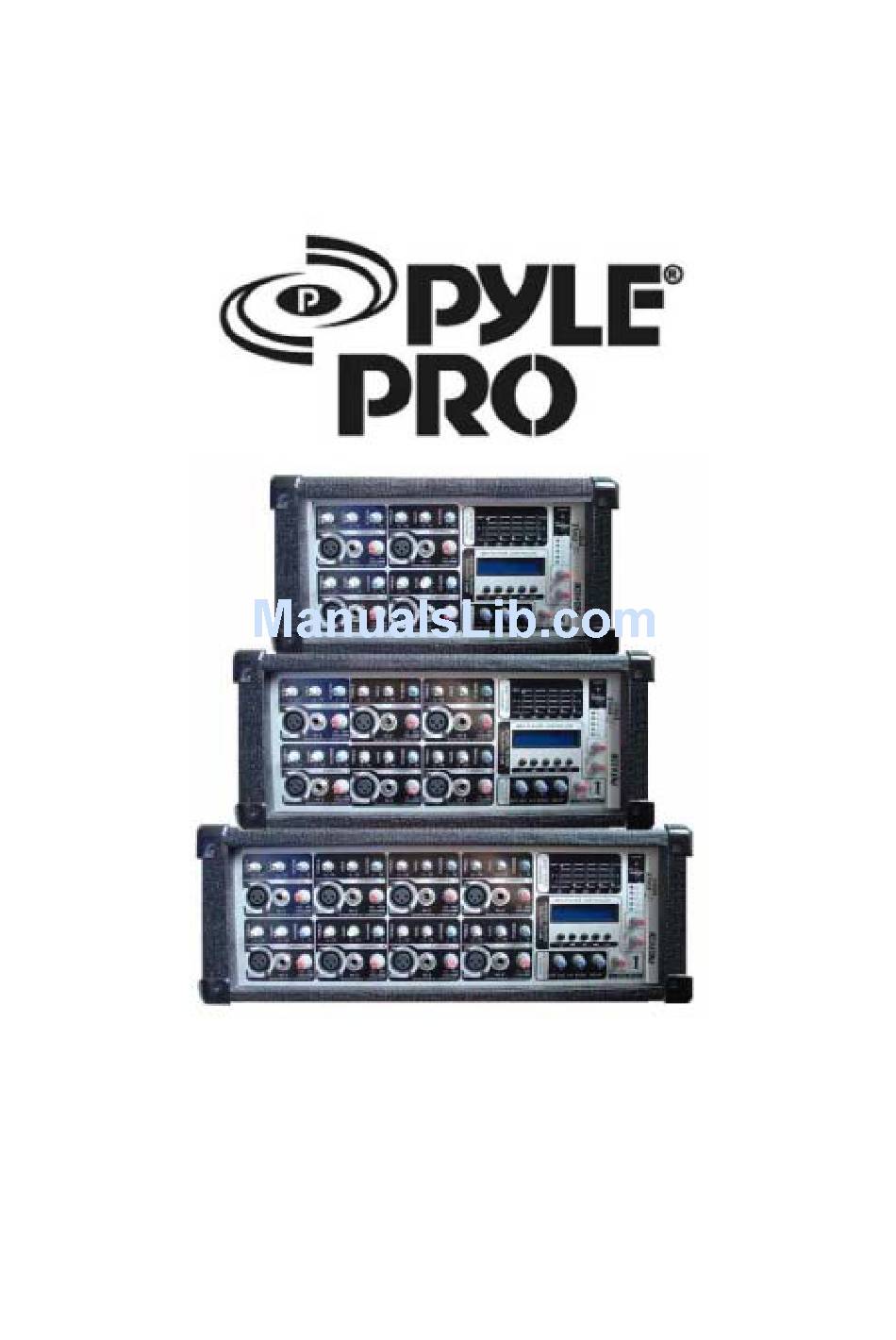

- Page 1 Owner’s Manual PMX402M PMX602M PMX802M www.pyleaudio.com 4 CHANNELS 6 CHANNELS 8 CHANNELS...
-
Page 2: Safety Instructions

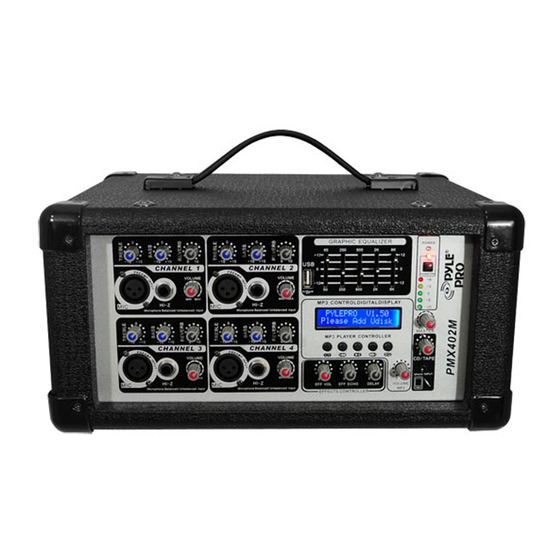

Rugged and easy to operate, PMX402m/602m/802m offers great features and performance at an extremely affordable price and is ideal for many small venue applications. • 4/6 /8 mono Mic inputs with XLR jacks • 4/6/8 ¼” line inputs(CD, Tuner, Tape Deck Etc) •... - Page 3 A. FRONT PANEL SECTION FEATURES 1. BALANCED Mic INPUT Electronic Balanced inputs acceptable a standard XLR male connector. It is designed to accept a balanced low impedance input signal, Phantom power (15 volts) for condenser microphones is always on and available. It has an input impedance of 1K ohm.
-
Page 4: Graphic Equalizer
5. LOW This control gives you up to 15 dB boost or cut at 100Hz and below. This circuit is flat (no boost or cut) at the center detent position. This frequency represents the punch in bass drums, bass guitar, fat synch patches, and some really serious male singers. 6. -
Page 5: Power Led
Up. This is a complex bond, In the state of play, press the button, Will play the next song; Press the button for a long time, can adjust the LCD backlight brightness. EQ. This is a conventional keys, press the first choice of a EQ, a total of 11 EQ, are Natural, Rock, Pop, Class, Jazz, Blue, Hall, Bass, Soft, Country, and Opera. -
Page 6: Speaker Jack
B.BACK PANEL SECTION FEATURES 1. SPEAKER JACK These are 2 conductor 1/4” speaker outputs. Each one is rated at 8 ohm minimum impedance. Total minimum load for the amplifier is 4 ohms. You may connect either 1-4 ohm,1-8 ohm or 2-8 ohm speaker cabinets. Do not below rated minimum impedance. - Page 7 7. CHANGE-OVER SWITCH This device is used to 110V/220V or 115V/230V voltage conversion. 8. AC POWER CORD/FUSE HOLDERS For selecting the proper voltage (115/230AC) to match the power supply in your area. Note: To avoid damage to your unit, always make sure this switch is set to the correct supply voltage.
- Page 8 D. APPENDIX Bandwidth Input Impedance: Input level: MODEL NO PMX402M CH QTY 4CHANNELS POWER 400W DIMENSION 15.75’X12.01’X7.87’ 17.32’X12.01’X7.87’ 20.28X12.01’X7.87’ Specifications: *With USB 2.0 Terminal and LCD *5-Band graphic equalizer *Each channel tone control *Effect control *TAPE input, REC output *Channel tone adjust (high/low+/-15dB) *AUX/TAPE/effect feedback input *Effect send *Master volume control...
