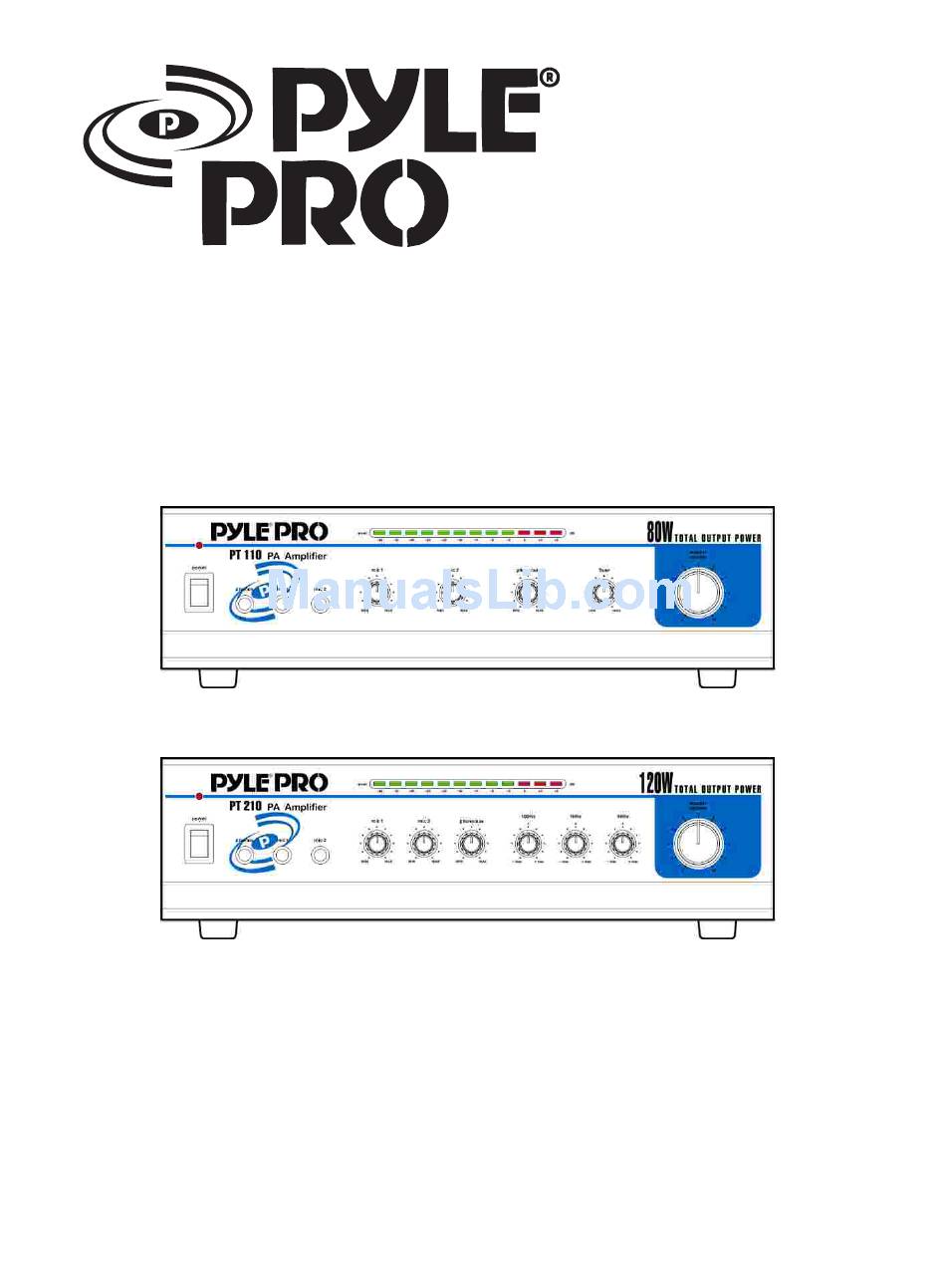

- Page 1 High Performance Professional Audio MODEL:PT110/PT210 PA AMPLIFIER www.pyleaudio.com...
-
Page 2: Features And Controls
INTRODUCTION Your New PYLE PT110/PT210 PA AMPLIFIER gives you the power and versatility you need in a professional sound system. The amplifier's wide frequency response makes it suitable for amplifying music or vocal program material. It can be used for live bands, office paging systems, public announcements, or a variety of other installations. -
Page 3: Power On/Off

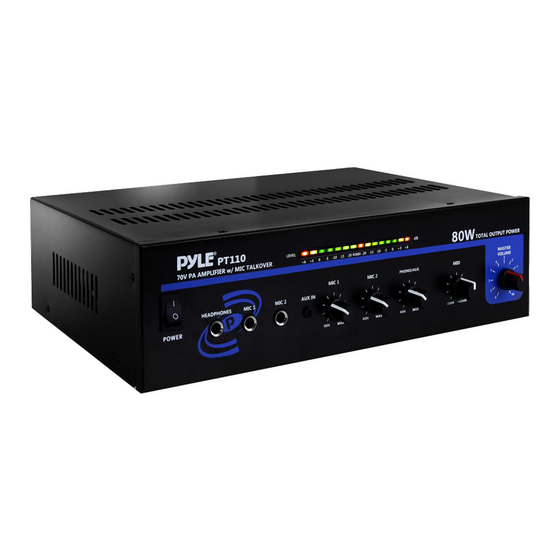

FRONT PANEL - PT110/PT210 1.Power On/Off 2.Phone Jack Lets you connect a pair of stereo headphones for private listening or cueing (monitoring) sound prior to "airing" it. 3.MIC 1 & MIC 2 Jack Allows you to connect up to two 6.35mm type microphone. -
Page 4: Input Connections
Lets you select the input source you want to connect to the amplifier. 15.MIX BUS Jack Allows you to connect another PT110/PT210 to this jack to double the size of your PA system. 16.Push-Terminal Connectors Let you easily connect speaker wires directly to the amplifiers. -
Page 5: Connecting Microphones
Connecting microphones The MIC 1 and MIC 2 jacks permit you to connect two microphones with 6.35mm plug. Connecting a CD or tape player, or tuner In this Situation, set the PHONO and AUX/CD SELECTOR switch to the AUX/CD Connecting a turntable In this Situation, set the PHONO and AUX/CD SELECTOR switch to the PHONO. - Page 6 PARALLEL hook up. Simply be sure you have properly calculated the total impedance, and connect the (+) speaker circuit wire to the proper amp terminal. For example, if you use a SERIES PAIR of 8-Ohms speakers (the total impedance is 16 ohms) and a...
-
Page 7: Using Headphones
After making all other connections, set the POWER switch to OFF position. Then connect the power cord to a standard AC outlet. Connecting to 4A/12V DC power (PT110) You can power the amplifier from your vehicle's 12-volt battery. Connect the supplied DC power cable's barrel plug to... -
Page 8: Specifications
CAUTION:Setting output level too high can overdrive the amplifier, causing permanent damage. Using the MIX BUS jack You can connect another PT110/PT210 to this jack to double the size of your PA system. This lets you use up to four microphones and two turntables (or two auxiliaryies) sound souces.
