up, the IMS9000 restores the OCS-POS connection allowing normal operation to
resume.

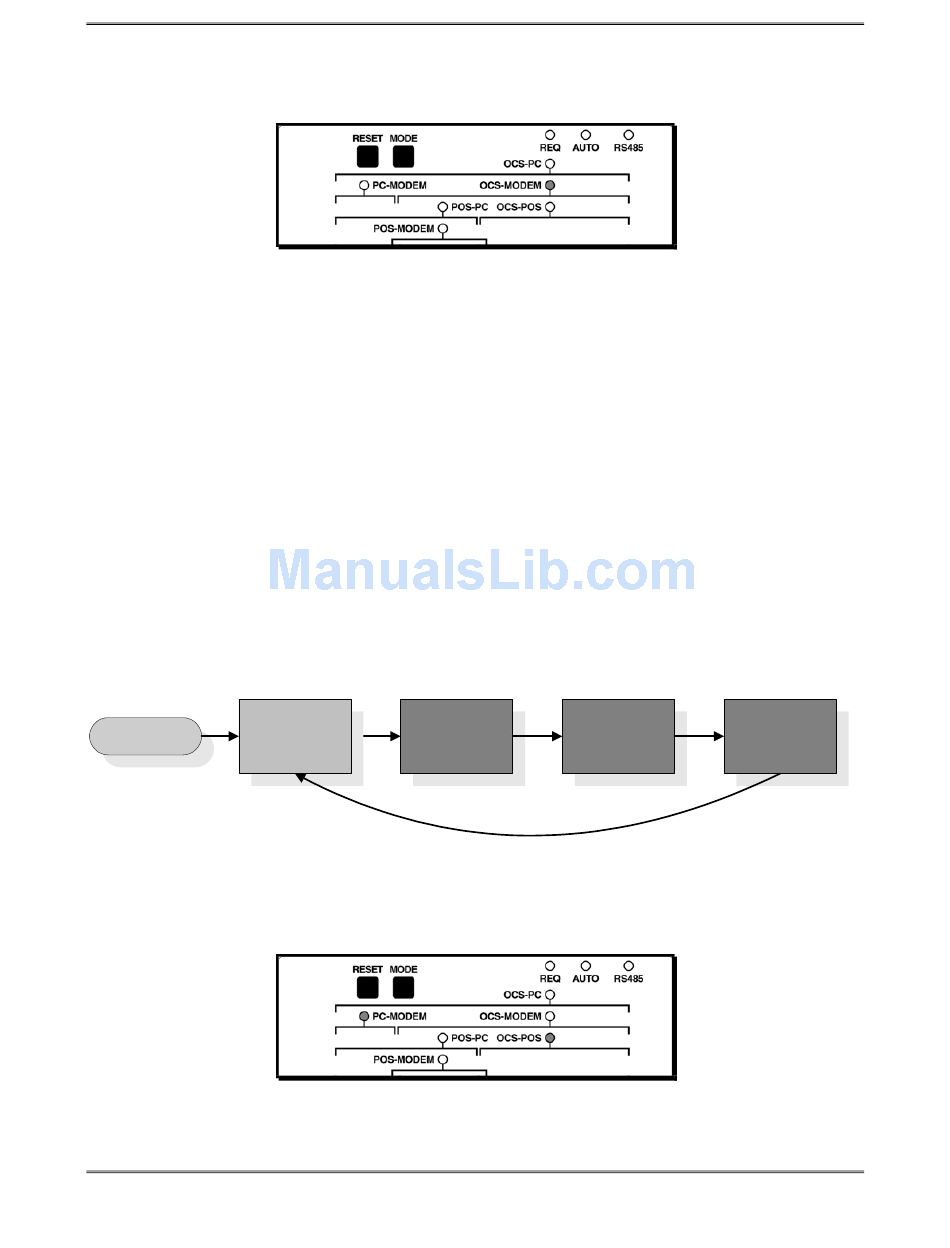

Figure 6 - Modem/OCS Connection Indicators (Automatic Mode)

PC Connection Request

In Automatic mode, a local back office or laptop PC can make a request for a direct
connection to the OCS. The remote PC must be connected to the IMS9000 PC port
connector via a RS232 serial data cable and be running Delphi's OCS Configuration
Tool software to be properly authenticated. When the authentication process is
complete, the OCS-POS connection is broken and the OCS-PC connection is
established. The local PC can then perform OCS maintenance functions such as
changing dayparts, downloading graphic and video files, upgrading system software,
etc. When the local PC connection is disconnected, the IMS9000 restores the OCS-
POS connection allowing normal operation to resume.

Manual Mode

The IMS9000 features a MODE switch that allows you to manually change the current
mode of operation. Whenever the MODE switch button is pushed, the IMS9000 will
cycle through the following stages.
Manual Mode 1 Manual Mode 2 Manual Mode 3
Auto Mode
OCS ⇔ POS OCS ⇔ MODEM OCS ⇔ PC
Reset / Power Up
OCS ⇔ POS
PC ⇔ MODEM POS ⇔ PC POS ⇔ MODEM
Manual Mode 1 – OCS ↔ POS, PC ↔ MODEM
Communication is established between the OCS and the Point Of Sale (POS) terminal
as well as between the PC and the MODEM port.

Figure 7 - Manual Mode 1 Indicators
