Central thermostat less volume control trim kit

Advertisement

Quick Links

CENTRAL THERMOSTAT
LESS VOLUME CONTROL
TRIM KIT
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.

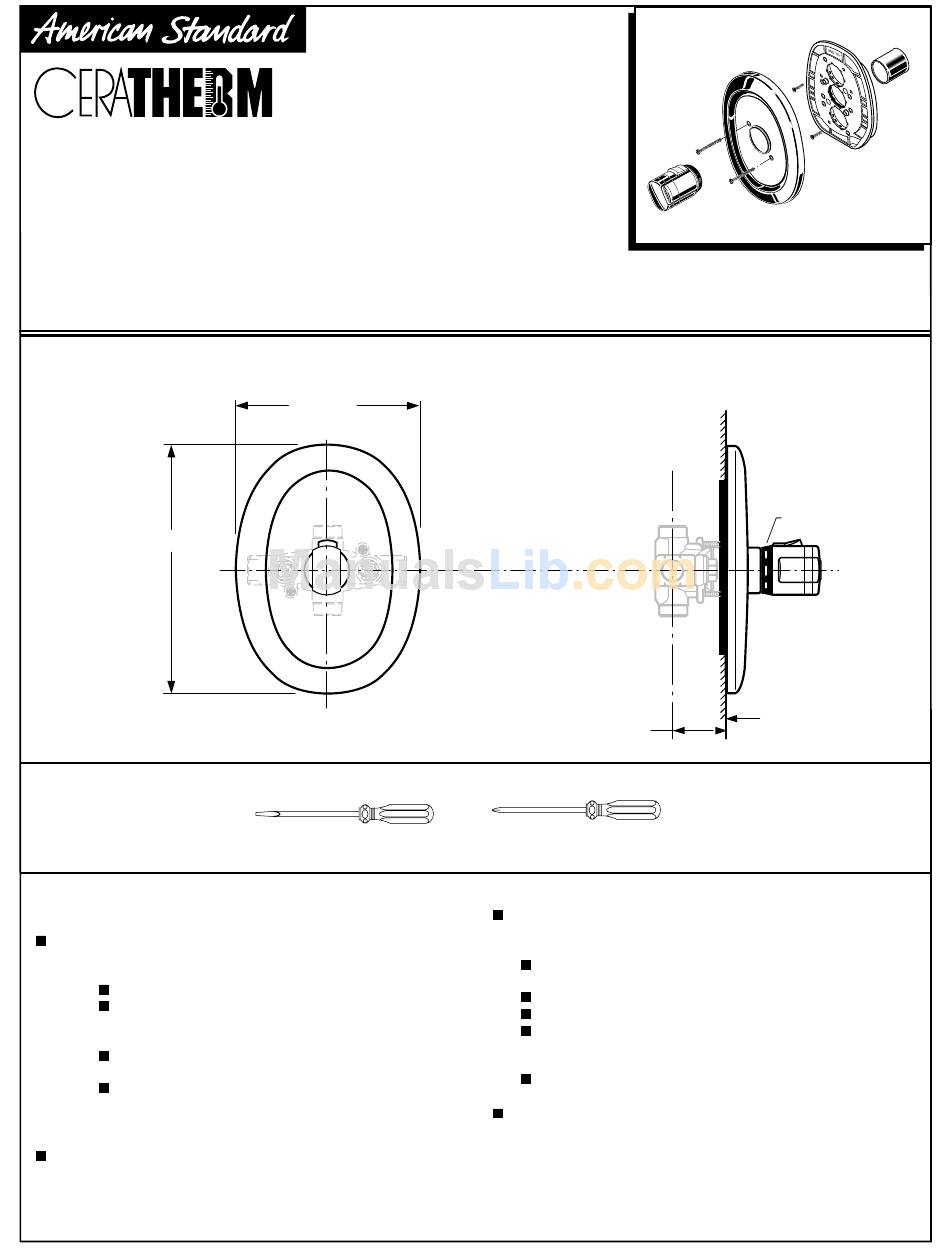

ROUGHING-IN DIMENSIONS
9-1/8"
Recommended Tools
CARE INSTRUCTIONS:
To keep your new faucet looking new, please follow
these simple care instructions:
DO:
Simply rinse the faucet clean with clear water.
Dry the faucet with a soft cotton cloth.
DO NOT:
Do not use any abrasive cleaners, cloths, or
paper towels.
Do not use any cleaning agents containing
acids, polish abrasives, or harsh cleaners or
soaps.
Regular and routine cleaning will reduce the need for
heavy cleaning and polishing. If heavy cleaning is
required, the following procedures are recommended:
Installation
Instructions
6-11/16"
Flat Blade Screwdriver
T050110
T050120
Certified to comply with ANSI A112.18.1M
ASSE 1016
C L
1-11/16" to 2-1/2"
Phillips Screwdriver
Remove as much surface dirt and film using clear
water and soft cotton cloth (as described above).
Use any of the following to remove tough surface
film and build-up:
Mild liquid detergents
Clear ammonia free liquid glass cleaners
Non-acidic, non-abrasive gentle liquid or fully
dissolved powder cleansers mixed according to
manufacturers directions.
Non-abrasive liquid polishers
Once clean, rinse faucet again with clear water to
thoroughly remove cleaner or polish and blot dry with
a soft cotton cloth.
Failure to follow these care instructions may
damage the Faucet's finish.
M 9 6 8 2 6 5
100
FINISHED
WALL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ceratherm T050110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for American Standard Ceratherm T050110

  • Page 1 Regular and routine cleaning will reduce the need for heavy cleaning and polishing. If heavy cleaning is required, the following procedures are recommended: Installation Instructions T050110 T050120 6-11/16" 1-11/16" to 2-1/2" Flat Blade Screwdriver Remove as much surface dirt and film using clear water and soft cotton cloth (as described above).
  • Page 2 TRIM INSTALLATION Push CAP (1) over the O-RING SEAL (2). Push ESCUTCHEON HOLDER (3) with lightly greased O-RING SEAL (4) over CAP (1). Push on ESCUTCHEON (5) and attach with (60mm) SCREWS (6) to valve body. HANDLE INSTALLATION Push TEMPERATURE-CONTROL KNOB (1) (with the red stop on top) onto KNOB MOUNT (2).
  • Page 3 © Ame ric an St an d ar d I n c. 2003 918327-0070A ESCUTCHEON CARRIER SCREWS 953947-YYY0A ESCUTCHEON 913981-0070A SEAL 918378-YYY0A ESCUTCHEON SCREWS CENTRAL THERMOSTAT LESS VOLUME CONTROL TRIM KIT MODEL NUMBERS T050110 T050120 953976-YYY0A TEMPERATURE CONTROL HANDLE BASE 909750-YYY0A HANDLE RING 918416-0070A SCREW 907065-YYY0A HANDLE CAP 060441-YYY0A TEMPERATURE CONTROL HANDLE Replace the "YYY"...
  • Page 4: Roughing-In Dimensions

    ROUGH VALVE KIT CENTRAL THERMOSTAT LESS VOLUME CONTROL Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. ROUGHING-IN DIMENSIONS 1/2" NPT OUTLETS FOR R510 3/4"...
  • Page 5: Temperature Calibration

    ROUGHING-IN THE VALVE Turn off hot and cold water CAUTION supplies before beginning. Prepare water supplies per ROUGHING-IN DIMENSIONS. Make sure the finished wall is between the minimum 1-11/16" and maximum 2-1/2" rough dimension. Install VALVE (1) at indicated height and depth. Make sure the "TOP" marking on the PLASTER For support, use pipe BRACES (3) secured to wooden braces.
  • Page 6: Model Numbers

    953951-0070A CHECK STOP R510 (HOT RED) A953972-0070A CHECK STOP R530 (HOT RED) 9 6 3 4 3 4 - 0 0 2 0 A D E E P R O U G H K I T S O L D S E P A R A T E L Y HOT LINE FOR HELP For toll-free information and answers to your questions, call: 1-800 442-1902...
