American Standard Copeland T005740 Installation Instructions Manual

COPELAND

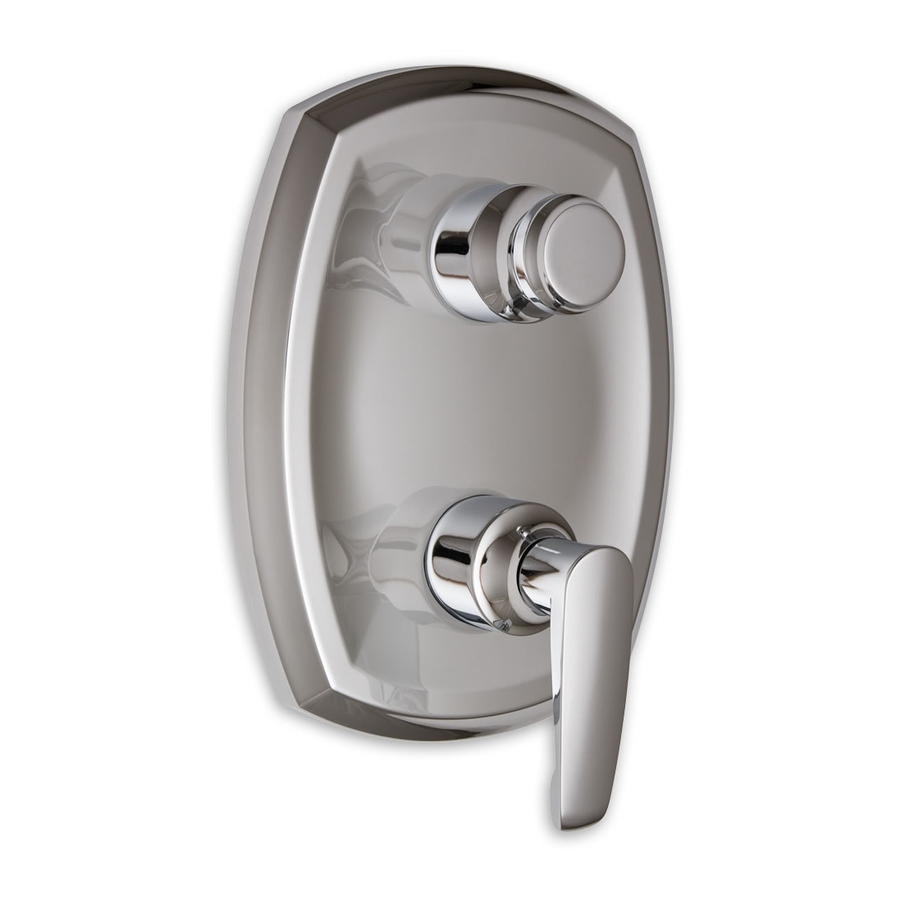

CENTRAL THERMOSTAT
WITH VOLUME CONTROL
TRIM KIT
Thank you for selecting American-Standard...the
benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
ROUGHING-IN DIMENSIONS
220mm
(8-5/8)
R520
1/2" NPT INLETS
or
R540
3/4" NPT INLETS
Recommended Tools
CARE INSTRUCTIONS:
To keep your new faucet looking new, please follow
these simple care instructions:
DO:
Simply rinse the faucet clean with clear water.
Dry the faucet with a soft cotton cloth.
DO NOT:
Do not use any abrasive cleaners, cloths, or
paper towels.
Do not use any cleaning agents containing
acids, polish abrasives, or harsh cleaners or
soaps.
Regular and routine cleaning will reduce the need for
heavy cleaning and polishing. If heavy cleaning is
required, the following procedures are recommended:
Installation
Instructions
T005740
170mm
(6-3/4)
NOTE: FITTING
150mm
MUST BE INSTALLED
(6)
WITH VOLUME CONTROL
ON TOP.
Flat Blade Screwdriver
Certified to comply with ANSI A112.18.1M
ASSE 1016
186mm
(7-3/8)
25mm
(1)
Phillips Screwdriver
Remove as much surface dirt and film using clear
water and soft cotton cloth (as described above).
Use any of the following to remove tough surface
film and build-up:
Mild liquid detergents
Clear ammonia free liquid glass cleaners
Non-acidic, non-abrasive gentle liquid or fully
dissolved powder cleansers mixed according to
manufacturers directions.
Non-abrasive liquid polishers
Once clean, rinse faucet again with clear water to
thoroughly remove cleaner or polish and blot dry with
a soft cotton cloth.
Failure to follow these care instructions may
damage the Faucet's finish.
M 9 6 8 0 1 5
100mm
(3-7/8)
FINISHED
WALL
48mm to 68mm
(2 to 2-5/8)
