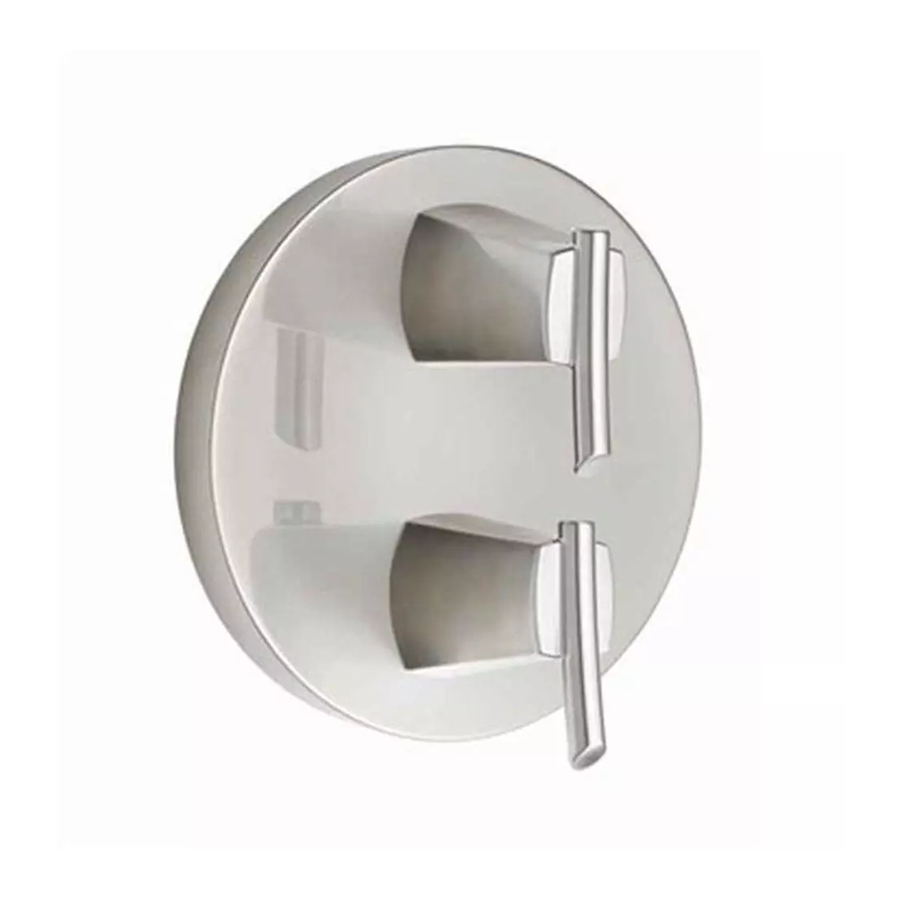

GREEN TEA
CENTRAL THERMOSTAT
WITH VOLUME CONTROL
TRIM KIT
Thank you for selecting American-Standard...the
benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly
please read these instructions carefully before you begin.

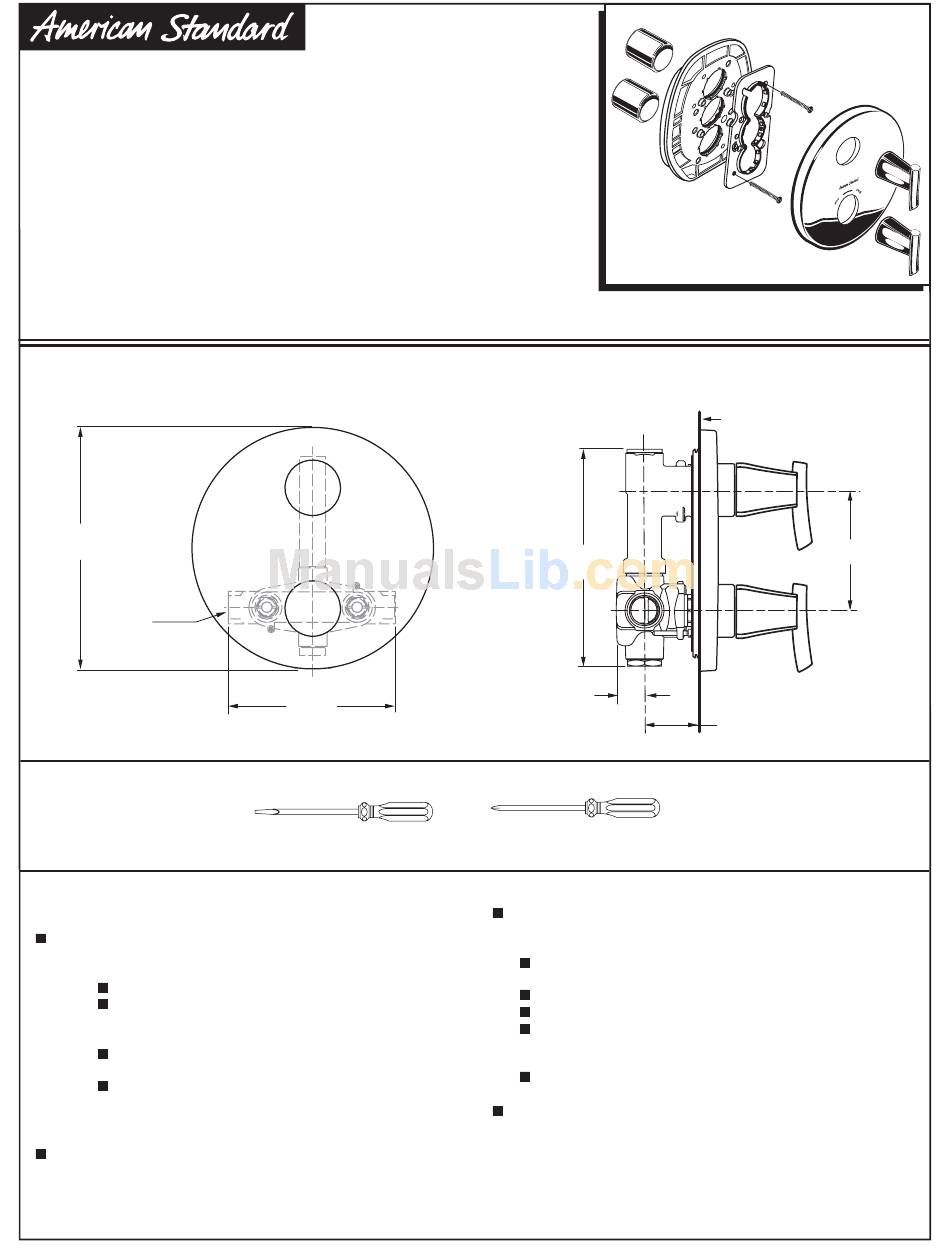

ROUGHING-IN DIMENSIONS
200mm
(7-7/8)
R520
1/2" NPT INLETS
or
R540
3/4" NPT INLETS
Recommended Tools
CARE INSTRUCTIONS:
To keep your new faucet looking new, please follow
these simple care instructions:
DO:
Simply rinse the faucet clean with clear water.
Dry the faucet with a soft cotton cloth.
DO NOT:
Do not use any abrasive cleaners, cloths, or
paper towels.
Do not use any cleaning agents containing
acids, polish abrasives, or harsh cleaners or
soaps.
Regular and routine cleaning will reduce the need for
heavy cleaning and polishing. If heavy cleaning is
required, the following procedures are recommended:
Installation
Instructions
T010.740
NOTE: FITTING
150mm
MUST BE INSTALLED
(6)
WITH VOLUME CONTROL
ON TOP.
Flat Blade Screwdriver
Certified to comply with ANSI A112.18.1M
ASSE 1016
186mm
(7-3/8)
25mm
(1)
Phillips Screwdriver
Remove as much surface dirt and film using clear
water and soft cotton cloth
Use any of the following to remove tough surface
film and build-up:
Mild liquid detergents
Clear ammonia free liquid glass cleaners
Non-acidic, non-abrasive gentle liquid or fully
dissolved powder cleansers mixed according to
manufacturers directions.
Non-abrasive liquid polishers
Once clean, rinse faucet again with clear water to
thoroughly remove cleaner or polish and blot dry with
a soft cotton cloth.
Failure to follow these care instructions may
damage the Faucet's finish.
M 9 6 8 0 2 2
FINISHED
WALL
100mm
(3-7/8)
48mm to 68mm
(2 to 2-5/8)
.
(as described above)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for American Standard T010.740
Summary of Contents for American Standard T010.740
- Page 1 Regular and routine cleaning will reduce the need for heavy cleaning and polishing. If heavy cleaning is required, the following procedures are recommended: Installation Instructions T010.740 NOTE: FITTING 150mm MUST BE INSTALLED WITH VOLUME CONTROL ON TOP. Flat Blade Screwdriver Remove as much surface dirt and film using clear...
-
Page 2: Trim Installation
TRIM INSTALLATION Remove PLASTER GUARD (1) if attached. Push CAPS (2 & 2a) as shown onto CONTROL VALVES (3). Push ESCUTCHEON HOLDER (4) with lightly greased O-RING SEALS (5) over CAPS (2, 2a). Attach the FIXATION PLATE (7) to the ESCUTCHEON HOLDER (4) with the two SCREWS (6) provided. -
Page 3: Temperature Adjustment
TEMPERATURE ADJUSTMENT Loosen SET SCREW (1) with HEX WRENCH (2). Pull off HANDLE (3). Check that arrow marking B points to the 12 o'clock position. If not, push the BLACK CLAMP on the SECURING RING to the right, pull off KNOB MOUNT (4) and reinstall KNOB MOUNT (4) with arrow "B" 12 o'clock position. See Figure 1. SET HOT LIMIT STOP The maximum mixed water temperature is set at 109˚F at the factory. - Page 4 © A S A m e r i c a , I n c . 2 0 0 8 WITH VOLUME CONTROL A924335-0070A FIXATION PLATE 023774-0070A SCREWS M918038-0070A GREEN TEA CENTRAL THERMOSTAT TRIM KIT MODEL NUMBER T010.740 M907712-YYY0A ESCUTCHEON M918318-0070A HANDLE SCREW ADAPTER M918990-0070A SELF TAPPING SCREW M962731-YYY0A HANDLE KIT M 9 6 8 0 2 2...
-
Page 5: Installation Directives
GREEN TEA THERMOSTAT CENTRAL AVEC RÉGLAGE DE DÉBIT JEU DE GARNITURE Nous vous remercions d'avoir choisi American Standard… synonyme de qualité supérieure depuis plus de 100 ans. Pour que l’installation se déroule sans problème, veuillez lire attentivement ces instructions avant de commencer. - Page 6 INSTALLATION DE LA GARNITURE Enlever les PROTECTIONS DE PLÂTRE (1), si fixées. Pousser les CAPUCHONS (2 et 2a) comme illustré sur les VANNES DE RÉGLAGE (3). Pousser le SUPPORT DE ROSACE (4) sur les CAPUCHONS (2 et 2a) les JOINTS TORIQUES (5) doivent être légèrement graissés.
- Page 7 RÉGLAGE DE LA TEMPÉRATURE Desserrer la VIS DE FIXATION (1) avec une CLÉ À SIX PANS (2). Tirer la POIGNÉE (3). Vérifier que la flèche indiquant un B pointe vers 12 heures. Dans le cas contraire, pousser la BRIDE NOIRE sur l’ANNEAU DE FIXATION vers la droite, tirer le SUPPORT DE POIGNÉE (4) et le reposer avec la flèche «...
- Page 8 é p o s é e s d ’ A m e r i c a n S t a n d a r d I n c . © A S A m e r i c a , I n c . 2 0 0 8 A924335-0070A PLAQUE DE FIXATION 023774-YYY0A VIS DU SUPPORT À ROSACE GREEN TEA THERMOSTAT CENTRAL AVEC RÉGLAGE DE DÉBIT JEU DE GARNITURE NUMÉRO DU MODÈLE T010.740 M907712-YYY0A ROSACE M918318-0070A VIS DE LA POIGNÉE M918038-0070A ADAPTATEUR M918990-0070A VIS À AUTO-FILETAGE M962731-YYY0A TROUSSE DE LA POIGNÉE...
-
Page 9: Instrucciones De Instalación
GREEN TEA TERMOSTATO CENTRAL CON CONTROL DE VOLUMEN JUEGO DE MOLDURA Gracias por elegir American Standard, el referente de calidad por más de 100 años. Para asegurarse de realizar la instalación sin inconvenientes, lea cuidadosamente estas instrucciones antes de comenzar. - Page 10 INSTALACIÓN DE LA MOLDURA Retire el PROTECTOR DE YESO (1) si se incluye. Presione las TAPAS (2 & 2a) como se muestra sobre las VÁLVULAS DE CONTROL (3). Coloar la base de la placa (4) con los empaques de anillo O-ring (5) ligeramente enqrasados sobre las (2, 2a) tapas.
- Page 11 AJUSTE DE TEMPERATURA Afloje el TORNILLO DE AJUSTE (1) con la LLAVE HEXAGONAL (2).Saque la MANIJA (3). Compruebe que la flecha con la marca B apunte a la posición de las 12 en punto.Si no lo hace, presione la GRAPA NEGRA del ANILLO DE SEGURIDAD hacia la derecha, saque el MONTAJE DE PERILLA (4) y vuelva a instalarlo con la flecha "B"...
- Page 12 FIXATION PLATE 023774-YYY0A TORNILLOS DEL SUJETADOR DEL CHAPETÓN M918038-0070A TORNILLO AUTOROSCANTE GREEN TEA TERMOSTATO CENTRAL JUEGO DE MOLDURA NÚMERO DE MODELO T010.740 M907712-YYY0A CHAPETÓN M918318-0070A TORNILLO DE MANIJA ADAPTADOR M918990-0070A M962731-YYY0A JUEGO DE MANIJA M 9 6 8 0 2 2...
