3/4" classic thermostat trim kit with separate volume control

Advertisement

3/4" CLASSIC THERMOSTAT TRIM KIT
with SEPARATE VOLUME CONTROL
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.

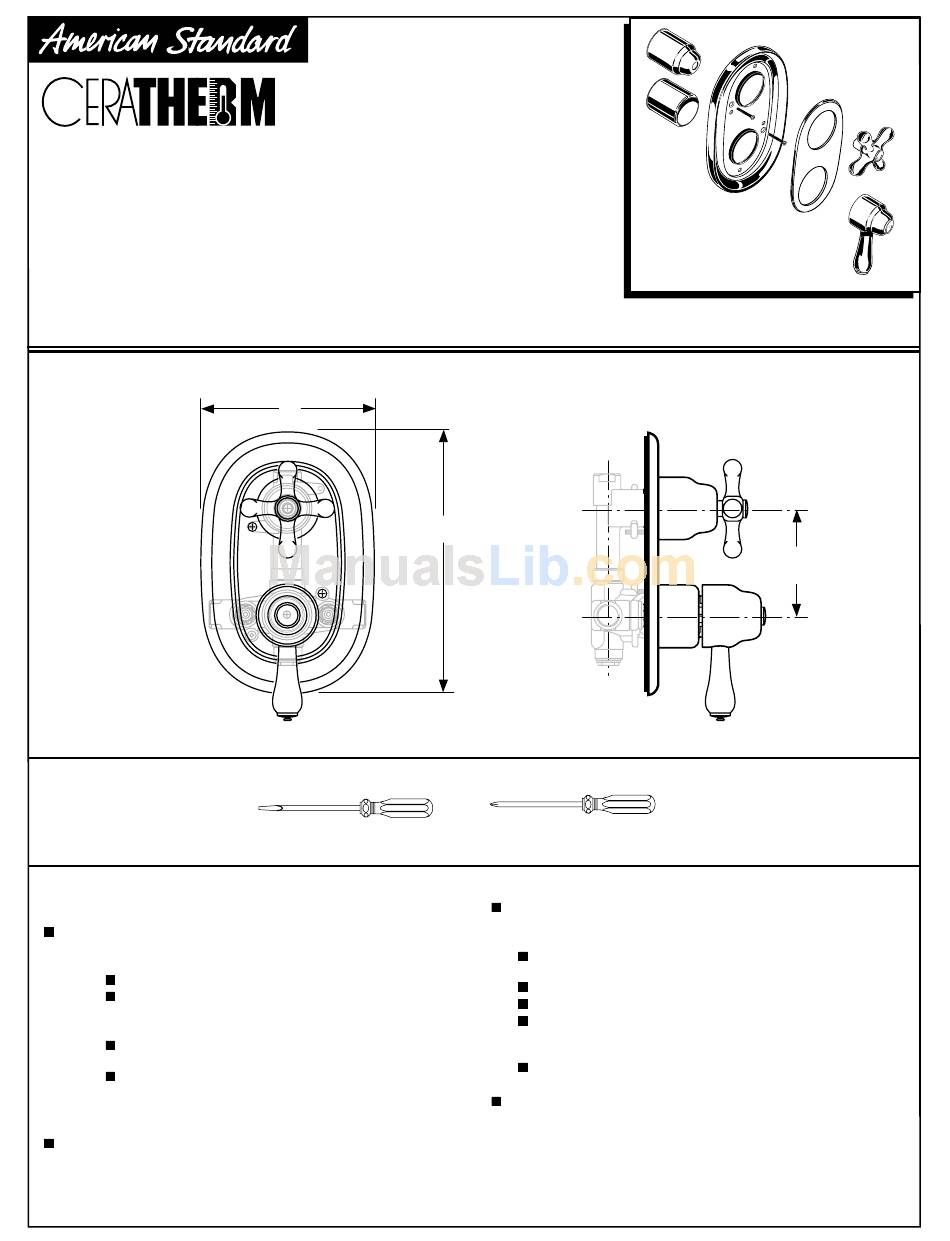

ROUGHING-IN DIMENSIONS
Recommended Tools
CARE INSTRUCTIONS:
To keep your new faucet looking new, please follow
these simple care instructions:
DO:
Simply rinse the faucet clean with clear water.
Dry the faucet with a soft cotton cloth.
DO NOT:
Do not use any abrasive cleaners, cloths, or
paper towels.
Do not use any cleaning agents containing
acids, polish abrasives, or harsh cleaners or
soaps.
Regular and routine cleaning will reduce the need for
heavy cleaning and polishing. If heavy cleaning is
required, the following procedures are recommended:
Installation
Instructions
6
9-1/2"
Flat Blade Screwdriver
T050.541
Certified to comply with ANSI A112.18.1M
ASSE 1016
Phillips Screwdriver
Remove as much surface dirt and film using clear
water and soft cotton cloth (as described above).
Use any of the following to remove tough surface
film and build-up:
Mild liquid detergents
Clear ammonia free liquid glass cleaners
Non-acidic, non-abrasive gentle liquid or fully
dissolved powder cleansers mixed according to
manufacturers directions.
Non-abrasive liquid polishers
Once clean, rinse faucet again with clear water to
thoroughly remove cleaner or polish and blot dry with
a soft cotton cloth.
Failure to follow these care instructions may
damage the Faucet's finish.
M 9 6 8 4 1 9 R E V 1 . 1
4"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ceratherm T050.541 and is the answer not in the manual?

Questions and answers

Summary of Contents for American Standard Ceratherm T050.541

  • Page 1 3/4" CLASSIC THERMOSTAT TRIM KIT with SEPARATE VOLUME CONTROL Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. ROUGHING-IN DIMENSIONS Recommended Tools Flat Blade Screwdriver CARE INSTRUCTIONS: To keep your new faucet looking new, please follow...
  • Page 2: Trim Installation

    TRIM INSTALLATION Remove PLASTER GUARD (1). Remove HANDLE SCREW and ADAPTER (7) from rough valve. Push CAPS (2 & 3) as shown onto CONTROL VALVES (4). Push ESCUTCHEON (5) onto CAPS (2 & 3) and attach with (60mm) SCREWS (6) to valve. Push COVER PLATE (7) onto CAPS (2 &...
  • Page 3: Temperature Adjustment

    TEMPERATURE ADJUSTMENT Pull out INDEX BUTTON (1) and remove LEVER HANDLE SCREW (2). Pull off LEVER HANDLE ASSEMBLY (3). Check that arrow marking B points to the 3 o'clock position. If not, push the BLACK CLAMP on the SECURING RING to the right, pull off KNOB MOUNT (4) and reinstall KNOB MOUNT (4) with arrow "B"...
  • Page 4 907090-YYY0A TEMPERATURE CAP HOT LINE FOR HELP For toll-free information and answers to your questions, call: 1-800 442-1902 Weekdays 8:00 a.m. to 8:00 p.m. EST IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093) Weekdays 8:00 a.m. to 7:00 p.m. EST Pr oduct n ame s l i s te d h e re i n a r e t r ad ema rks of A merican St an dar d Inc. ©...
  • Page 5: Roughing-In Dimensions

    CENTRAL THERMOSTAT WITH VOLUME CONTROL Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. ROUGHING-IN DIMENSIONS CONNECTIONS ARE: 1/2" NPT 3-15/16 1/2" NPT INLET THERMOSTATIC BATH/ THERMOSTATIC SHOWER INSTALLATION...
  • Page 6 ROUGHING-IN THE VALVE Prepare water supplies per ROUGHING-IN DIMENSIONS. Make sure the finished wall is between the minimum and maximum rough dimension. Install VALVE at indicated height and depth. Make sure the "TOP" marking on the PLASTER GUARD is up. Connect the hot and cold water supplies.
  • Page 7 953960-0070A THERMOSTAT CARTRIDGE 953951-0070A CHECK STOP (HOT RED) 9 6 3 4 3 4 - Y Y Y 0 A D E E P R O U G H K I T ( S O L D S E PA R AT E LY ) HOT LINE FOR HELP For toll-free information and answers to your questions, call: 1-800 442-1902...
  • Page 8 3/4" CENTRAL THERMOSTAT WITH VOLUME CONTROL Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. ROUGHING-IN DIMENSIONS CONNECTIONS ARE: 3/4" NPT 3-15/16 3/4"...
  • Page 9 ROUGHING-IN THE VALVE Prepare water supplies per ROUGHING-IN DIMENSIONS. Make sure the finished wall is between the minimum and maximum rough dimension. Install VALVE at indicated height and depth. Make sure the "TOP" marking on the PLASTER GUARD is up. Connect the hot and cold water supplies.
  • Page 10 A953972-0070A CHECK STOP (HOT RED) 9 6 3 4 3 4 - Y Y Y 0 A D E E P R O U G H K I T ( S O L D S E PA R AT E LY ) HOT LINE FOR HELP For toll-free information and answers to your questions, call: 1-800 442-1902...
